700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance
700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance
Specifications
Brand Name :
ASSUN
Model Number :
AM-BK3531LE-2405
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Static friction torque :
0.5 N.M
Rated voltage :
24 V
Power :
5.0 W
Temp rating :
120 ℃
Maximum speed :
8000 rpm
Moment of inertia :
28.44 gcm²
Weight :
132.8 g
Description

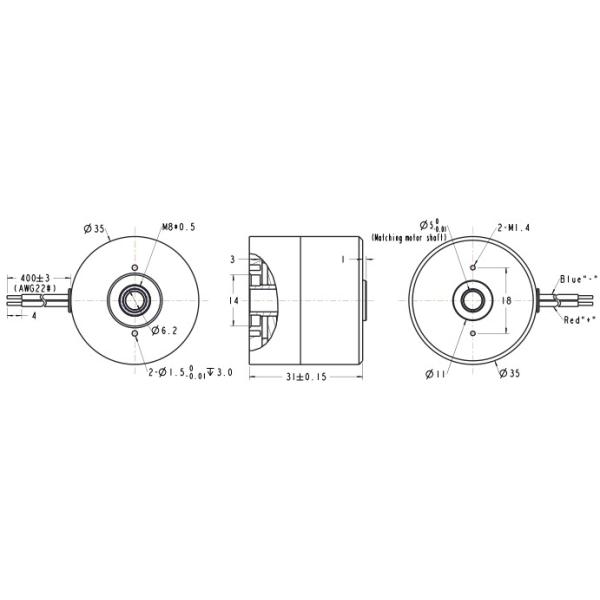

Motor Brake,Power off Brake.Electromagnetic Brake,Mechanical Brake.Diameter 35mm. Thickness 31mm

Product introduction:

1.Motor Brake, Mechanical Brake,Power-off Brake.Electromagnetic Brake. Diameter 35mm. Thickness 31mm

2.Static friction tourque 0.5N.M Ratd voltage :24V Power :5.0W

3.Temperature Rating : 120℃ Max speed : 8000 rpm Moment of inertia : 28.44 g.cm²

4. Weight :132.8g life time : 100000times. Thermal Resistance : 16.0 K/W

5. Thermal time Constant: 700s Coil Inductance : 92.7mH. Electrical Time Constant 1.2ms.

6.Operating Environment Tenperature: -25~55℃.

7.Power-off Brake can install the corresponding with encoder and brushless / brushed moter.

Product Detail:

Parameters / Models AM-BK3531LE-2405 UNIT
Static friction tourque 0.5 N.M
Ratd voltage 24 V
Power 5.0 W
Temperature Rating 120 ℃
Max speed 8000 rpm
Moment of inertia 28.44 g.cm²
Weight 132.8 g
life time 100000 times
Thermal Resistance 16.0 K/W
Thermal time Constant 700 S
Coil Inductance 92.7 mH
Electrical Time Constant 1.2 ms
Operating Environment Tenperature -25~55 ℃

700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance

700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance

Special Features:

1.Fixed accuracy. no backlash.

2.Small size and high torque.

3.Low noise.high speed.

4.Fast response and long life.

700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance

Recommended Motor :

Brushless Motor : AM-BL/D36*** AM-BL40***

Recommended Encoder :

Encoder S : AM-EN2211S*** 2~3 Channels.

Encoder T : AM-EN3612T*** 2~3 Channels.

Application:

Application of Assun Brake in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance

700S DC Motor Brake Electromagnetic 92.7mH Coil Inductance 16.0 K/W Resistance

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
