Coreless Brushed Motor Brushed DC Motor 6600 rpm 870mA 12v

Product Description:

Assun DC Brushed Motors are manufactured with coreless rotors for high efficiency, smooth operation and low inertia.These coreless brushed motors are perfect for applications with hogh efficiency and precision control needs.

Power rating from less than 1 watt to 150 watts. diameter from 16mm to 40mm, Assun DC brushed motors can be used for various DC drive systems. Graphite and metal brushes are to be chosen for different operation conditions.

Assun Metal Brush Series Coreless motors are manufactured with coreless rotors and metal brush commutators.The high efficiency and precision character of metal brushed coreless motor made it perfect for energy critical and fast responding applications such as medical tools and robotic actuators.

Product introduction:

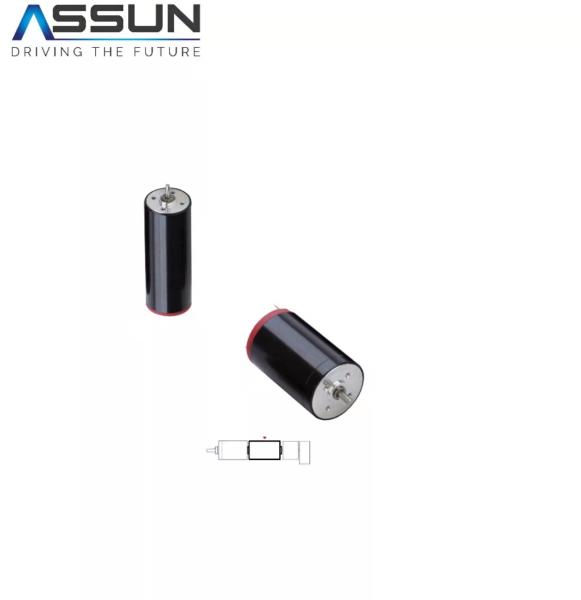

AM-CL1633MAN-1207

1.Coreless Metal Brush DC motor diameter 16mm. length 33mm. 12V.

2.Nominal voltage : 12V. No load speed ±12%: 6600rpm.

3.No load current Max150% :14 mA. Max cont.torque: 3.2mN.m. Rated Speed : 5165 rpm.

4.Rated Current: 200 mA. Rated Power: 1.7 W. Starting current : 870mA. Stall Torque : 15 mN.m.

5. Maximum power output : 2.5W. Maximum Efficiency : 76 %. Terminal resistance ±12% : 13.8Ω.

6.Weight : 28.1g. Motor thermal resistance : 25.2 K/W.

7.DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.

Product Details:

Recommended Gearbox:

Planetary Gearbox : AM-16GP. AM-20GP.

Recommended Encoder :

Encoder S : AM-EN1611S***

2~3 Channels

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
