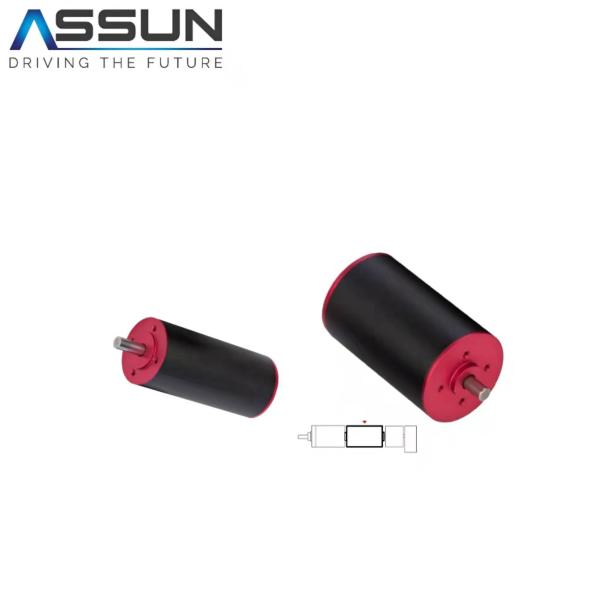

47.94 W DC High Power Brushless Motor 24v Diameter 28mm 6996 Rpm
47.94 W DC High Power Brushless Motor 24v Diameter 28mm 6996 Rpm
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2845BF-2408
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
24V
No load speed ±12% :
8171 rpm
No load current Max *150% :
167 mA
Max cont.torque :
65.44 mN.m
Rated Speed :
6996 rpm
Rated current :
2500mA
Rated Power :
47.94 W
Starting current :
17391mA
Stall Torque :
488 mNm
Maximum Efficiency :
81.2%
Terminal resistance ±12% :
1.38 Ω
Weight :
180.5g
Description

DC High power coreless motor,24V12V18V length45mm diameter28mm,7900-15000rpm

Product introduction:

1. Brushless High power DC Motor. 7900-15000rpm,18V24V12V.length 45mm.diameter 28mm. .

2. No load speed ±12%: 8171rpm. No load current Max150%:167mA .Maximum power output 104.3W. Terminal resistance ±12%: 1.38Ω.

3.Torque constant 28.05mN.m/A. Speed constant 340rpm/V, Speed / torque gradient 20.1rpm/ V.

4. High temperature DC Coreless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :180.5g. Motor thermal resistance : 10.5K/W.Maximum winding temperature: 155℃,Ambient temperatue range : -30 to 66℃.

Product Details:

Motor Model AM-BL2845BF-2408 Unit
Nominal voltage 24 V
No load speed ±12% 8171 rpm
No load current Max150% 167 mA
Max cont.torque 65.44 mN.m
Rated Speed 6996 rpm
Rated Current 2500 mA
Rated Power 47.94 W
Starting current 17391 mA
Stall Torque 488 mN.m
Maximum power output 104.3 W
Maximum Efficiency 81.2 %
Terminal resistance ±12% 1.38 Ω
Motor thermal resistance 10.5 K/W
Mechanical time constant 2.03 ms
Moment of inertia 11.3 gcm²
Torque constant 28.05 mN.m / A
Speed constant 340 rpm / V
Speed / torque gradient 20.1 rpm / mN.m
Weight 180.5 g

47.94 W DC High Power Brushless Motor 24v Diameter 28mm 6996 Rpm

47.94 W DC High Power Brushless Motor 24v Diameter 28mm 6996 Rpm

Recommended Gearbox:

Planetary Gearbox : AM-28GP. AM-32GP.

Recommended Encoder :

Encoder S : AM-EN1611S***

2~3 Channels

Encoder T : AM-EN1612T***

2~3 Channels

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

47.94 W DC High Power Brushless Motor 24v Diameter 28mm 6996 Rpm

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
