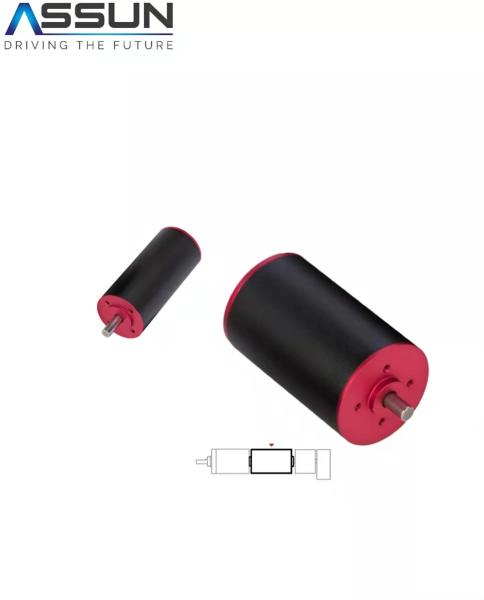

24V High Power Brushless Motor , 9000 Rpm Dc Motor 2400mA Rated Current
24V High Power Brushless Motor , 9000 Rpm Dc Motor 2400mA Rated Current
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2453BF-2409
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
24V
No load speed ±12% :
9183 rpm
No load current Max *150% :
150 mA
Max cont.torque :
56.16 mN.m
Rated Speed :
7979 rpm
Rated current :
2400mA
Rated Power :
46.93W
Starting current :
18321 mA
Stall Torque :
457mNm
Maximum Efficiency :
83.4%
Terminal resistance ±12% :
1.31Ω
Weight :
180.5g
Description

Product Description:

High power DC coreless motor,9000-13000rpm,18V12V24V 53mm length 24mm diameter

Product introduction:

1. High power DC Brushless Motor. 9000-13000rpm,24V / 18V / 12V.53mm length.24mm diameter .

2. No load speed ±12%: 9183rpm. No load current Max150%: 150mA .Maximum power output 109.9W. Terminal resistance ±12%: 1.31Ω.

3. Inductance (1KHz): 2.1mH. Torque constant 24.96mN.m/A. Speed constant 383rpm/V, Speed / torque gradient 20.1rpm/ V.

4. High temperature DC Coreless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :180.5g. Motor thermal resistance : 10.3K/W.Maximum winding temperature: 155℃,Ambient temperatue range : -30 to 66℃.

Product Details:

Motor Model AM-BL2453BF-2409 Unit
Nominal voltage 24 V
No load speed ±12% 9183 rpm
No load current Max150% 150 mA
Max cont.torque 56.16 mN.m
Rated Speed 7979 rpm
Rated Current 2400 mA
Rated Power 46.93 W
Starting current 18321 mA
Stall Torque 457 mN.m
Maximum power output 109.9 W
Maximum Efficiency 83.5 %
Terminal resistance ±12% 1.31 Ω
Inductance (1KHz) 2.11 K/W
Mechanical time constant 2.11 ms
Moment of inertia 9.94 gcm²
Torque constant 24.96 mN.m / A
Speed constant 383 rpm / V
Speed / torque gradient 20.1 rpm / mN.m
Weight 180.5 g

24V High Power Brushless Motor , 9000 Rpm Dc Motor 2400mA Rated Current

24V High Power Brushless Motor , 9000 Rpm Dc Motor 2400mA Rated Current

Recommended Gearbox:

Planetary Gearbox : AM-24GP. AM-28GP.

Recommended Encoder :

Encoder S : AM-EN1611S***

2~3 Channels

Encoder T : AM-EN1612T***

2~3 Channels

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

24V High Power Brushless Motor , 9000 Rpm Dc Motor 2400mA Rated Current

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

24V High Power Brushless Motor , 9000 Rpm Dc Motor 2400mA Rated Current

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
