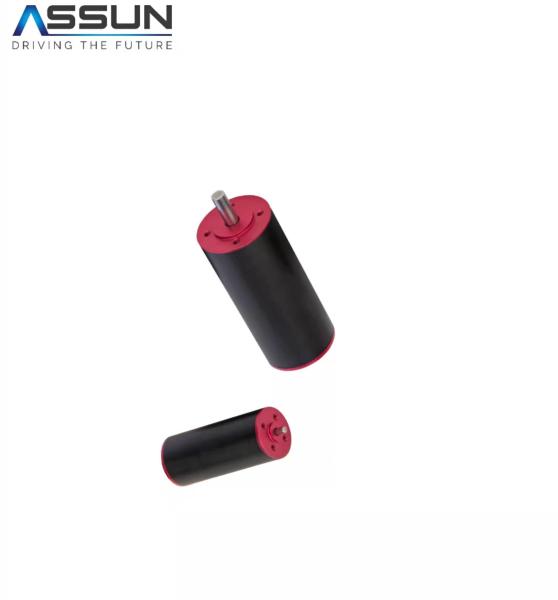

72.7 W High Rpm 12v Dc Motor Core Less 8000rpm - 13000rpm 32mm Diameter
72.7 W High Rpm 12v Dc Motor Core Less 8000rpm - 13000rpm 32mm Diameter
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL3660AE-1211
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
12 V
No load speed ±12% :
11200rpm
No load current Max *150% :
320 mA
Max cont.torque :
70.0mN.m
Rated Speed :
9909 rpm
Rated current :
7200mA
Rated Power :
72.7 W
Starting current :
60000 mA
Stall Torque :
607 mNm
Maximum Efficiency :
86%
Terminal resistance ±12% :
0.20 Ω
Weight :
325.8g
Description

Product Description:

Length 60mm DC Coreless high temp motor,8000-13000rpm.diameter36mm,12V24V36V

Product introduction:

1. High temperature DC Brushless Motor. 36mm diameter,36V /24V / 12V, 6000-13000rpm,60mm Length

2. No load speed ±12%: 11200rpm. No load current Max150%: 320mA .Maximum power output 178.1W. Terminal resistance ±12%: 0.2Ω.

3. Torque constant 10.2mN.m/A. Speed constant 938rpm/V, Speed / torque gradient 18.4rpm/ V

4. Weight :325.8g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

5. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Motor Model AM-BL-3660AE-1211 Unit
Nominal voltage 12 V
No load speed ±12% 11200 rpm
No load current Max150% 320 mA
Max cont.torque 70 mN.m
Rated Speed 9909 rpm
Rated Current 7200 mA
Rated Power 72.7 W
Starting current 60000 mA
Stall Torque 607 mN.m
Maximum power output 178.1 W
Maximum Efficiency 86 %
Terminal resistance ±12% 0.2 Ω
Motor thermal resistance 6.9 K/W
Mechanical time constant 3.2 ms
Moment of inertia 16.75 gcm²
Torque constant 10.2 mN.m / A
Speed constant 938 rpm / V
Speed / torque gradient 18.4 rpm / mN.m
Weight 325.8 g

72.7 W High Rpm 12v Dc Motor Core Less 8000rpm - 13000rpm 32mm Diameter

72.7 W High Rpm 12v Dc Motor Core Less 8000rpm - 13000rpm 32mm Diameter

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

72.7 W High Rpm 12v Dc Motor Core Less 8000rpm - 13000rpm 32mm Diameter

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
