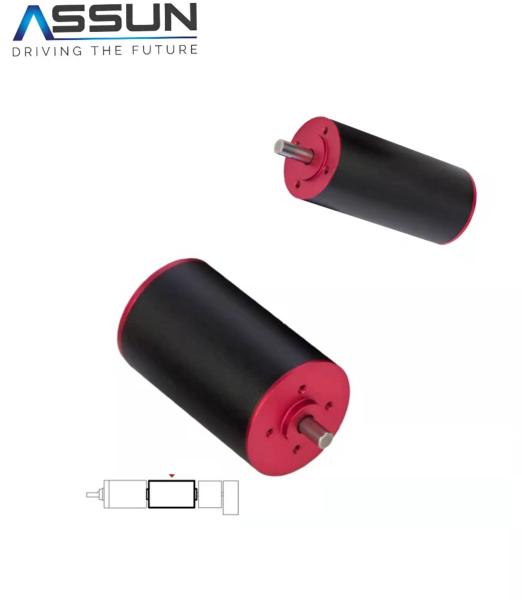

1KHz Brushless Coreless Motor 36V 45mm Diameter 100mm Length
1KHz Brushless Coreless Motor 36V 45mm Diameter 100mm Length
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL45100AE-3606
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
36V
No load speed ±12% :
10200rpm
No load current Max *150% :
201mA
Max cont.torque :
246.7 mN.m
Rated Speed :
5684 rpm
Rated current :
4800mA
Rated Power :
146.8 W
Starting current :
42353mA
Stall Torque :
2262mN.m
Maximum power :
377.7W
Maximum Efficiency :
87.5%
Terminal resistance ±12% :
0.86 Ω
Inductance (1KHz) :
0.32 mH
Weight :
841.6g
Description

36V24V48V High temperature DC Brushless motor 5000-13200rpm ,45mm diameter 100mm length

Product introduction:

1. High temperature DC Coreless Motor. 36V / 24V / 48V.45mm diameter, 5000-13200rpm,100mm Length.

2. No load speed ±12%: 10200rpm. No load current Max150%: 201mA .Maximum power output 377.7W. Terminal resistance ±12%: 0.86Ω.

3. Inductance (1KHz): 0.32mH. Torque constant 53.7mN.m/A. Speed constant 179rpm/V, Speed / torque gradient 2.9rpm/ V.

4. Weight :841.6g. Maximum winding temperature: 126℃,Ambient temperatue range : -31to 66 ℃.

5. High temperature DC Coreless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Motor Model AM-BL45100AE-3606 Unit
Nominal voltage 36 V
No load speed ±12% 10200 rpm
No load current Max150% 201 mA
Max cont.torque 246.7 mN.m
Rated Speed 5684 rpm
Rated Current 4800 mA
Rated Power 146.8 W
Starting current 42353 mA
Stall Torque 2262 mN.m
Maximum power output 377.7 W
Maximum Efficiency 87.5 %
Terminal resistance ±12% 0.86 Ω
Motor thermal resistance 3.63 K/W
Mechanical time constant 3.3 ms
Moment of inertia 109.7 gcm²
Torque constant 53.7 mN.m / A
Speed constant 179 rpm / V
Speed / torque gradient 2.9 rpm / mN.m
Weight 841.6 g

1KHz Brushless Coreless Motor 36V 45mm Diameter 100mm Length

1KHz Brushless Coreless Motor 36V 45mm Diameter 100mm Length

Recommended Gearbox :

Planetary Gearbox : AM-45GP AM-52GP

Recommended Encoder :

Encoder S : AM-EN2211S*** 2-3 Channels

Encoder T : AM-EN3612T*** 2-3 Channels

Application:

Application of Assun Encoder in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

1KHz Brushless Coreless Motor 36V 45mm Diameter 100mm Length

1KHz Brushless Coreless Motor 36V 45mm Diameter 100mm Length

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
