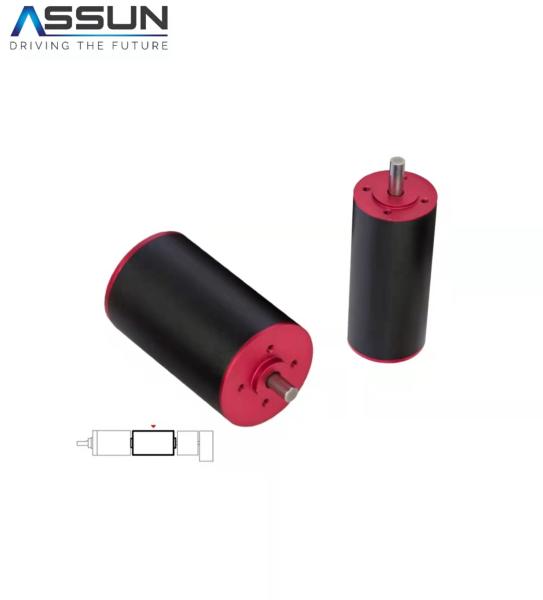

70W 8000 Rpm Dc Motor , Coreless 24v Bldc Motor 0.18mH Terminal Resistance
70W 8000 Rpm Dc Motor , Coreless 24v Bldc Motor 0.18mH Terminal Resistance
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL3660AE-2410
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
24V
No load speed ±12% :
10200 rpm
No load current Max *150% :
165.1 mA
Max cont.torque :
74.5 mN.m
Rated Speed :
8974 rpm
Rated current :
3500mA
Rated Power :
70 W
Starting current :
27907mA
Stall Torque :
620 mN.m
Maximum power :
165.6W
Maximum Efficiency :
85.1%
Terminal resistance ±12% :
0.87 Ω
Inductance (1KHz) :
0.18mH
Weight :
326.91 g
Description

Product Description:

High temp DC Brushless motor 24V12V36V,8000-13000rpm.diameter36mm Length60mm

Product introduction:

AM-BL-3660AE-2410

1. High temperature DC Coreless Motor. 36mm diameter,24V /36V / 12V, 8000-13000rpm,60mm Length

2. No load speed ±12%: 10200rpm. No load current Max150%: 165.1mA .Maximum power output 165.6W. Terminal resistance ±12%: 0.87Ω.

3. Inductance (1KHz): 0.18mH. Torque constant 22.4mN.m/A. Speed constant 428.5rpm/V, Speed / torque gradient 16.6rpm/ V.

4. Weight :326.91g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

5. High temp DC Coreless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Motor Model AM-BL-3660AE-2410 Unit
Nominal voltage 24 V
No load speed ±12% 10200 rpm
No load current Max150% 165.1 mA
Max cont.torque 74.5 mN.m
Rated Speed 8974 rpm
Rated Current 3500 mA
Rated Power 70 W
Starting current 27907 mA
Stall Torque 620 mN.m
Maximum power output 165.6 W
Maximum Efficiency 85.1 %
Terminal resistance ±12% 0.87 Ω
Motor thermal resistance 6.9 K/W
Mechanical time constant 2.91 ms
Moment of inertia 16.76 gcm²
Torque constant 22.4 mN.m / A
Speed constant 428.5 rpm / V
Speed / torque gradient 16.6 rpm / mN.m
Weight 326.91 g

70W 8000 Rpm Dc Motor , Coreless 24v Bldc Motor 0.18mH Terminal Resistance

70W 8000 Rpm Dc Motor , Coreless 24v Bldc Motor 0.18mH Terminal Resistance

Recommended Gearbox:

Planetary gearbox: AM-36GP. AM-40GP.

Recommended Encoder :

Encoder S: AM-EN2211S**

2~3 Channels

Encoder T: AM-EN3612T**

2~3 Channels

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

70W 8000 Rpm Dc Motor , Coreless 24v Bldc Motor 0.18mH Terminal Resistance

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

70W 8000 Rpm Dc Motor , Coreless 24v Bldc Motor 0.18mH Terminal Resistance

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
