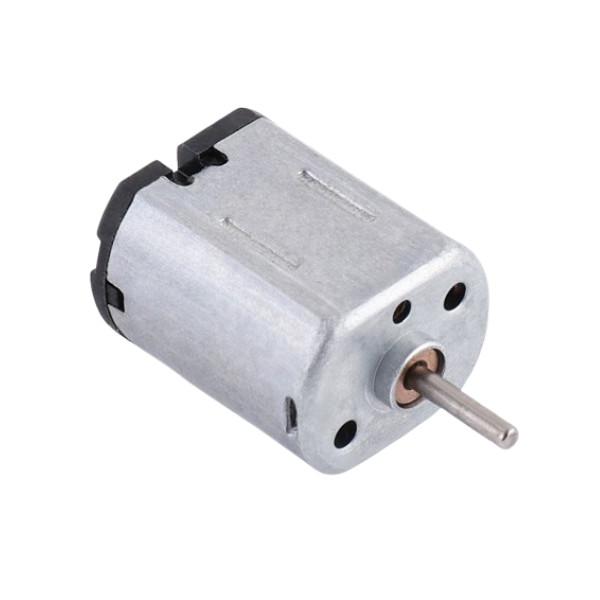

FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
Specifications
Brand Name :
Lihua Motor
Model Number :
FF-030PK
Certification :
ISO9001 CE RoHs Reach
Place of Origin :
Dongguan,China
MOQ :
5000PCS
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS/day
Delivery Time :
30-45days
Packaging Details :
Carton
Name :
FF-030PK Motor
Motor Type :
FF-030PK
Material :
Precise metal and plastic
Voltage :
3V 3.5V 4V 5V 6V 12V
Current :
0.02-0.08A or as your require
Speed :
5000RPM-20000RPM
Torque :
0.3-0.8mN.m or as your need
Output :
0.05W-2W
Efficiency :
86%
Direction of Rotation :
CCW/CW
Motor Shaft Length :
5mm or custom
Motor Diameter :
15.5mm
Motor Body Length :
18.6mm
Motor Screw Holes :
M2*0.4
Warranty :
48 Month
Weight :
10g
Description

FF-030PK Mini Motor 3v 5v Metal Brush 12mm*15.5mm For Sphygmanometer

FF-030PK Custom Small Motor Service

The FF-030PK motor offers extensive customization options to meet your specific needs. Our tailored services include:

  • Product Parameters: Adjustable voltage (up to 36V), current, speed, and torque to suit your application requirements.

  • Motor Dimensions: Customizable output shaft length and diameter, as well as motor diameter for seamless integration.

  • Accessory Additions: Enhance functionality with optional plastic or metal worm gears, eccentric weights, and gearboxes.

  • Additional Custom Services: Comprehensive ODM and OEM support to deliver solutions tailored to your unique specifications.

Experience the flexibility and precision of the FF-030PK motor, designed to adapt to your exact needs. Contact us today to discuss your customization requirements!

FF-030PK Small Motor Datasheet

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
FF-030PK-12135 1-4V 3.0V 10500 0.064 0.411 8411 0.23 0..36 19.3 0.833
FF-030PK-07300 1-6V 5.0V 7700 0.027 0.3 5657 0.075 0.15 11.3 0.206
FF-030PK-10180 3.5-6V 5.0V 11700 0.05 0.49 9230 0.19 0.48 24 0.7
FF-030PK-09210 1-5V 5.0V 10500 0.046 0.44 8140 0.16 0.37 20 0.55
FF-030PK-11160 2-5.5V 5.0V 13800 0.066 0.53 10870 0.25 0.60 25 0.91

NOTE:

1mNm= 1Ncm = 10.2gcm

Customized product models are available upon request

FF-030PK Small Motor Drawing

FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer

FF-030PK 3V 5V metal brush 12mm*15.5mm Motor Applications

FF-030PK Motor 3V 5V Metal Brush Motor 12mm*15.5mm For Sphygmanometer
