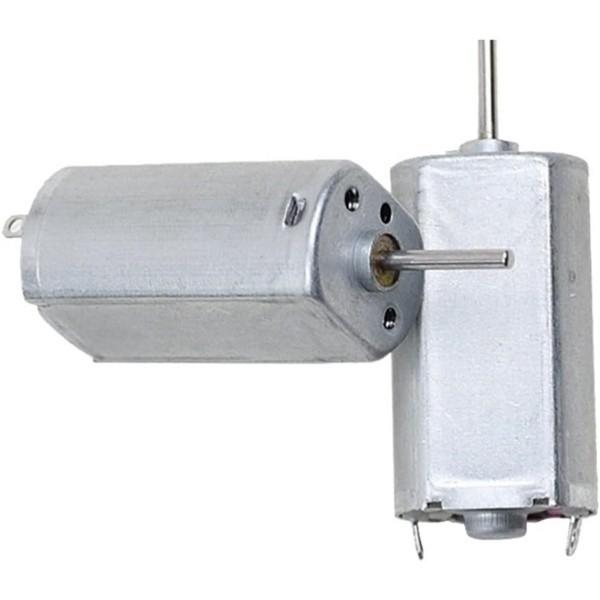

FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor
Specifications
Brand Name :
Lihua Motor /HCS Motors
Model Number :
FF-03PK
Certification :
ISO9001/CE/Reach/RoHs
Place of Origin :
Dongguan China
MOQ :
3000pcs
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS/Day
Delivery Time :
30-45Days
Packaging Details :
Carbon Box
Motor Model :
FF-031/FF-031VA/FF-031PK
Motor Type :
Precious metal brush motor
Motor Range :
DC 1.5V-3V
Rated Volt :
3.0V
No-load Speed :
2300-13200 rpm
Size :
20 * 14 * 12mm
Shaft Length :
4mm
Shaft Diameter :
1.5mm
Protect Feature :
Explosion-proof
Construction :
Permanent Magnet
Shaft type :
Straight
Efficiency :
86%
Torque :
21-30 g .cm
OEM/ODM :
Accepted
Application: :
Precision instruments, household appliances, blood pressure meter, etc.
Name :
Small Motor
Description

FF-050SK 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor

  • Electric DC motor
  • Model: FF-050SK-13130
  • Operates on 4 VDC nominal
  • No load speed at 4 VDC: 7,600 RPM
  • No load current: 50 mA
  • Full load (maximum efficiency 4 VDC) performance characteristics:
    • Speed: 6,300 RPM
    • Current: 200 mA
    • Torque: 6.0 g-cm (0.59 mN-m)
    • Power output: 0.39 Watts
  • Stall torque: 35 g-cm (3.43 mN-m)
  • Stall current: 820 mA
  • Can be operated in either direction, simply reverse power supply polarity
  • Dimensions (not including shaft): 26.7 mm long x 12 mm thick x 15.5 mm diameter
  • Shaft dimensions: 9.6 mm long x 1.5 mm diameter
  • 2 solder terminals for easy power connection
  • Threaded (2-M2.0X0.4) mounting holes on 10 mm diameter on face
  • Weight: 0.6 oz. (18 g)
  • Typical applications: Navigation, appliances, electric shavers, audio equipment, etc.

Item

Precise metal brush motor

OEM & ODM

Accepted

MOQ

3000 units

Capacity

300,000 units/month

Package

Carton

Place of Origin

Dongguan, Guangdong, China

Delivery Date

Depending on the quantity, please ask the salesman.

Payment Terms

30% advance, 70% balance

Port of Shipment

Shenzhen / Hong Kong

Other Name

FF-050SB/FF-050SH

FF-050SK Car CD Electric Shaver Motor Model Types Table

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
FF-050SK-11170 4-10V 7.0V 10300 0.04 1.03 8385 0.174 0.72 56 0.82
FF-050PK-13130 1-6V 6.0V 12000 0.055 0.96 9782 0.241 0.86 53 1.06
FF-050SK-11170 2-8V 7.0V 10400 0.045 0.84 8430 0. 0.74 45 0.85

NOTE:

1mNm= 1Ncm = 10.2gcm

Customized product models are available upon request

FF-050PK 12mm*15mm Small Motor Drawing

FF-050SK Small Motor 6V 7V 12mm*12mm 12000RPM High Speed Car CD Electric Shaver Motor

Basic Information for FF-050SKMini Motor

 FF-031 Body Size: 26.7mm*15.5mm*12mm (L*W*H) Output Shaft Length: L±0.5mm Output Shaft Diameter: 1.5mm Screw Hole Size:0.4mm*2 Weight: 10 grams Unit:mm
