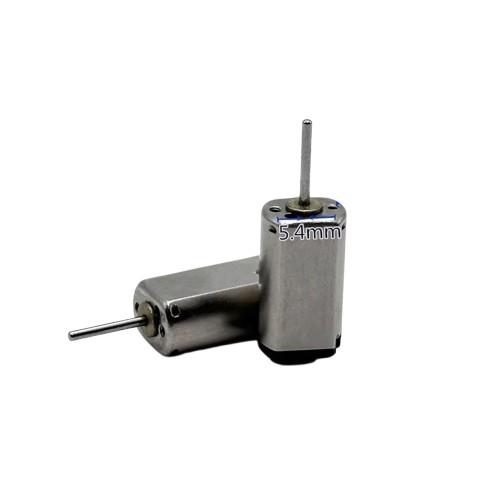

K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor
Specifications
Brand Name :
Lihua Motor
Model Number :
FF-K20VA
Certification :
CE,CCC,ROHS,UL,ISO9001
Place of Origin :
Dongguan,China
MOQ :
1000PCS
Payment Terms :
L/C,T/T
Supply Ability :
8000PCS/day
Delivery Time :
30-45days
Packaging Details :
Foam Box
Name :
Small Motor
DC voltage :
3.5V Max
Protect feature :
Drip-proof
Output power :
3.5W to 0.1W
Color :
Silver grey
Type :
Mini DC Motor
Insulation class :
A
Housing :
cast iron
Usage :
Portable CD player,injection molding machine,Car CD player,CD/DVD-ROM Drive
Speed :
up to 12000rpm or custom
Weight :
2.4g
Commutator :
Precise Metal Brush
Direction of Rotation :
CCW/CW
Body Size :
6mm*8mm*14.5mm
Shaft Length :
10mm or custom
Shaft Diameter :
1mm
Noise :
Low noise
Description

Mini K20 Electric Motor High Speed 3.0v -3.5v CE RoHs

Mini K20 Electric Motor is a brushed DC motor, 6mm*8mm*14.4mm precise motor body size. The FF-K20 motor is suitable for precision products: portable CD player, car CD player, DVD drive, adult machines, and cameras.

Permanent Magnet Construction: The FF-K20's permanent magnet construction offers constant and dependable performance in dual-tron small motor applications.
Compact Design: This little electric motor, measuring just 8mm*6mm*14.5mm, is suitable for space-saving applications in household appliances.
High Speed Range: Achieve quick motion with a speed range of 12500 RPM to 30000 RPM, ideal for DIY solar-powered toys and cameras.

Lightweight Construction: Weighing only 3g, this little v twin engine for sale is easy to integrate into lightweight projects without adding bulk.
Versatile voltage compatibility: It operates efficiently between DC 1.5V and 3.5V, making it an ideal solution for a variety of micro electric conversions.

K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor

Mini K20 Electric Motor High Speed Parameter Datasheet Samples & 2D Drawing

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A mNm R/min A W g.cm A
FF-K20-06205 3.5max 3.0v 11800 0.040 0.147 5800 0.10 0.07 2.8 0.16
FF-K20-07130 3.5max 3.5v 8200 0.060 0.049 2200 0.16 0.049 1.8 0.20

Customized product parameter are available upon your request

Note:1mNm= 1Ncm = 10.2gcm

K20 Mini Electric Motor High Speed 3.0V-3.5V Brushed DC Motor

Note:

The above datasheet is based on different customer's requirements; voltage, speed, current, torque, speed, and output can be customised.
