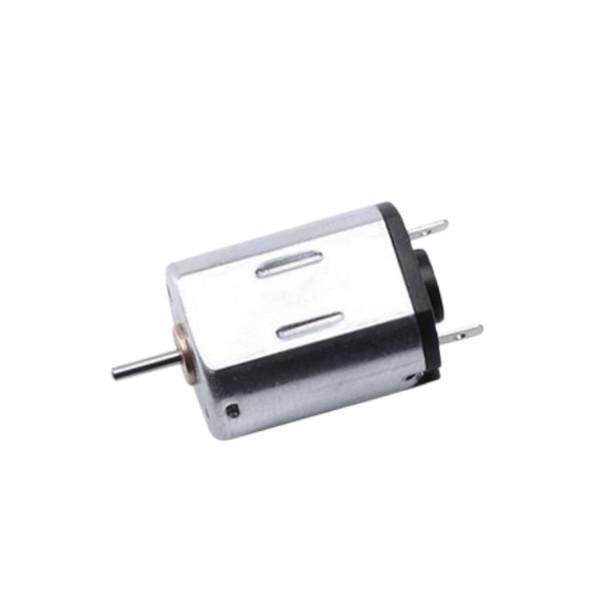

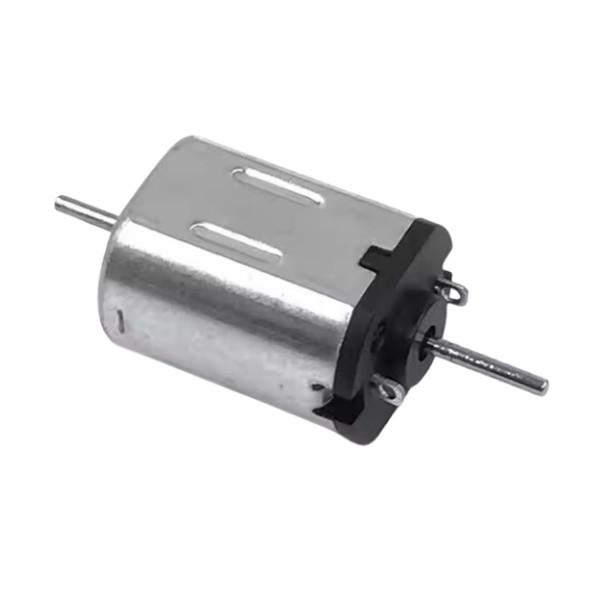

6V 30000RPM 10mm High Speed N20 DC Motor For Gear Motor Mini Air Pump DIY RC Toy

6V 30000RPM 10mm High-Speed N20 DC Motor for Gear Motor, Mini Air Pump, DIY RC Toy

This N20 micro motor features high speed and efficiency, making it widely used in mini air pumps, gear motors, smart devices, RC toys, and more.

Customization Available: We offer customization services for voltage, current, speed, rotation direction, micro pump housing processing, gear motor assembly, and other tailored solutions to meet various application needs.

N20 Micro 10mm*12mm Electric Motor Datasheet

N20 Mini Motor 2D Drawing/ Dimension

Looking for a Compact Motor + Gearbox Solution?

Discover the N20 DC Geared Motor – your ideal high-torque, small-form-factor solution for precision applications.

Key Features:
✔ Multi-Voltage Options: 2.4V /3V/ 5V /6V/ 12V DC operation
✔ High Torque Output: Optimized for space-constrained, load-bearing applications
✔ Compact Design: Ultra-small footprint for easy integration

Ideal For:

• Smart Camera Systems: Selfie sticks & gimbal stabilizers

• Micro Robotics: Agile robotic joints & camera corner adjustments

• IoT Devices: Compact automation requiring precise motion control

Why Choose N20?
→ Precisely engineered metal gearbox for smooth operation
→ Customizable gear ratios available
→ Reliable performance in continuous-duty applications

Request specs or samples today!

Popular N20 Mini Motor Types Recommendation:

• FF-N20-07285:
• Voltage:DC4.5V
• No-load Speed:9000rpm
• No-load Current:≤22mA
• Output Shaft Length:2.5±0.3mm
• R:19-22Ω
• Vs<0.6V
• FF-N20-11110:
• Voltage:DC6V
• No-load Speed:30200±1510rpm
• No-load Current:≤85mA
• Output Shaft Length:.2.4±0.3mm
• R:2.7-3.2Ω
• Vs<0.6V
• FF-N20-06360
• Voltage:DC5.0V
• No-load Speed:8000±400rpm
• No-load Current:≤22mA
• Output Shaft Length: 3.4±0.2mm
• R:30-33Ω
• Vs<1.8V

N20 DC Motor - Key Specifications & FAQs

Q1. What is a N20 DC motor?

A:The N20 is a miniature brushed DC motor with an integrated metal gearbox. Known for its compact size (typically 10×12×15.1mm), it combines a DC motor with precision gears to deliver high torque in small spaces. Common in robotics, cameras, and automation due to its lightweight design and customizable gear ratios.

Q2. How much current does a N20 gear motor draw?
A:

• No-load current: ~50–150 mA (depends on voltage)

• Loaded current: 200–800 mA (varies by torque demand)

• Stall current: 0.5–1.5A (avoid prolonged use at this level)

(Example: A 6V N20 motor under medium load draws ~300mA.)

Q3. What voltage is N20?
A:

• Standard options: 2.4V, 3V, 5V, 6V, 12V

• Wider range: Custom models support 3V–24V

(Most common: 6V or 12V for balance of speed/torque.)

Q4. What is the maximum voltage of N20 motor?
A:

• Continuous use: 12V (safe for long-term operation)

• Peak/transient: Up to 18V (short bursts only; reduces lifespan)

⚠ Warning: Exceeding 12V may overheat brushes/gears. For higher voltages, opt for custom-wound N20 motors.

Need Help Selecting?

• Low-power projects: 3V/5V

• High-torque needs: 12V + high gear ratio

• Precision control: Add an encoder (optional)

(All values are typical; check datasheets for exact specs.Data based on standard N20 specs; actual values may vary by manufacturer.)
