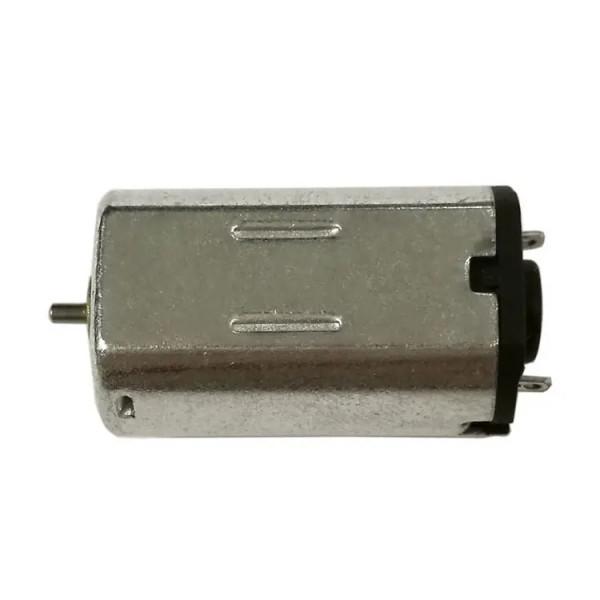

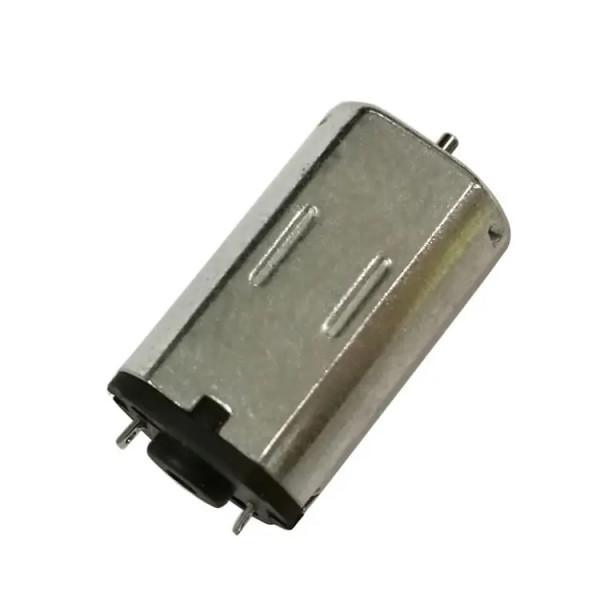

FF-N30 10mm*12mm Mini Micro Motor High Speed Low Torque Motor 9000 Rpm For Toy Car

Model: FF-N30

Product Category: Micro Motor

Typical applications: CD player, MD recorder

Rated Voltage:3V 3.5V 4V 12V

No-load Speed:9000rpm /10000rpm / 14800rpm /15000rpm

OutPut: 0.1-0.8w

Weight: 7g

Characters: N30 DC micro motor uses high-quality raw materials, we can add or assemble parts according to customer own product requirements, low noise, high rpm, mini size all of there can show on it.

Product Notes: Motor specification and shaft length can be tailor-made according to customer's requirements.

FF-N30 Mini Motor Drawing /Dimension Reference

Display for N30 Small Motor Typical Motor Types

Remarks:

The ambient temperature of motor testing is 25-30℃ at room temperature;
The dimensions :output shaft length ,motor total length ,shaft shape in the external dimensions diagram can be adjusted as required;
Micro-motor performance, installation, power connection and external dimensions can be designed and modified according to customer requirements;

Unit in drawing is :mm
1inch=25.4mm
1mm=0.0394inch
1g.cm=0.098mN.m
1mN.m=10.2g.cm

4 Keypoints For N30 Mini Micro Motor High Speed Low Torque Motor

1. Mini Shape Easy To Handle

Micro N30 motor is small and light weigh, with temperature resistance and vibration resistance through continuous stamping with precision molds to easily mount a wheel on the motor's output shaft or copter blade.

2. NdFeB Magnet

A high-quality magnet with a strong and consistent magnetic field can produce a greater amount of torque and allow the motor to operate at higher speeds.

3. Precious Metal Brush

Precious metal brush provide the power engine to the N30 electric motor.

4. Stainless Steel Shaft

Choose high-quality shaft, provide sufficient support for N30 motor, and extend the service life of the motor.
