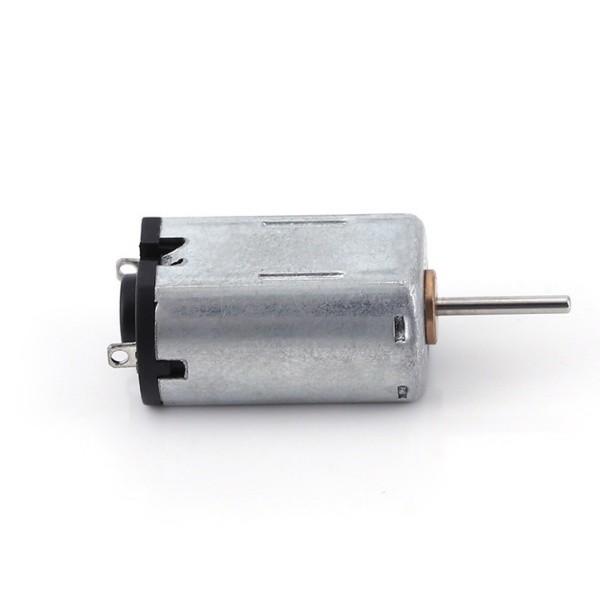

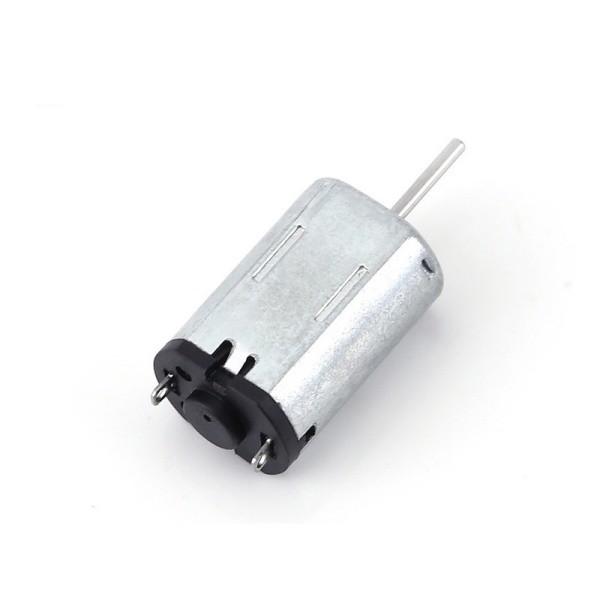

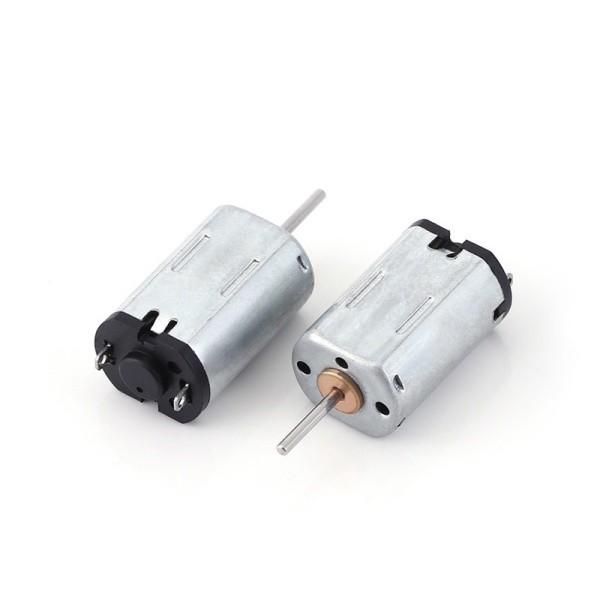

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments
Specifications
Brand Name :
Lihua Motor
Model Number :
FF-M20
Certification :
ISO9001,Reach,RoHs,SGS
Place of Origin :
Dongguan,China
MOQ :
2000pcs
Payment Terms :
L/C,T/T
Supply Ability :
10000pcs/day
Delivery Time :
25-45days
Packaging Details :
Carbon Box
Price :
FF-M20 small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM
Model Name :
FF-M20 Mini Motor
Type :
Micro Motor,DC motor
Motor Body Size :
8mm*10mm*15mm
Output shaft length :
3.5mm/3.6mm/4.3mm/15.5mm or as request
Shaft diameter :
4mm
Rated voltage :
1.5v 3v 5V 6v 7.5v 12v dc or as request
Torque :
9.6g.cm/5.7g.cm or as request
Output power :
0.1-3.5w
Usage :
Portable Camera, Car CD,MD recorder, electric shaver, massager
Commutator :
Precise metal brush
Speed(rpm) :
6000rpm/8000rpm/15000rpm/18000rpm or custom
Construction :
Permanent Magnet
Weight :
4g
Protect feature :
Drip-proof
Efficiency :
75%
Direction of Rotation :
CW/CCW
Name :
Small Motor
Description

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments

FF-M20 small motor with 8mm*10mm*15mm precise motor size can be used in small instruments: portable camera, DIY toys, eyebrow tattoo massager, smart door lock, small household appliances, aero model.

FF-M20 Mini Motor Parameter List

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A mNm R/min A W g.cm A
FF-M20-1550 1-3V 1.5V 18000 0.1 0.194 14601 0.387 0.32 9.6 1.5
FF-M20-07220 2-4V 3.5V 8609 0.02 0.063 6546 0.063 0.09 5.7 0.201
FF-M20-09125 2-6V 5.0V 25800 0.05 0.292 20879 0.21 0.641 15.6 0.90
FF-M20-10105 2-6V 5.0V 30500 0.06 0.306 24725 0.26 0.79 16.5 1.10

FF-M20 small Motor 8mm*10mm DC 1.5V 3V 3.7V 2D Drawing

FF-M20 Small Motor 8mm*10mm DC 1.5V 3V 3.7V 15000RPM For Beauty Instruments

Note:

1) Dimension in the drawing can be adjusted acording to customer's requirement.
2) Motor can be designed upon the customer's requirements on performance,
installation, power connection method and motor dimension.
3) Motor can be mounted with varying shape and sizes of eccentric weight, which is
made of iron, brass, or fre-ally to become a vibralion motor.
1g=0.035oz
1inch=25. 4mm
1g.cm=0.098mN.m
10z=28.35g
1mm=0.0394inch
1mNm=10.2g cm
