RS-365 12V-24V 7000rpm High Torque Mini DC Motor For Hair Dryer Electronic Locks

RS-365 Mini Motor Parameters

• Voltage Range: 6V-36V (Can custom)

• No-load Speed:

  • 83,000 RPM (12V)

  • 21,500 RPM (24V)

• Torque: Acceptable for customization based on application requirements.

• Bearings: Front and rear double ball bearings ensure stability and durability.

• Motor Body Length: Standard RS-365 motor body length is 27.7mm*.2.6mm(L*H) or customizable according to specific design needs.

• Heat Dissipation: Equipped with an independent heat dissipation system, including a built-in fan for cooling during continuous operation.

  ---

  Model	Voltage(V)		No Load		Rated Load				Stall
  	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
  			R/min	A	m.Nm	R/min	A	W	g.cm	A
  RS-365SA-2885	3-9v	7.2v	12500	0.36	4.90	11000	1.3	5.64	420	8.6
  RS-365SA-10500	12-25V	24.0V	7000	0.05	4.50	5600	0.20	2.64	230	0.8
  RS-365SA-12190	6.8-36V	24.0V	10500	0.08	5.0	8400	0.33	4.39	260	1.32
  RS-365SA-1885	6-20V	15.0V	17100	0.26	6.17	13570	1.0	8.76	305	3.85
  RS-365SA-10225	6-36V	24.0V	8100	0.065	4.22	6200	0.22	2.74	180	0.73
  Voltage, current, torque, etc free customization Note:1mNm= 1Ncm = 10.2gcm

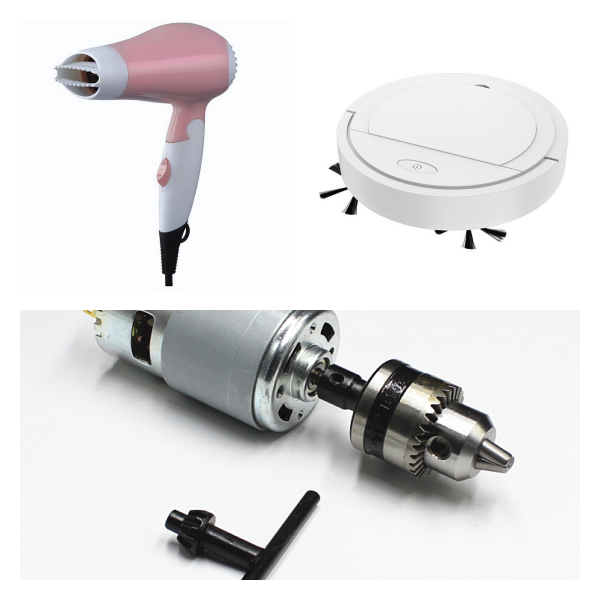

RS-365 High Torque DC Motor Ball Bearing Applications

The RS-365 motor has a wide range of applications due to its high power, durability, and ease of use:

• Power tools:Cutting machines, belt machines, lathes, milling machines, electric grinders.

• Vacuum cleaner robot:

• Drill :Small drill tables, hand drill polishing machines

Key Features

1. • Model: RS-365SA-11240
   • Operates on 24 VDC nominal
   • Recommended operating voltage range 9 V DC to 24 V DC
   • No load speed is 10,800 RPM
   • No load current: 70 mA
   • Full load (maximum efficiency @ 24VDC) performance characteristics:
     • Speed: 8,500 RPM
     • Current: 320 mA
     • Torque: 52 g-cm (5.10 mN-m)
     • Power output: 4.5 Watts
   • Stall torque: 260 g-cm (25.5 mN-m)
   • Stall current: 1.30 A
   • Can be operated in either direction, simply reverse power supply polarity
   • Dimensions (not including shaft): 32.6 mm long x 27.7 mm diameter
   • Shaft dimensions: 13 mm long x 2.3 mm diameter
   • Features 2 threaded mounting holes ( M2.6x0.45)

RS-365 Motor Sampling Customized Process

To ensure the motor fits your specific needs, the following process is followed:

1. Initial Requirements Gathering:

   • Provide detailed specifications, including:

     • Required operating voltage and current.

     • Speed (RPM) and torque requirements.

     • Load conditions (e.g., weight, usage environment).

     • Application details (e.g., intended machinery or equipment).

   • If customization is required, provide drawings or design schematics.

2. Sample Development:

   • Based on provided requirements, a customized sample motor will be produced for testing.

3. Sample Testing:

   • The sample is tested to ensure compliance with performance and durability standards.

4. Feedback & Adjustment:

   • After testing, adjustments can be made to optimize performance based on customer feedback.
