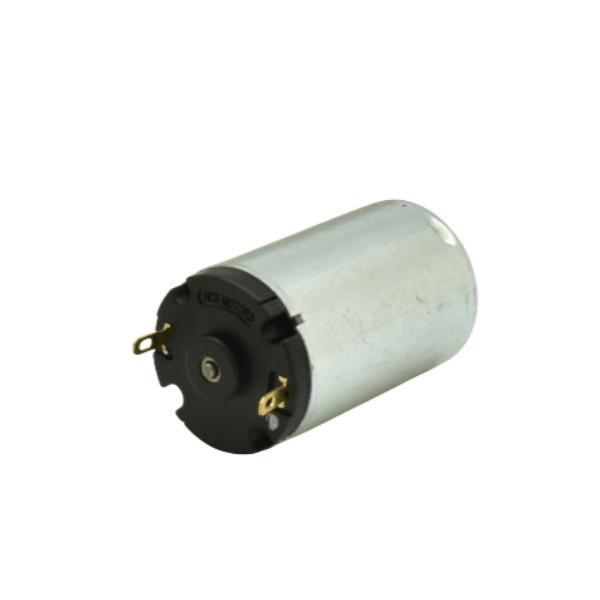

27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
RS390 Motor
Certification :
ISO9001 Reach,RoHs,SGS,CE
Place of Origin :
Dongguan China
MOQ :
3000PCS
Payment Terms :
,L/C,T/T
Supply Ability :
8000PCS/Day
Delivery Time :
40-45days
Packaging Details :
Plastic/Foam Box
Type :
DC Brushed Motor
Direction of Rotation :
CCW/CW
Custom Service :
Voltage/Torque/Current/Speed /Output Shaft Length can customized
Dimensions :
46.5mm long x 27.7 mm diameter (not including shaft)
Mounting Hole Size :
M2.6*0.45
Output Shaft Diameter :
2.3mm
Screw Hole Distance :
16mm
Warranty :
48-Month
Usage :
lectrTools, Sparklers, Massage Instruments, Aerial Models, Hair Dryers
Weight :
80g
Name :
High Torque DC Motor
Description

27.7mm DC12V RS-390 8000rpm Brushed DC Motor for Fans Hair Dryer Bicycle Vacuums

RS385 High Torque Motor Technical Parameter

|- Model Number: RS-390
|- Shell Stator Size : Φ27.7* L 46.5 mm(Φ 1.09 inch * 1.83 inch)
|- Shaft : Φ2.3mm(0.09 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 40W
|- Rated Voltage: DC 1.5V -36V
|- Stall Torque: up to 600 g.cm
|- Construction: Permanent Magnet
|- Commutation: Long-life time Carbon brush
|- Clockwise/counter-clockwise rotation (CW&CCW)

Model Voltage No load At maximum efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Torque Current
V R/min A R/min A g.cm W g-cm A
RS-390SA-23144 8-16V 14V 7500 0.13 6375 0.708 85 5.54 565 3.9
RS-390SH-3849 6-24V 12V 15650 0.35 13897 2.77 177.7 25.38 156 21
RS-390SH-20156 6-14V 12V 5000 0.08 4243 0.33 61.9 2.7 430 2.22
RS-390SH-2975 6-14V 12V 12000 0.29 10165 0.73 58.6 6.12 820 8.9
  • Color Variation: Due to lighting and screen differences, the actual product color may slightly differ from the images.
  • Size Tolerance: Manual measurement may result in a 1–3cm variance in dimensions.
  • All technical paramter can be customized as your need.
  • Note:1mNm= 1Ncm = 10.2gcm

Specifications

  • Voltage Range: 6V to 24V DC
  • No Load Speed:
  • 6V: 4,200 RPM
  • 12V: 9,426 RPM
  • 24V: 18,900 RPM
  • No Load Current:
  • 6V: 0.2-0.3 A
  • 12V: 0.4-0.5 A
  • 24V: 0.7-1.0 A
  • Stall Current: 1.5-2.5 A
  • Output Shaft Diameter: 2.3 mm
  • Output Shaft Length: 6 mm(Custom)
  • Mounting Screw Hole Size: 2.6 mm
  • Mounting Hole Distance (center-to-center): 16 mm
  • Motor Height: 47 mm
  • Motor Outer Diameter: 27.7mm

Physical Attribute

  • Output shaft: 2.3MM
  • Shaft length: 6MM
  • Screw hole: 2.6MM
  • Hole distance: 16 MM
  • Weight: 80 g
  • Height: 47 MM (excluding front and rear bearing housings)
  • Motor outer diameter: 27.5 MM

RS385SA Motor Drawing

27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums

RS385SM Motor Drawing

27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums

RS-390 DC Motor Precision Materials

Rolling bearings have smaller friction coefficients and higher rotational accuracy, better operating stability and life, and can withstand higher rotational speeds and impact loads.Ball bearings help reduce energy loss and extend the life of the motor by reducing excess heat generated by friction between moving parts.

 27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums
27.7mm DC12V RS-390 8000rpm Brushed DC Motor For Fans Hair Dryer Bicycle Vacuums


The RS-390 12 volt dc electric motor uses NdFeB magnets, which are reliably stable and will not lead to magnetic degradation or failure of the micromotor over long periods of time.In addition, NdFeB magnets have high resistance to oxidation and oxidation, which can resist the effects of the external environment on the performance of the 390 motor.
