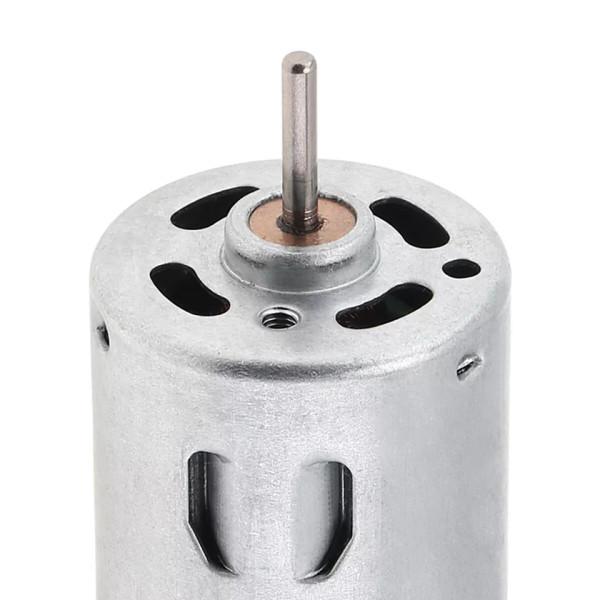

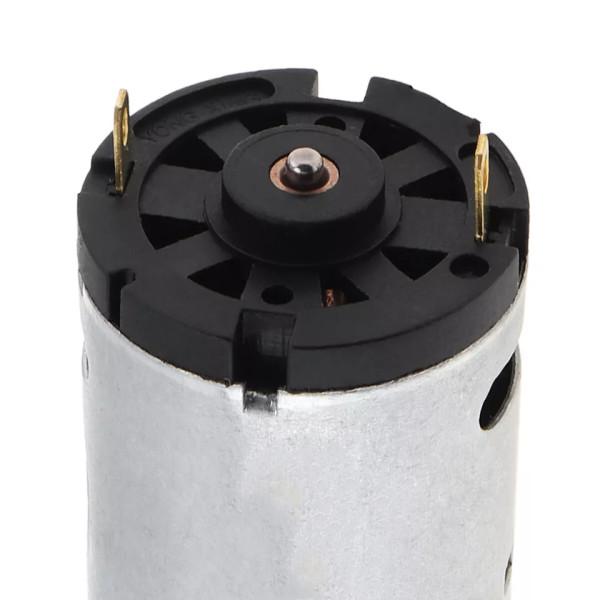

RS360 DC Motor 6V-12V 12000RPM High Torque Carbon Brushed Motor For DIY Machine

RS360 Micro Motor Technical Parameter

|- Model Number: RS-360

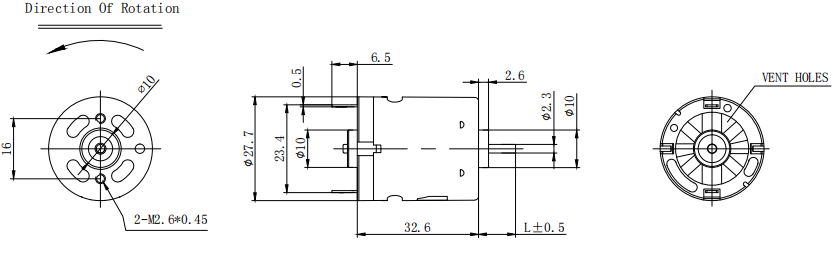

|- Shell Stator Size : Φ27.7* L 32.6 mm(Φ 1.09 inch * 1.286 inch)
|- Shaft : Φ2.3mm(0.09 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 40W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 500 g.cm
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Clockwise/counter-clockwise rotation (CW&CCW)

Main Machines for Automatic Production Line

Rotor Automatic Production Line After a series of processes such as welding will be carried out in the process of stamping and coating, cleaning, etc., and the fully automated production improves the production efficiency Automatic Assembly of Stator Through this process ,the machine will do the magnetization and inspection work.
	End Cover Assembly According to difference parameter and requirements, the plastic or metal end cover will be made in the assembly line that used for complete assembly line. Mini DC Motor Assembly Line The machine will assemble the rotor, stator and end cover ,the basic motor prototype has been completed

Honor and Qualification

Our commitment to excellence is reflected in our comprehensive range of certifications, which underscore our dedication to quality, safety, and environmental responsibility. As a leading manufacturer of micro motors, we adhere to the highest international standards, ensuring that our products meet the rigorous demands of global markets. Here are the key certifications that define our operations:

1. CE Certification:
   Our products comply with the essential health, safety, and environmental protection standards required for sale within the European Economic Area (EEA). The CE mark demonstrates our commitment to delivering safe and reliable products to our customers.

2. RoHS Compliance:
   We prioritize environmental sustainability by adhering to the Restriction of Hazardous Substances (RoHS) directive. This ensures that our micro motors are free from hazardous materials such as lead, mercury, and cadmium, making them safe for both users and the environment.

3. REACH Certification:
   Our compliance with the Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulation highlights our dedication to responsible chemical management and environmental protection.

4. IATF 16949:
   As a certified manufacturer under the International Automotive Task Force (IATF) 16949 standard, we meet the stringent quality management requirements for the automotive industry. This certification ensures that our micro motors are designed and produced to the highest standards of reliability and performance.

5. ISO 9001:
   Our ISO 9001 certification reflects our commitment to maintaining a robust quality management system. This internationally recognized standard ensures consistent product quality, customer satisfaction, and continuous improvement in our processes.

6. UL Certification (Optional):
   For customers in North America, we offer products that meet the safety standards set by Underwriters Laboratories (UL), ensuring compliance with U.S. and Canadian market requirements.

SGS	CE	IATF16949	ISO9001

Delivery Details

●The motor will be shipped within 30-45 working days after your payment is received and deared.(excluding Saturday, Sunday & Holiday)
●All items will be shipped to your Paypal address, so please make sure to provide us with the correct, precise, detailed shipping address.
●The Delivered time to USA buyer is about 35-50 days, other country about 30-45 days delivered.
Notes: pls contact us if you need need trackable or express shipping sevice.
