RF-310TA-11400 Motor Technical Parameter

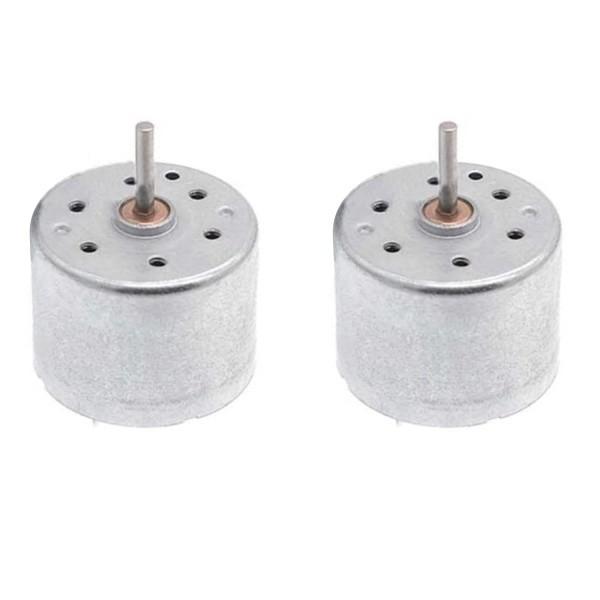

• Introducing the innovative 310 DC motor, designed for low noise operation and minimal starting current, making it an ideal choice for solar-powered toys, model kits, and other DIY projects. Its extended shaft length enhances usability and versatility.

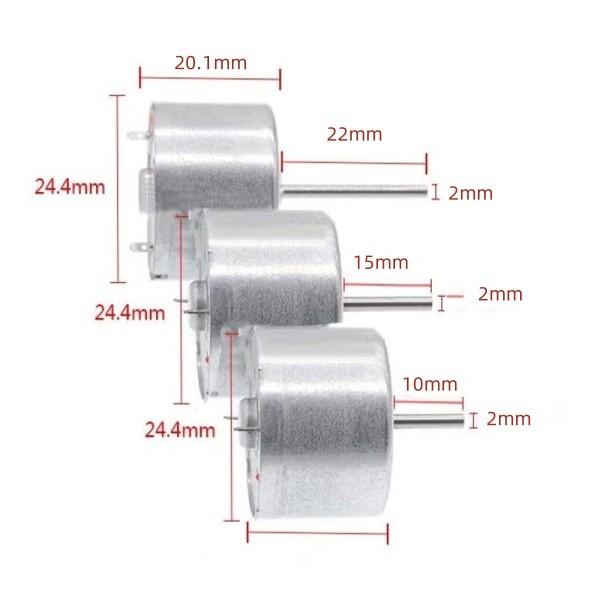

  • Motor voltage: 1.5V-6V
  • Motor height: 20.1mm
  • Motor diameter: 24.4mm Max
  • Step Height: about 1.4mm
  • Step diameter: about 6.4mm
  • Fixed aperture: 2mm
  • Motor shaft diameter: 2mm
  • Motor shaft length: 6mm, 10mm, 22mm, 15mm

  • Brush Type: Metal brushes
  • Customization Service:Voltage, speed,torque and current can be custom.

RF-310 Motor DC Popular Custom Types

• 6mm Shaft Length:

  3V Operation:

  No-load Current: 15mA

  Stall Current: 200mA

  Speed: 3200 RPM

  6V Operation:

  No-load Current: 24mA

  Stall Current: 420mA

  Speed: 6400 RPM

• 10mm Shaft Length:

Customizable for lower speeds (please specify requirements when ordering).

• 15mm Shaft Length:

Voltage Range: 3V–12V

Current Range: 0.12A–0.18A

Speed Range: 1100–4200 RPM

• 22mm Shaft Length:

  3V Operation:

  No-load Current: 10mA

  Stall Current: 150mA

  Speed: 2100 RPM

  6V Operation:

  No-load Current: 14mA

  Locked Current: 400mA

  Speed: 4300 RPM

RF-310TA-11400 Motor Micro Brush DC Electric Motor Data Table

Why Choose Lihua Motor

• *** Trusted Industry Leader ***
  With over 15 years of expertise, we specialize in designing, manufacturing, and exporting high-quality DC Brushed motors to clients worldwide.
• *** Customization Services ***
  We offer OEM and ODM solutions to meet your unique motor specifications and application needs.
• *** Sample Development ***
  Our dedicated sample workshop ensures quick turnaround times, with standard samples ready in approximately 7 days. For popular models, the process may take up to 15 days.
• *** Production Capacity ***
  We boast a monthly production capacity exceeding 300,000 units, supported by a skilled team of R&D engineers who provide expert guidance and innovative solutions.
• *** Reliable Delivery ***
  We guarantee fast delivery within 15 to 40 days, depending on order quantity and motor type. Even during the COVID-19 pandemic, we maintained a 99% on-time delivery rate.
• *** Uncompromised Quality ***
  Our motors are renowned for their exceptional performance, affordability, and durability. Backed by a one-year warranty, our products have a defect rate of less than 1. In the rare event of issues, we offer replacements in your next order.
