RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor
RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor
RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor
RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor
RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor
RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor
Specifications
Brand Name :
Lihua Motor/HCS Motor
Model Number :
RE-140RA-12240
Certification :
ISO9001/CE/RoHs/Reach
Place of Origin :
Dongguan,China
MOQ :
3000PCS
Payment Terms :
T/T
Supply Ability :
12000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Carton
Motor Model :
RE-140RA
Motor Size :
21*25mm
Shaft Diameter :
2mm
Motor Volt :
1V-36V
Motor Shaft Length :
8mm/As your need
Out Put :
0.2W-3.0W
Weight :
19g (APPROX)
Applications :
Electronic toy motor, Hobby motors, motor for technology education kits and projects.
Description

RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor

Basic Information For RE-140RA-12240

Voltage range: DC 3.0V-6.0V
RF-140RA-12240 Test data:
Voltage:3.0V No-load speed:4800RPM Current:50mA
Voltage:3.7V No-load speed:6000RPM Current:52mA
Voltage:5.0V No-load speed:8200RPM Current:58mA
Voltage:6.0V No-load speed:9800RPM Current:65mA.

Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
Model number: RE-140 Motor
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: ROHS,Reach,IATF16949,ISO9001,CE
Motor size: 25*21mm
Shaft diameter: 2mm
Current range: 78mA
Speed: 12V /16500RPM
Shaft length: 9.8mm
Voltage range: 6V-12V
Model: 140RA-12240

The RE-140RA-12240 is a high-performance round DC motor utilizing Permanent Magnet DC (PMDC) technology, designed for low-voltage applications. This motor supports multiple input voltages (3V, 5V, and 6V) and can reach a maximum speed of 9800 RPM, making it suitable for various small devices and high-precision applications. As a professional motor factory, we offer comprehensive customization services, including adjustments to voltage, speed, torque, and shaft extension, to meet diverse customer needs.

RE-140RA Brushed Motor Electrical Specification

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
RE-140RA-2270 1.5V-3V 1.5V 8100 0.21 0.66 6150 0.66 0.42 28 2.1
3.0V 14200 0.25 1.04 11320 0.98 1.24 53 3.87
RE-140RA-18100 1.5V-3V 1.5V 5700 0.13 0.48 11320 0.37 0.21 19 1.07
3.0V 10900 0.16 0.79 8520 0.57 0.71 37 2.04
RE-140RA-12240 3-6V 3.0V 4800 0.05 0.44 3530 0.14 0.16 17 0.39

It's only typical technicai data for reference, Special requirement can be customized.

Note:1mNm= 1Ncm = 10.2gcm

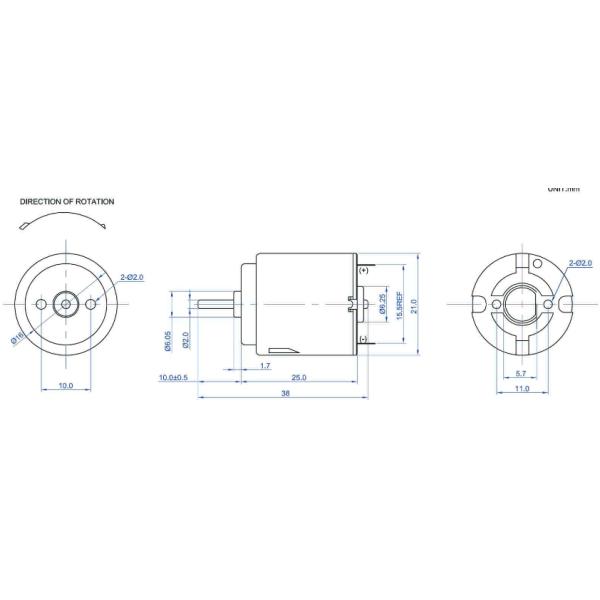

Drawing of RE-140RA DC Motors


RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor

Technical Parameters:

  • Rated Voltage: 3V (supports 5V, 6V,12V or as your request)

  • No-Load Speed: 9800 RPM (customizable)

  • Load Speed: Customizable based on customer requirements

  • Rated Torque: Customizable based on customer requirements

  • Motor Diameter: 21mm

  • Shaft Extension: Customizable based on customer requirements

  • Operating Temperature Range: -20°C to +85°C

RE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC MotorRE-140RA-12240 3V 21mm Round Electric Motor DC 3V 5V 6V 9800RPM PMDC Motor

Application Fields:
The RE-140RA-12240 motor is widely used in the following fields:

  • Household Appliances: Such as electric toothbrushes, beauty devices, and small fans.

  • Toy Models: Such as remote-controlled cars, drones, and robotic toys.

  • Office Equipment: Such as printers, scanners, and automatic staplers.

  • Medical Devices: Such as portable medical instruments and laboratory equipment.

  • Industrial Automation: Such as small robotic arms and conveyor belt drives.
