37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor
Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
GB37Y528/GB37-528
Certification :
CE/RoHs /Reach/IATF16949/ISO9001
Place of Origin :
Dongguan,China
MOQ :
1000Pcs
Payment Terms :
L/C,D/P,T/T,Western Union,D/A
Supply Ability :
10000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Foam Carton
Motor Type :
GB37Y528/GB37-528
Ratio :
10:1, 30:1, 50:1, 90:1, 150:1, 260:1, 450:1, 650:1, 810:1
Rated Volt :
6V 12V 24V
No-load Speed :
1rpm-450rpm can be choose
No-load Current :
≤0.05A
Stall Torque :
1kgf.m-30kgf.m
Description

37mm 12V Motor High Torque Gearbox GM37 528 DC 50RPM To 490RPM Micro Motor

Strong high-Torque Gear Motor Data Sheet Torque:Compared to a typical motor of the same size, the torque production is greatly increased by the gear reduction system, enabling it to drive bigger loads.


Speed Control: This motor's reduction gearbox allows it to produce lower output speeds while preserving or boosting torque, which is crucial for precise motions in automation systems, robotics, and other fields.

Durability: A motor with high-quality construction is often made to last, with sturdy casing to protect the internal components and wear-resistant gears.

Key Features:

  • Operating Voltage: 6V DC to 12V DC (Customizable up to 24 DC upon request).

  • Weight: Approximately 180g (varies with the selected reduction ratio).

  • 528 Motor Size:33mm*30mm(Dia*L)
  • 528Motor Type:RF-528/RK-528
  • Gearbox Diameter:37mm
  • Gearbox Step Height:6mm
  • Shaft Gearbox Diameter:12mm
  • Mounting Screw Holes Size:3mm
  • Distance Between contacter Ends :24.8mm

37mm 500 Rpm 12V DC motor With Gearbox Parameter List

Ratio

Gearbox

No Load

Rated Load

Stall

i : 1

Length

Current

Speed

Current

Speed

Torque

Current

Torque

6.3:1

19.0mm

≤0.2A

1,530rpm

≤2.0A

1,030rpm

0.6kg.cm

≤6.0A

1.6kg.cm

10:1

19.0mm

≤0.2A

960rpm

≤2.0A

650rpm

1.0kg.cm

≤6.0A

2.7kg.cm

18.8:1

21.5mm

≤0.2A

510rpm

≤2.0A

346rpm

1.8kg.cm

≤6.0A

4.8kg.cm

30:1

22.0mm

≤0.2A

320rpm

≤2.0A

215rpm

3.0kg.cm

≤6.0A

7.5kg.cm

50:1

24.0mm

≤0.2A

192rpm

≤2.0A

130rpm

4.8kg.cm

≤6.0A

13.0kg.cm

90:1

24.0mm

≤0.2A

107rpm

≤2.0A

72rpm

8.5kg.cm

≤6.0A

21.0kg.cm

150:1

26.5mm

≤0.2A

64rpm

≤2.0A

43rpm

14.5kg.cm

≤6.0A

33.0kg.cm

260:1

26.5mm

≤0.2A

35rpm

≤2.0A

25rpm

20.0kg.cm

≤6.0A

≥35.0kg.cm; not allowed stalling

450:1

29.0mm

≤0.2A

21rpm

≤2.0A

14rpm

25.0kg.cm

≤6.0A

≥35.0kg.cm; not allowed stalling

630:1

29.0mm

≤0.2A

15.5rpm

≤2.0A

10rpm

30.0kg.cm

≤6.0A

≥35.0kg.cm; not allowed stalling

37mm 50RPM To 490RPM Rpm 24V DC motor With Gearbox Parameter List

Ratio

Gearbox

No Load

Rated Load

Stall

i : 1

Length

Current

Speed

Current

Speed

Torque

Current

Torque

6.3:1

19.0mm

≤0.13A

1,530rpm

≤1.2A

1,030rpm

0.6kg.cm

≤3.5A

1.6kg.cm

10:1

19.0mm

≤0.13A

960rpm

≤1.2A

650rpm

1.0kg.cm

≤3.5A

2.7kg.cm

18.8:1

21.5mm

≤0.13A

510rpm

≤1.2A

346rpm

1.8kg.cm

≤3.5A

4.8kg.cm

30:1

22.0mm

≤0.13A

320rpm

≤1.2A

215rpm

3.0kg.cm

≤3.5A

7.5kg.cm

50:1

24.0mm

≤0.13A

192rpm

≤1.2A

130rpm

4.8kg.cm

≤3.5A

13.0kg.cm

90:1

24.0mm

≤0.13A

107rpm

≤1.2A

72rpm

8.5kg.cm

≤3.5A

21.0kg.cm

150:1

26.5mm

≤0.13A

64rpm

≤1.2A

43rpm

14.5kg.cm

≤3.5A

33.0kg.cm

260:1

26.5mm

≤0.13A

35rpm

≤1.2A

25rpm

20.0kg.cm

≤3.5A

≥35.0kg.cm; not allowed stalling

450:1

29.0mm

≤0.13A

21rpm

≤1.2A

14rpm

25.0kg.cm

≤3.5A

≥35.0kg.cm; not allowed stalling

630:1

29.0mm

≤0.13A

15.5rpm

≤1.2A

10rpm

30.0kg.cm

≤3.5A

≥35.0kg.cm; not allowed stalling

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

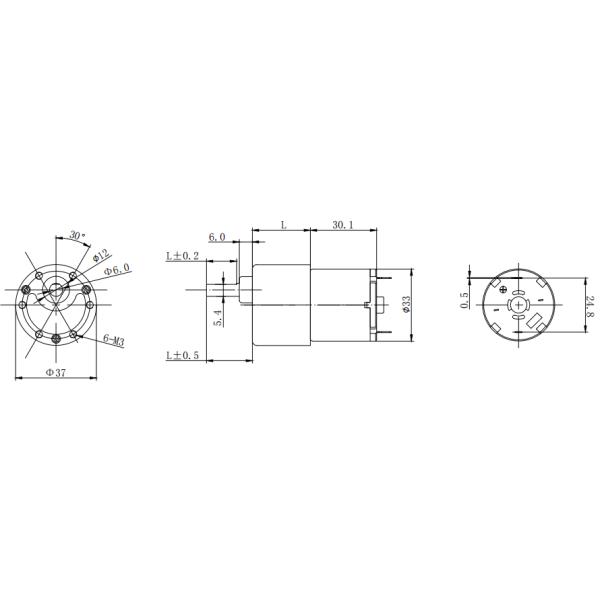

37mm 500 Rpm 12V DC 528Motor With Gearbox Dimensions

37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor

Ratio

6.25-10

18.8-30

43.8-90

102-270

306-976

1179-2928

Gearbox Length Option(L)

19mm

21.5mm

24mm

26.5mm

29mm

31.5mm

Key Components Of GB37-528 Mini Gear Motor Dirver

Gearbox Structure & Functionality

A gear reduction motor integrates a high torque gearbox composed of multiple gears. Its primary role is to reduce the input speed of the drive motor while amplifying the output torque, enabling efficient power transfer for demanding applications.

 37mm 12V High Torque Gearbox Motor GM37 528 DC 50 RPM To 490RPM Micro Motor The stator forms the stationary foundation of a DC gear motor, housing essential parts such as main magnetic poles, commutation poles, a durable frame, and brush assemblies. These elements work together to generate the magnetic field required for rotor movement.

Rotor Assembly

In micro gear motors, the rotor acts as the rotating core. It includes the armature core, armature windings, commutator, and a precision-engineered rotating shaft. This assembly converts electrical energy into mechanical motion, driving the motor’s operation.

Bearings & Worm Gears

Bearings and worm gears are critical in gear reduction motors for supporting rotational motion and power transmission. Bearings ensure smooth, low-friction operation, while worm gears efficiently transfer torque between perpendicular axes, enhancing the high torque gearbox’s reliability and performance.
