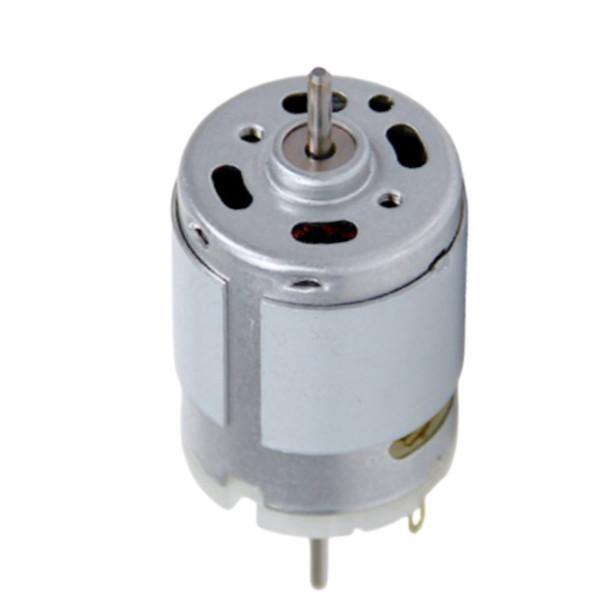

27.7mm 4400rpm RS380 12V DC Electric Motors Dual Shaft Small High Torque Mini Motor

The 380 Motor is a high-performance, compact DC motor designed for high-speed applications such as car models and aircraft models. Operating at 6V–36V, this motor delivers strong power and stable performance, making it ideal for hobbyists and professionals alike.

Key Features

1. High Quality:

   • Made of premium materials with high strength and hardness, ensuring durability and reliability.

   • Features a strong structure and smooth metal surface without visible scratches.

2. High Performance:

   • Delivers a high moment of force and strong power for demanding applications.

   • Maintains a stable rotating speed for consistent performance.

3. Compact & Lightweight:

   • With a small size and lightweight design, it is easy to integrate into space-constrained projects.

4. Low Noise:

   • Engineered for quiet operation, making it suitable for noise-sensitive environments.

5. Cooling Design:

   • Equipped with vent holes to ensure efficient heat dissipation during operation.

RS380 Dual Shaft Motor Techincal Parameters:

• Model: RS-380 double shaft vibrating motor

• Shaft Type: Double Shaft

• Shaft Diameter: 2.3mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter:27.7mm

• Motor Body Length: 37.8mm (Without shaft length)

• Voltage Range: DC 3V-24V

• Front Steps Diameter:10mm

• Front Step Height: 2.8mm

• Diagonal Installation Pitch: 16mm

• Mounting Hole Size: M2.6*0.45

• Mounting Holes: 2 Holes

• No-load Speed Range:
  RS-380SA-22165 Voltage:16.2V Speed:9300RPM Current:200mA
  RS-385SA-16270 Voltage:25.2V Speed:93000RPM Current:110mA
  RS-385SM-2465 Voltage:12.0V Speed:8100RPM Current:0.2
  RS-380SA-18215 Voltage:21.6V Speed:9300RPM Current:130mA
  RS-380SA-14260 Voltage:12V Speed:4400RPM Current:46mA
  RS-385SA-12490 Voltage:12V Speed:2400RPM Current:30mA

RS380 Dual Shaft Motor TN Curve

How to Custom Your Own RS380 High Torque Motor?

To help customers communicate their customization requirements more efficiently and effectively with manufacturers, we are sharing key considerations when ordering custom micro motors:

1. Specify the main specifications and parameters – Clearly define key details such as the motor model or dimensions (length, shaft diameter), voltage, speed, eccentric wheel size and material, gearbox output speed, torque, and lifespan requirements. If you have drawings, parameter sheets, or sample motors, provide them directly to the manufacturer. These basic details enable the manufacturer to assess feasibility for customization.

2. Provide the specific application of the motor – Indicate what product the motor will be used in and describe its working environment. This information helps engineers accelerate the technical evaluation process and propose suitable motor solutions.

3. Specify the required quantity – Customizing micro motors involves a long production cycle with multiple processes. Most manufacturers have minimum order quantity (MOQ) requirements. If the order quantity is too small, it may not meet the production startup threshold.

4. Set an expected target price – If there is a budget constraint, communicate it in advance. This allows the manufacturer to select appropriate materials and design solutions to align with cost expectations. Micro motors are customized products, and different customers have different quality and performance
