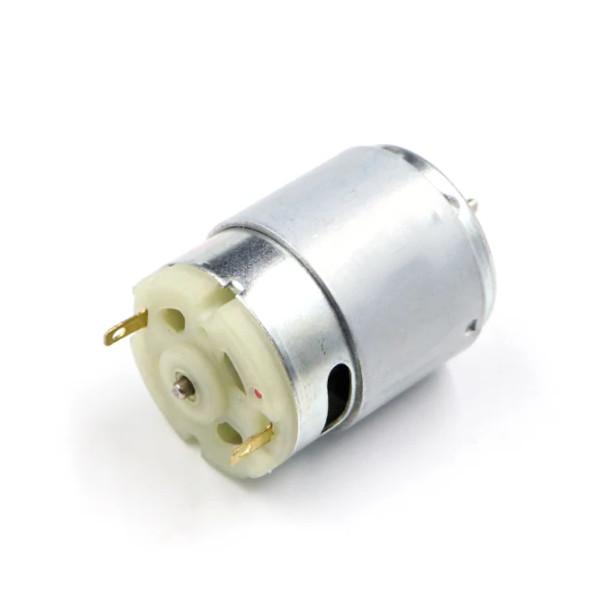

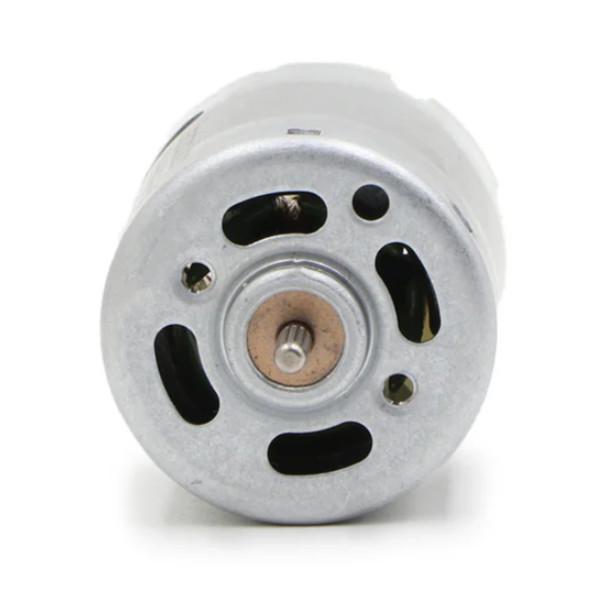

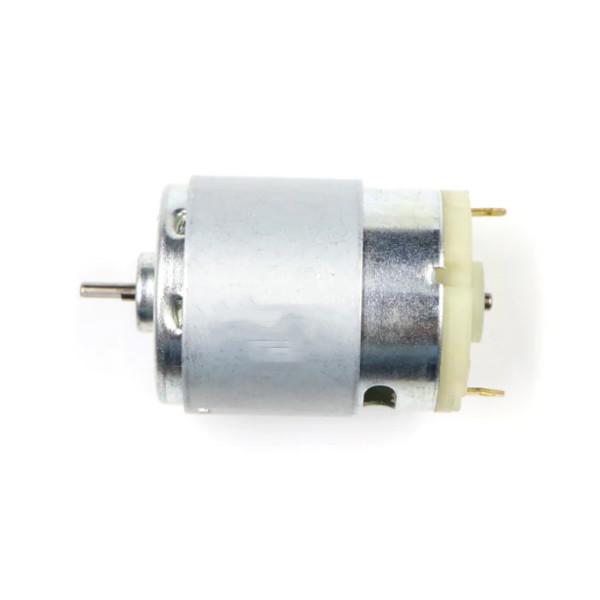

6V 12V 27.7mm 6000rpm-12000rpm RS385 DC Motor Double Shaft Small High Torque Motor

The RS385 Double Shaft Motor is a high-speed, versatile DC motor designed for demanding applications. Operating at 12V–24V, this motor delivers speeds ranging from 4,000 RPM to 8,000 RPM, making it ideal for projects requiring precision and power.

Key Features:

• High-Speed Performance: Delivers speeds up to 8,000 RPM for efficient operation.

• Wide Voltage Range: Compatible with 3V–36V, offering flexibility for various power supplies.

• Double Shaft Design: Features two output shafts for versatile coupling and easy integration.

• Anti-Magnetic Shield: Reduces electromagnetic interference, ensuring stable performance in sensitive applications.

• Carbon Brush Commutation: Provides reliable and efficient operation with low electrical noise.

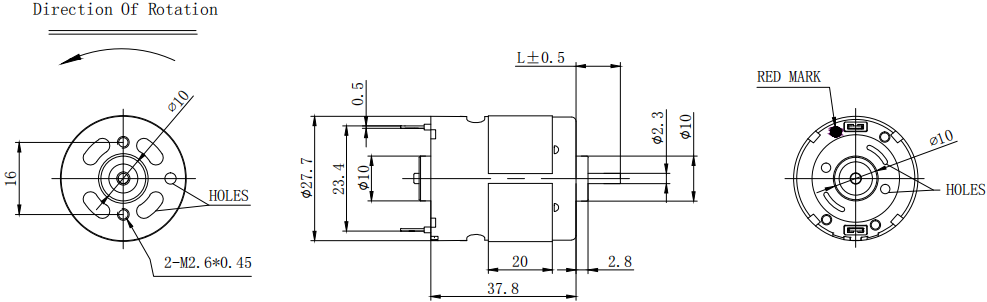

RS385 Dual Shaft Motor Techincal Parameters:

• Model: RS-380 double shaft vibrating motor

• Shaft Type: Double Shaft

• Shaft Diameter: 2.3mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter:27.7mm

• Motor Body Length: 37.8mm (Without shaft length)

• Voltage Range: DC 3V-24V

• Front Steps Diameter:10mm

• Front Step Height: 2.8mm

• Diagonal Installation Pitch: 16mm

• Mounting Hole Size: M2.6*0.45

• Mounting Holes: 2 Holes

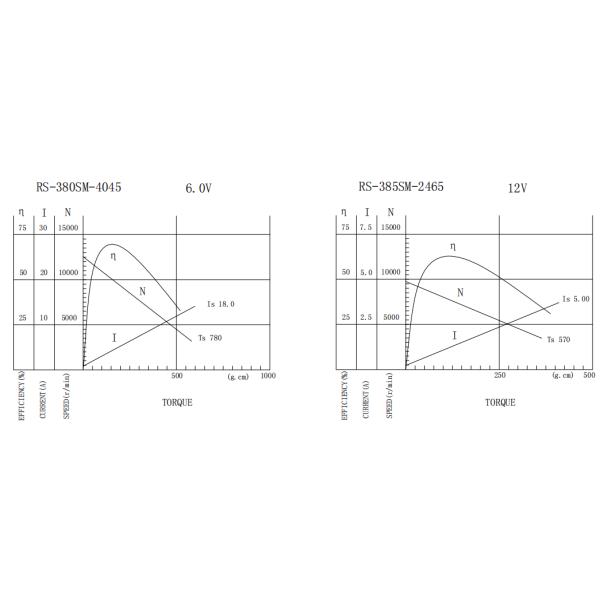

• No-load Speed Range:
  RS-385SM-4045 Voltage:6.0V Speed:12700RPM Current:0.48A
  RS-385SM-3270 Voltage:12.0V Speed:13600RPM Current:0.34A
  RS-385SM-2465 Voltage:12.0V Speed:8100RPM Current:0.2
  RS-385SM-09440A Voltage:24V Speed:2700RPM Current:0.2A
  RS-385SM-12210 Voltage:24V Speed:5300RPM Current:0.42A
  RS-385SM-11270 Voltage:24V Speed:4250RPM Current:0.42A

Applications of the RS385 Double Shaft Motor

1. Automatic Doors:

   • The RS385 motor is ideal for automatic door systems due to its high speed, enabling quick and smooth opening and closing.

2. Power Tools:

   • Its high efficiency and compact size make it suitable for electric tools like drills and sanders.

3. Robotics:

   • The RS385 motor is widely used in robotics for driving joints, arms, and other components, thanks to its high speed and small size.

4. Smart Home Devices:

   • It powers devices like electric curtains, smart toilet covers, and other smart home appliances.

5. Other Applications:

   • The RS385 motor is also used in medical devices, security systems, toys, water pumps, air pumps, and miniature water pumps.

How to Choose the Right RS385 Double Shaft Motor

1. Motor Type:

   • The RS385 motor is available in brushed and brushless versions.

     • Brushed Motors: Lower cost and higher efficiency but shorter lifespan.

     • Brushless Motors: Longer lifespan and higher efficiency but at a higher cost.

2. Motor Parameters:

   • Consider factors like voltage, speed, power, and torque to match your application requirements.

3. Brand and Quality:

   • Choose high-quality RS385 motors from Lihua Motor/HCS Motors to ensure reliable performance and durability.

4. Operating Environment:

   • Evaluate environmental factors such as temperature, humidity, and vibration levels to select the most suitable motor.
