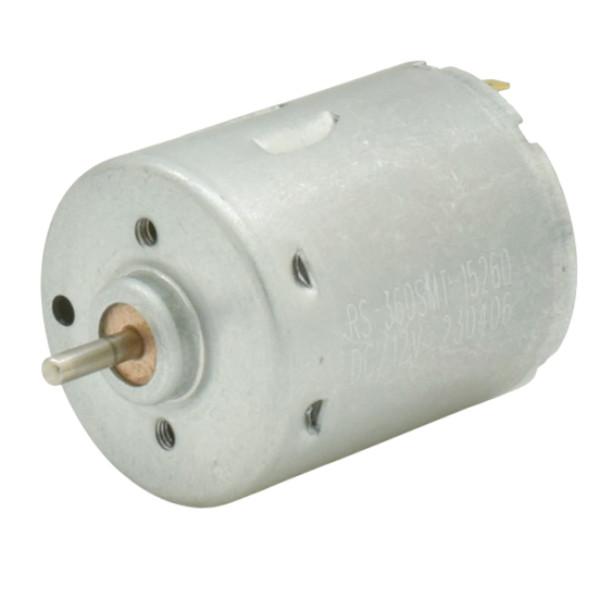

27.7mm 6000rpm RS360 12V 24V Small DC Electric Motors Dual Shaft For Hair Drier

The RS360 Dual Shaft Motor is a versatile and high-performance micro DC motor designed for a wide range of applications. With a 27.7mm diameter and a speed of up to 6,000 RPM, this motor is perfect for DIY projects, robotics, model building, and more. Operating at 12V–24V, it delivers reliable and efficient performance in a compact package.

Key Features

1. Dual Shaft Design:

   • Features front and rear shafts (2.3mm diameter) for versatile coupling options and easy integration into various systems.

2. High-Speed Performance:

   • Delivers speeds of 2,400 RPM at 6V and 81,000 RPM at 12V, making it ideal for high-speed applications.

3. Compact & Lightweight:

   • With a motor diameter of 27.7mm and a length of 32.5mm, it is perfect for space-constrained projects.

   • Weighs approximately 55 grams, ensuring easy handling and installation.

4. Durable & Reliable:

   • Made with high-quality materials, the motor is shockproof, wear-resistant, and high-precision, ensuring long-lasting performance.

5. Wide Voltage Range:

   • Compatible with 6V–24V, offering flexibility for various power supplies and applications.

RS360 Dual Shaft 12v DC Electric Motors Techincal Parameters:

• Model: RS-360 double shaft vibrating motor

• Shaft Type: Dual Shaft

• Shaft Diameter: 2.3mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter:27.7mm

• Motor Body Length: 32.3mm (Without shaft length)

• Voltage Range: DC 3V-24V

• Front Steps Diameter:10mm

• Front Step Height: 2.6mm

• Diagonal Installation Pitch: 16mm

• Mounting Hole Size: M2.6*0.45

• Mounting Holes: 2 Holes

• No-load Speed Range:
  RS-360SM-18245 Voltage:12V Speed:5900RPM Current:90mA
  RS-360SA-15320 Voltage:12V Speed:6000RPM Current:95mA
  RS-360SMT-18215 Voltage:18.0V Speed:11800RPM Current:190mA
  RS-360SMT-11500 Voltage:24V Speed:6800RPM Current:65mA
  RS-360SMT-11510 Voltage:24V Speed:6100RPM Current:70mA
  RS-360SMT-18230 Voltage:12V Speed:5900RPM Current:75mA

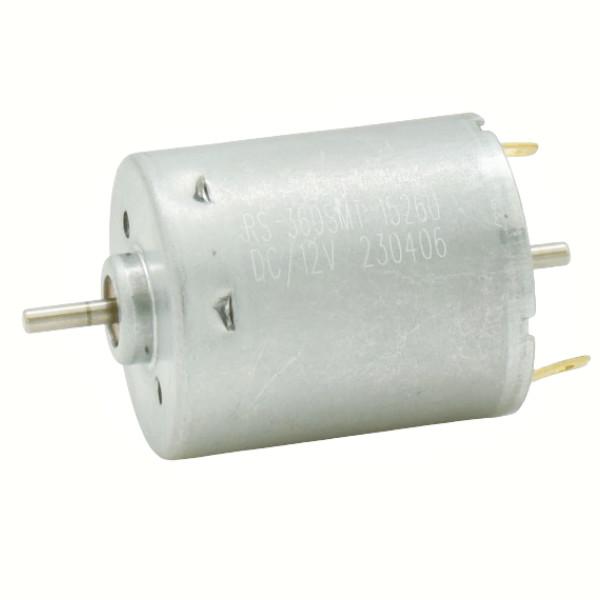

RS360SA Dual Shaft DC Electric Motors

RS360SM DC Electric Motors

RS360 Mini Motor TN Curve

How to Customize Your Own RS360 High Torque Motor?

To help customers communicate their customization needs more effectively with manufacturers, here are key considerations when ordering custom micro motors:

1. Specify Key Specifications and Parameters

Clearly define the motor's main specifications, including:

• Motor Model or Dimensions: Length, shaft diameter, and overall size.

• Electrical Parameters: Voltage, speed, and torque requirements.

• Eccentric Wheel: Size and material preferences.

• Gearbox: Output speed and torque specifications.

• Lifespan: Expected operational lifespan under specific conditions.

If available, provide technical drawings, parameter sheets, or sample motors to the manufacturer. These details help assess the feasibility of customization and ensure accurate design.

2. Describe the Motor's Application

Provide detailed information about the motor's intended use, such as:

• Product Type: What device or system will the motor be used in?

• Working Environment: Operating conditions (e.g., temperature, humidity, vibration levels).

This information helps engineers propose suitable motor solutions and optimize the design for your specific application.

3. Specify the Required Quantity

Customizing micro motors involves a complex production process with multiple steps. Most manufacturers have minimum order quantity (MOQ) requirements. Ensure your order quantity meets the production threshold to avoid delays or additional costs.

4. Set a Target Price

If you have a budget constraint, communicate it upfront. This allows the manufacturer to select appropriate materials and design solutions that align with your cost expectations while maintaining quality and performance.
