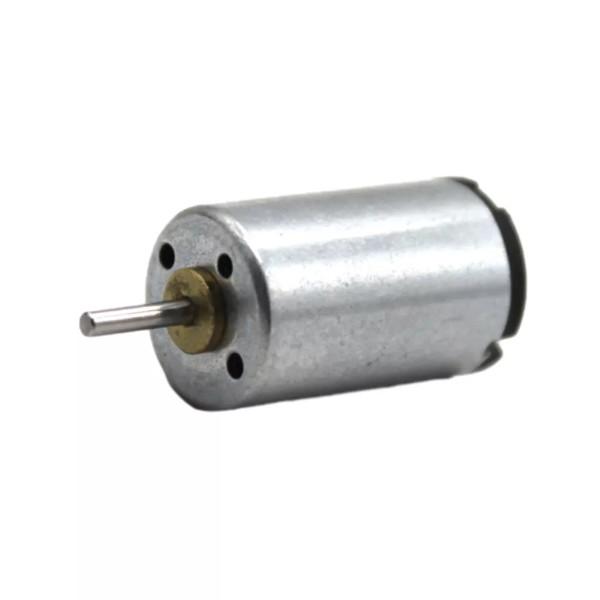

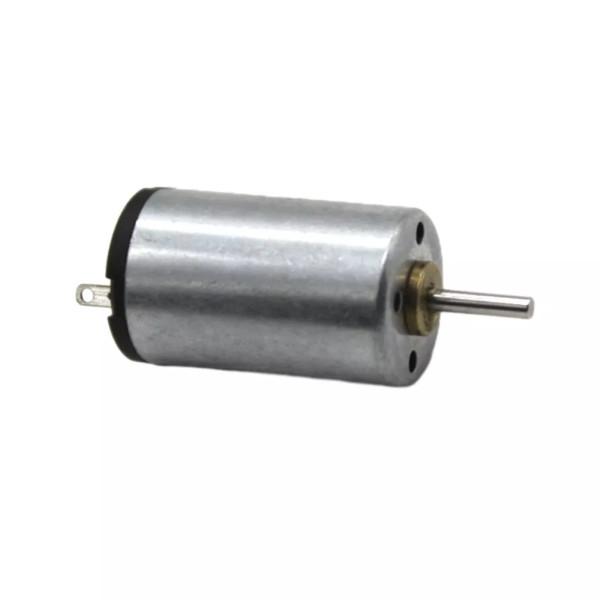

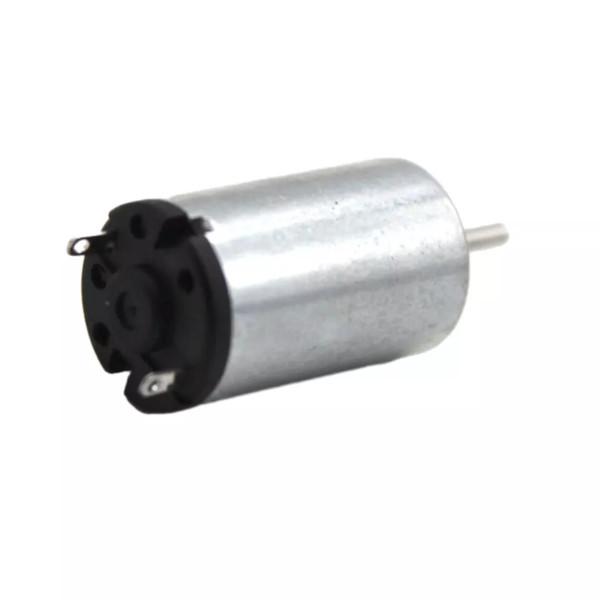

RF-1220CA 12mm Small DC Motor 2.4V 3V 15000Rpm Electric Motor For Project DIY

The RF-1220CA mini motor is a brand-new, original high-speed motor designed for demanding applications. Known for its high power output and efficient performance, this motor is widely used in model building, prescious instrument, and other high-speed projects.What's more RF-1220 motors with other connecters also can be following products:

The application scope of RF-1220 motor mainly includes the following aspects:
Stage laser light: RF-1220 motor is often used in DC motors of stage laser lights, providing stable power support
Personal leisure products: This motor is also suitable for personal leisure products such as massagers, adult products, sex toys, etc., providing vibration functions.(RF-1220 Vibrating Motor)
Eye massager: RF-1220 motor is used as a vibration motor for eye massager to help relieve eye fatigue.(RF-1220 Vibrating Motor)
Electric toys: It is also widely used in entertainment equipment such as children's toys and electric fans.

RF-1220CA Micro Motor Techincal Parameters:

• Model: RF-1220Motor

• Shaft Diameter: 1.5mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 12mm±0.1mm

• Motor Body Length: 20mm±0.3mm (Without Shaft Length)

• Voltage Range: DC 1.5V-6V

• Front Steps Diameter:5mm

• Front Step Height: 1 mm

• Diagonal Installation Pitch: 8.5mm

• Mounting Hole Size: M1.6*0.35mm

• Mounting Holes: 2 Holes

• No-load Speed Range:
  Voltage:2.4.V No-load Speed:15000RPM Current:0.12A
  Voltage:2.4V No-load Speed:16000RPM Current:0.14A
  Voltage:7.5V o-load Speed:10000RPM Current:0.04A

RF-1220CA 12mm Small DC Motor 2.4V 3V 15000Rpm Electric Motor Dimension

RF-1220CA 12mm*20mm Mini Motor Applications

RF-1220 motor small size, high speed, 1.5-3V voltage can be powered, can be used to make small fans, small wind vehicles and other small production use, is a primary and secondary school students handmade choice, good motor accessories.

Specification:

Motor diameter: 12mm

Motor length: 20mm

Motor shaft diameter: 1.5mm

Shaft length: 7mm

Voltage range: 1.5-3V

Motor speed: 9500 RPM at 3V

Current parameter: no load 0.03A, load 0.22A

RF-1220 Mini Motor: Versatile Applications in Massagers and DIY Devices

The RF-1220 mini motor is a compact and versatile brushed DC motor that can be combined with various vibrating components, making it ideal for use in a wide range of products, including massagers (such as beauty massager devices and adult products) and DIY projects. Below is an overview of its specifications and applications:

Product Specifications:

1. Model: RF-1220

2. Voltage: DC 6V

3. Speed: 4000 RPM

4. Shaft Diameter: 1.5mm

5. Type: Brushed Vibration DC Motor

Applications in Massagers:

• Beauty Massager Devices:
  The RF-1220 mini motor's compact size and reliable vibration make it suitable for beauty massagers, such as facial massagers or handheld skincare devices. Its smooth operation ensures a comfortable user experience.

• Adult Products:
  The motor's ability to generate consistent vibrations makes it a popular choice for adult products, where precise and adjustable vibration levels are essential.

Applications in DIY and Hobby Projects:

1. DIY Toys:
   The RF-1220 motor is widely used in small DIY toys, such as miniature cars or robotic models, where its compact size and efficient performance are highly valued.

2. USB Fan Motors:
   This motor can be integrated into small USB-powered fans, providing a lightweight and energy-efficient cooling solution.

3. Small Robot Motors:
   Its high speed (4000 RPM) and small form factor make it an excellent choice for powering small robotic components or mechanisms.

4. Car Model Motors:
   The RF-1220 motor is commonly used in remote-controlled (RC) car models, where its reliability and performance ensure smooth operation.

Key Features:

• Compact Design: With a 1.5mm shaft diameter, the motor is ideal for small-scale applications.

• High Speed: Operates at 4000 RPM, providing efficient performance for vibrating and rotating mechanisms.

• Wide Voltage Range: Works effectively at 3V-6V, making it adaptable to various power sources.

• Versatility: Suitable for both commercial products (e.g., massagers) and DIY projects (e.g., toys, robots).
