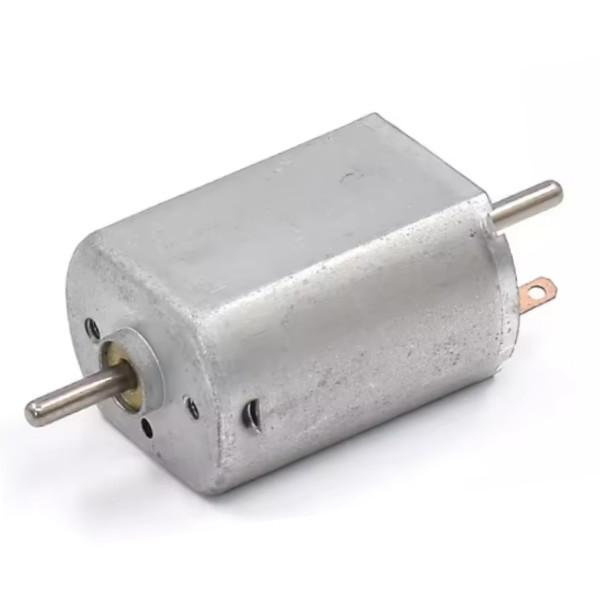

20mm FK-130 6V 12V 24V 6000RPM-23000RPM Dual Shaft High Speed Small Motor for Shaver

The FK-130SH Dual Shaft Motor is a high-speed, compact DC motor designed for precision applications requiring reliable performance. Operating at 12V, 18V, or 24V, this motor delivers an impressive speed of up to 19,000 RPM, making it ideal for high-speed projects. With a 20mm diameter and a dual 2mm shaft design, it offers versatile coupling options for seamless integration into various mechanical systems.

This micro motor is perfect for applications such as DIY robotics, model trains, small-scale automation, and high-speed electric devices. Its compact size and high-speed capabilities make it a popular choice for hobbyists and engineers alike. Whether you're building a high-speed train model or a precision-driven robotic arm, the FK-130SH Dual Shaft Motor provides the power and flexibility you need.

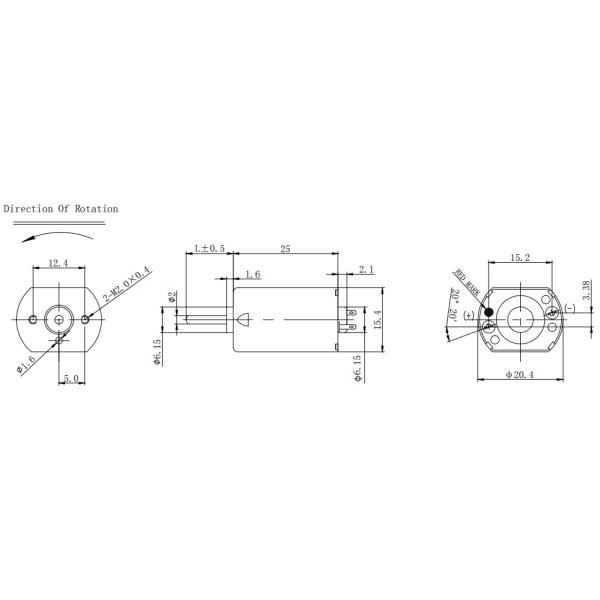

FK-130 Dual Shaft Motor Key Features:

• Model: FK-130 Motor

• Shaft Type: Double Shaft

• Shaft Diameter: 2mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 20mm

• Motor Body Length: 25mm

• Voltage Range: DC 3V-24V

• Front Steps Diameter: 6mm

• Front Step Height: 1.6 mm

• Diagonal Installation Pitch: 12.4 mm

• Mounting Hole Size: M2.0

• Mounting Holes: 2 Holes

• No-load Speed Range: Rated 3.7V

  • FK-130SH-16140 7500rpm Io≤130mA

  • FK-130SH-17130 7150rpm Io≤110mA

  • FK-130SH-16150 6300rpm Io≤95mA

  • FK-130SH-19110 8500rpm Io≤150mA

• No-load Speed Range: Rated 12V

  • 14500±8%rpm Io≤100mA

  • 19500±8%rpm Io≤70mA

  • 15000±8%rpm Io≤110mA

• No-load Speed Range: Rated 24V

  • 13500rpm Io≤40mA

  • 13500rpm Io≤40mA

  • 8900rpm Io≤32mA

  • 17000rpm Io≤70mA

Application Scenarios of FK-130 6V 12V 24V FK-130 Dual Shaft Motor

The FK-130SH micro motor is a versatile and high-performance component widely used across various industries. Below are its key application scenarios:

1. Small Household Appliances

The FK-130SH micro motor is extensively used in small household appliances, such as:

• Electric Toothbrushes: Provides high-speed rotation for effective cleaning.

• Vacuum Cleaners: Drives compact suction mechanisms.

• Electric Shavers: Ensures smooth and precise operation.

Its high-speed performance, low noise levels, and compact size make it an ideal driving component for small appliances.

2. Manufacturing Industry

In the manufacturing sector, the FK-130SH motor is used to power various equipment, including:

• Machine Tools: Ensures precise and efficient operation.

• Automated Production Lines: Drives conveyor belts and assembly systems.

• Packaging and Printing Machinery: Provides reliable motion control.

• Industrial Electric Tools: Powers compact and portable tools.

3. DIY Robotics

The FK-130SH motor plays a crucial role in DIY robotics, where it is used to drive:

• Flexible Joints: Enables smooth and precise movement.

• Small Arms and Fingers: Powers compact robotic components.

Its small size and high torque make it perfect for creating agile and efficient robotic systems.

4. Medical Devices

In the medical field, the FK-130SH motor is widely used in devices such as:

• Blood Glucose Meters: Ensures accurate and reliable operation.

• Respirators: Drives air compression mechanisms.

• Injectors: Provides precise dosing control.

• Medical Robots: Powers compact and precise robotic systems.

When combined with micro air pump components, the FK-130SH motor becomes an essential driving element in medical equipment, thanks to its high precision, low vibration, and quiet operation.

Important Notes:

1. Polarity: The motor has clearly marked positive and negative terminals. The side with the red dot indicates the positive pole. Ensure correct wiring during installation to avoid damage.

2. Voltage Compatibility: The motor is designed for DC 12V-24V. Using voltages outside this range (e.g., 12V) may cause the motor to burn out. Always verify the voltage before use.

3. Manual measurements may have a tolerance of 1-2 mm. We appreciate your understanding.
