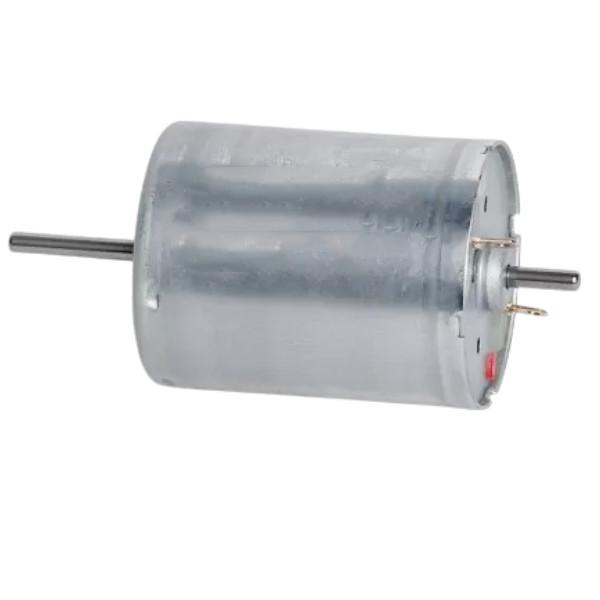

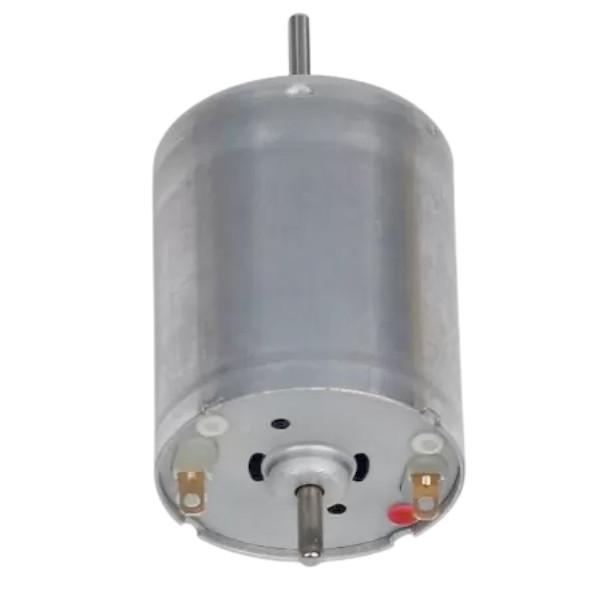

24.4mm RK-370 6V 12V 24V 2500RPM-6000RPM Dual Shaft High Speed Small Motor for Air Pump

The RK-370 Dual Shaft Motor is a brand-new, original high-speed motor designed for demanding applications. Known for its high power output and efficient performance, this motor is widely used in model building, water bullet guns, and other high-speed projects.

Key Features:

• High-Speed Operation: Delivers exceptional speed for dynamic performance.

• High Copper-Containing Carbon Brushes: Ensures efficient commutation, durability, and low electrical noise.

• Dual Shaft Design: Features two 2mm diameter shafts, each 15mm long, for versatile coupling options.

• High Power Output: Requires a large current power supply or power lithium battery for optimal performance.

• Compact & Lightweight: Weighs approximately 50g, making it easy to integrate into various projects.

RK-370 Dual Shaft Motor Techincal Parameters:

• Model: RK-370 Motor

• Shaft Type: Double Shaft

• Shaft Diameter: 2mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 24.4mm

• Motor Body Length: 30.8mm

• Voltage Range: DC 3V-24V

• Front Steps Diameter:6.4mm

• Front Step Height: 1.5 mm

• Diagonal Installation Pitch: 17mm

• Mounting Hole Size: M2.5

• Mounting Holes: 2 Holes

• No-load Speed Range:
  Voltage:3.0V Speed:11000RPM Current:0.54A
  Voltage:5.0V Speed:18500RPM Current:0.60A
  Voltage:7.5V Speed:27500RPM Current:0.76A
  Voltage:12V Speed:44000RPM Current:1.10A

Applications of the RK-370 Motor

1. Power Tools

The RK-370 motor is commonly used in electric screwdrivers, where its high speed and torque are essential for driving screws efficiently.

2. Household Appliances

In small household appliances, the RK-370 motor is often used in water pumps and air pumps, providing stable power output for consistent performance.

3. Office Equipment

In office automation devices, the RK-370 motor is applied in printers and copiers, ensuring smooth and reliable operation.

4. Beauty Devices

The RK-370 motor is widely used in beauty instruments, such as facial devices and micro air pumps, where its high-speed performance enables strong suction and efficient operation.

5. Toys and Gaming Devices

In children's toys and bladeless fans, the RK-370 motor provides sufficient power and speed to drive their operation effectively.

6. Medical Devices

The RK-370 motor is also used in medical equipment, such as air pressure wave shoulder massagers, where it powers the air pump mechanism for therapeutic purposes.

Technical Specifications of the RK-370 Motor

• Dimensions: Typically 37mm × 50mm.

• Input Voltage: Generally 3V to 24V (may vary by manufacturer and model).

• Rated Current: Usually 0.2A to 1.5A.

• No-Load Speed: Typically 5,000 RPM to 30,000 RPM.

• Rated Torque: Usually 0.05 N.m to 0.3 N.m.

• Output Power: Typically 1W to 10W.
