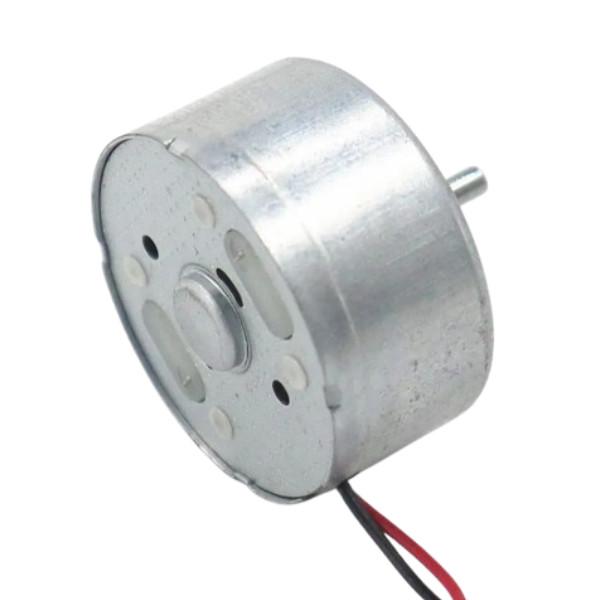

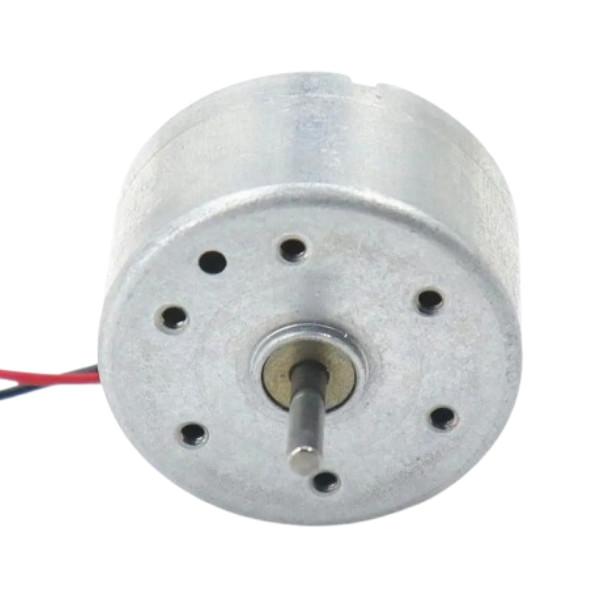

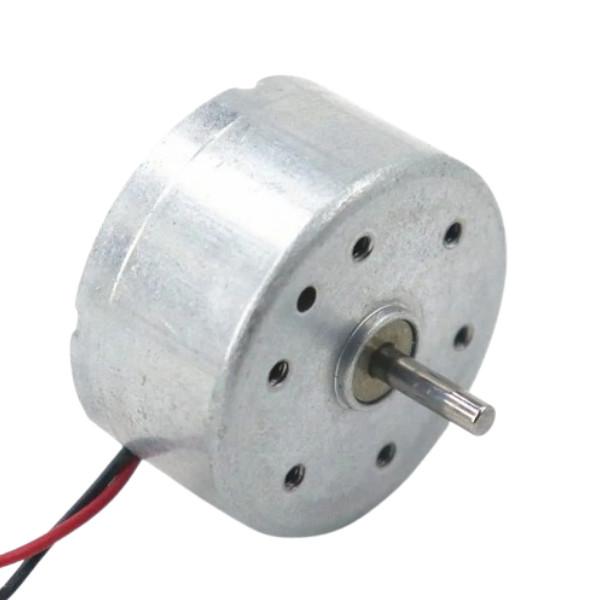

1.9V 2V 6V 3500rpm-6500rpm High Speed RF-300CA-11440 Miniature DC Motor DIY Engine

24mm RF-300 Round Brushed DC Electric Motor Datasheet

24mm RF-300 Round Brushed DC Electric Motor Drawing

Notes:

Custom Service
1.Motor Direction of rotation can be design (CCW/CW)

2.Out shaft Length (L) can custom

3.Length / Materials of motor cables can be customized

4.Voltage ,Current, speed,torque ,power

5.Above RF-300 motor sheet is just reference,model name also can be change as your need.

Wide Range of Applications of RF-300CA Micro DC Motor

The RF-300CA micro DC motor has a wide range of applications, mainly including the following areas:

• Adult Products and Beauty Devices: Due to its compact and lightweight design, the RF-300CA micro DC motor is commonly used in adult products and beauty devices, such as massagers and vibrators.

• 3C Products: These products typically require miniaturized components. The RF-300CA motor is suitable for various 3C (computer, communication, and consumer electronics) products, such as portable devices and small mechanical equipment.

• DIY Enthusiasts and Engineers: The RF-300CA motor is also ideal for DIY enthusiasts and hobbyists. It can be used in creative projects such as portable fans, automatic rotating display stands, or small remote-controlled cars.

Technical Specifications and Performance Features

The technical parameters of the RF-300CA micro DC motor include:

• Rated Voltage: 1.0–12V
• Size: 12.5×24.4mm(L*D)
• Minimum Holding Torque: 1 N·m
• Motor Drive Type: Electromagnetic field
• Series: Brushed motor
• Product Type: Brushed DC motor
• Rated Speed: 12,000 rpm
• Rated Torque: 0.5 N·m
• Rated Current: 0.02 A
• Rated Power: 0.1 W
• Application Scope: Adult products, beauty devices, etc.

Design and Performance Advantages

The RF-300CA micro DC motor offers the following advantages:

• Compact Size: The miniature motor is space-saving and ideal for applications with limited installation space.
• Lightweight: Small in size and light in weight, making it easy to carry and install.
• DC Drive: Motor speed and torque can be easily adjusted by varying voltage or current, offering flexible control.
• High-Speed Performance: Micro DC motors can typically achieve high rotational speeds and respond quickly.
• High Efficiency: Efficient conversion of electrical energy into mechanical energy, reducing energy loss and improving overall performance.
• Low Noise: Operates with lower noise compared to larger motors.
• High Reliability: Simple structure, low maintenance requirements, and high reliability.
