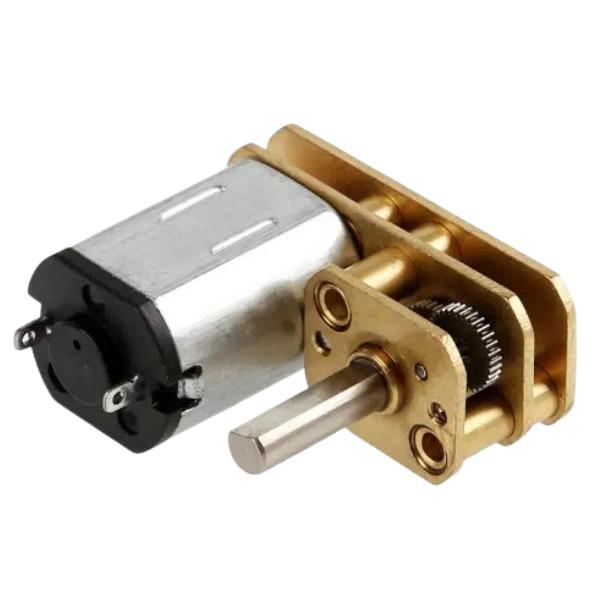

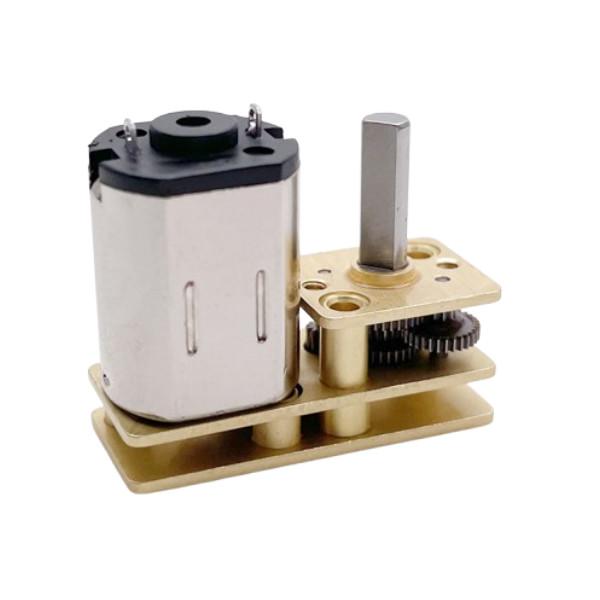

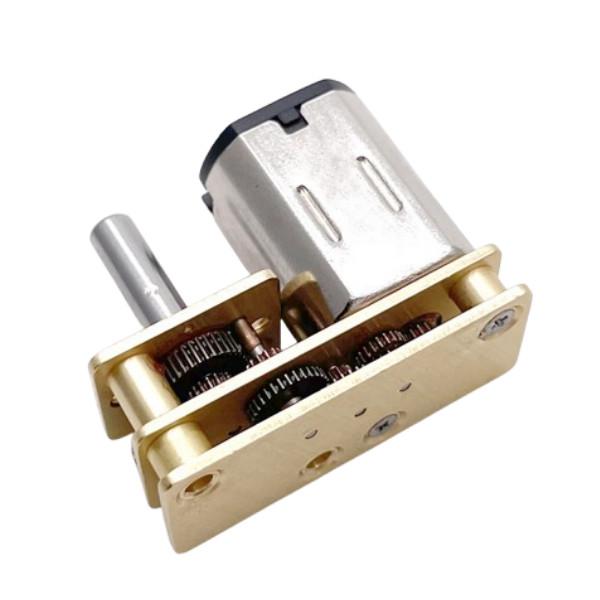

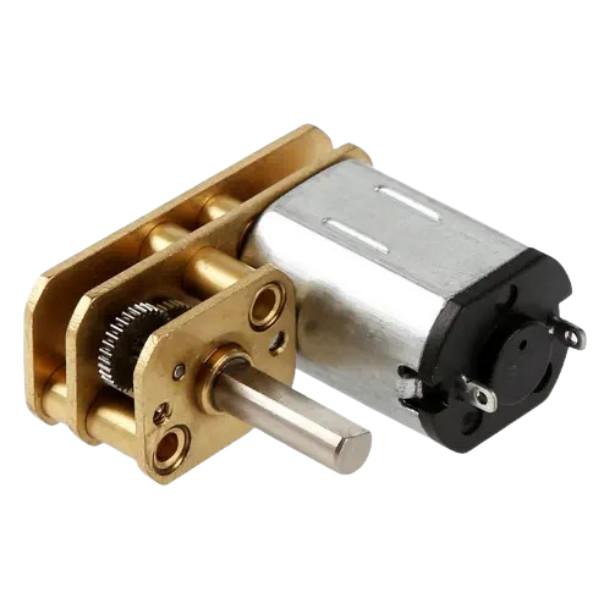

DC12V N20 Geared Motor 30rpm 6V Gear Reduction Electric Motor For Robot Door Lock

The DC12V N20 Geared Motor with a 30RPM output speed is a compact, high-performance gear reduction motor ideal for precision control applications. Featuring a durable stainless steel gearbox and permanent magnet DC motor, this unit offers excellent torque output and smooth operation. The N20 gear motor is specifically designed for small-scale mechanical systems that require high torque and controlled speed, making it perfect for robotic arms, electronic door locks, smart locks, vending machines, and DIY automation projects.

The motor operates efficiently at DC 6V–12V, with an optimized reduction ratio that delivers stable rotational speed and reliable torque. At 6V, it delivers a typical speed of 30RPM and ensures consistent torque under load. This motor’s compact size and lightweight design make it highly adaptable for integration into limited-space environments. The 3mm diameter output shaft allows easy coupling with wheels, gears, or customized mechanical components.

Built with high-precision metal gears, this motor resists wear and ensures long service life, even under frequent usage. It also features excellent stall characteristics, allowing the motor to perform well under sudden resistance or uphill conditions. The low no-load current ensures energy efficiency, making it ideal for battery-powered devices.

Model : N20 Gear Motor
Voltage : DC 3V 6V 12V
Revolving speed:
15 RPM / 25RPM/ 35RPM/ 50 RPM / 75 RPM / 100 RPM / 125 RPM / 150 RPM / 200 RPM / 250 RPM / 300RPM / 500 RPM
3V : 15RPM / 25RPM / 30RPM / 35RPM / 75RPM / 100RPM /200RPM /300RPM /400RPM /500RPM /1000RPM
6V : 50 RPM / 30 RPM / 60RPM / 70RPM / 100 RPM / 200 RPM /300RPM /400RPM /500RPM /1000RPM / 2000RPM
12V : 60 RPM / 100 RPM / 200 RPM / 300 RPM / 400 RPM / 500 RPM /1000 RPM / 2000RPM
Motor size : Approx.12 x15mm (Dia.*H)

Gear Box Size:10mm*12mm
Shaft size : Approx. 10x 24mm (Dia.*L)

3V–12V Mini N30 Motor Gearbox DC Electric Lock Parameter List & Drawing

Single N20 Motor without Gearbox Technical Data

 Note: all reduced no-load speeds have a tolerance of ±5%.

DC12V N20 Geared Motor 30rpm 6V Gear Reduction Electric Motor Key Points and Applications

Key Features:

• High-quality N20 brushed DC motor with metal gearbox
• Compact and lightweight, easy to mount in small spaces
• High torque output for robotic and locking mechanisms
• Stable operation with low noise and low current consumption
• Ideal for DIY robotics, smart home automation, and electronic door locks

Applications:

• Smart electronic door locks
• DIY robotic arms and mechanical claws
• Miniature automation devices
• Electric curtain and window mechanisms
• Coin-operated vending machines
• Home automation modules and electronic valves
• Financial equipment and office automation tools

This DC12V N20 Geared Motor 30RPM is your reliable solution for small yet powerful motion control applications. Whether you're building a robotic prototype, automating a lock system, or upgrading your smart home device, this geared motor ensures precision, durability, and performance in one compact unit.
