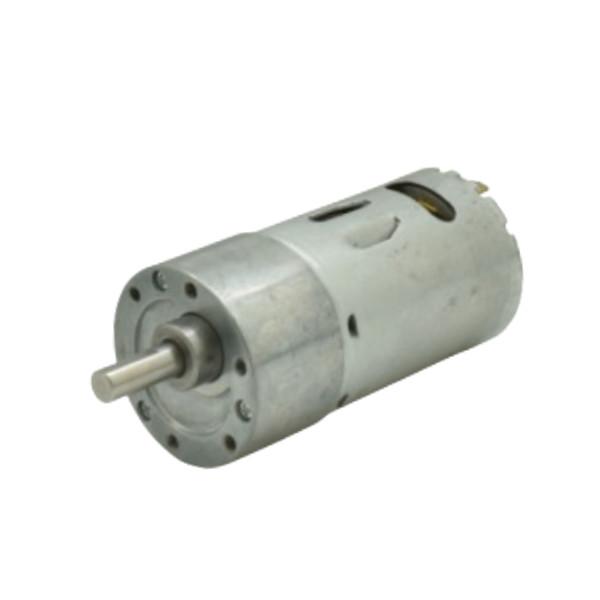

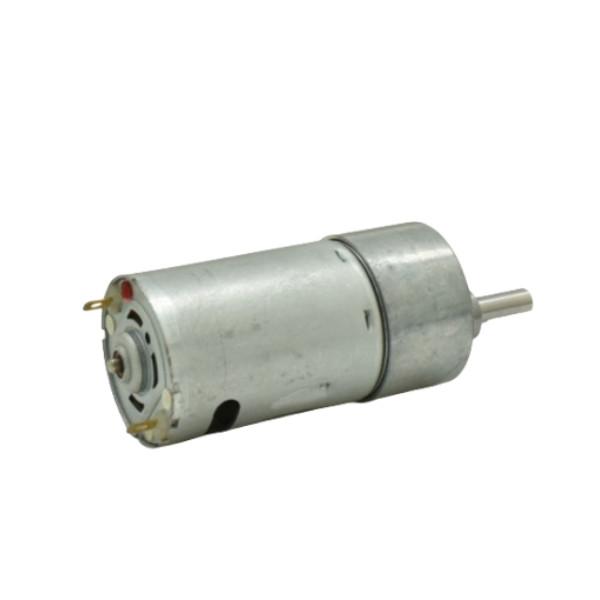

GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
GM37-545 /GA37-545/37GA545
Certification :
ISO9001,CE,RoHs,Reach,SGS
Place of Origin :
Gongguan,China
MOQ :
1000pcs
Payment Terms :
L/C,T/T,D/P,D/A
Supply Ability :
30000pcs/day
Delivery Time :
40-45days
Packaging Details :
Foam Box
Name :
24v Electric Motor With Gearbox
Model :
GA37-545
Voltage Range :
6V-24V
Motor Body Size :
36mm*47.5mm(W*L)
Motor Category :
Geared motor
No-load Speed :
120rpm-600rpm
Stall Torque :
3Kgf.cm-10Kgf.cm
Gear Box Size :
37mm*L (Length can be custom)
Rated Voltage: :
6VDC/12VDC/24VDC
Rotations Per Minute (RPM) :
135/300/608
Shaft diameter :
5.4mm (Approx.)
Shaft Length :
10 mm (Approx.)
Custom Service :
ODM/OEM Accepted
Description

GB37-545 37mm 6V 12V 24V Electric Motor Gearbox Ratio10:1 18.1:1 150:1 450:1

Model : GB37-545 /GA37Y545 /GM37-545 micro metal gearmotor

Gearbox: 37 mm Dia metal spur gear reducer

Motor Size:36mm*50mm (Motor Length can be custom )

Shaft : Φ4mm D-cut 0.5mm, M4, custom

Gear Box Size:37mm*L mm (Gearbox Length Size can be custom)
Shaft size : Approx 5.4 x L mm (Dia.*L)
Nominal Voltage : DC 6V 12V 24V

Operating Voltage:6-24V
Revolving speed:Custom as your need

Revolving Direction:CW/CCW

Encoder : Magnetic encoder available;
Commutation: Carbon brush/Graphite brush
Construction: Micro Permanent Magnet iron cored dc electric motor

GB37-545 37mm Gear Reduction Motor Features and Custom Service

Key Feature Custom Items
Big Large Torque Output Shaft
Higher Efficiency Lead Wire
Out-rotor Structure Connector
Lower Noise Speed
Long Life Mounting Holes

545 Gear Motor Ratio Options:10,18.8,30,50,90,150,270,450,650,810

6V–24V Mini 37mm Gearbox 545 Motor Parameter List & Dimensions

GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1

GB37-545 Motor Custom Option
1.Motor Shaft Length and Shape( D shaft)

2.Gear Box Length

3.Gear Ratio

4.Speed/Volt/Torque/Current

Model: GA37-545 12V 24V DC Gear Motor Paramter List

GB37-545 Gearbox Motor DC12V 19W

Ratio

After Reduction

No Load

Rated Load

Stall

Gearbox

i : 1

PPR

Current

Speed

Current

Speed

Torque

Current

Length

6.3:1

107.71

≤0.2A

900rpm

≤1.5A

760rpm

0.05N.m

≤8.0A

19.0mm

10:1

170

≤0.2A

570rpm

≤1.5A

480rpm

0.09N.m

≤8.0A

19.0mm

18.8:1

319.6

≤0.2A

300rpm

≤1.5A

250rpm

0.09N.m

≤8.0A

20.5mm

30:1

510

≤0.2A

190rpm

≤1.5A

160rpm

0.29N.m

≤8.0A

21.5mm

50:1

850

≤0.2A

112rpm

≤1.5A

95rpm

0.47N.m

≤8.0A

24.0mm

90:1

1,530

≤0.2A

62rpm

≤1.5A

52rpm

0.83N.m

≤8.0A

24.0mm

150:1

2,550

≤0.2A

38rpm

≤1.5A

32rpm

1.42N.m

≤8.0A

26.5mm

270:1

4,590

≤0.2A

21rpm

≤1.5A

15rpm

≤3.4N.m

≤8.0A

26.5mm

450:1

7,650

≤0.2A

12rpm

≤1.5A

10rpm

≤3.4N.m

≤8.0A

29.0mm

650:1

10,710

≤0.2A

8.8rpm

≤1.5A

7rpm

≤3.4N.m

≤8.0A

29.0mm

810:1

13,770

≤0.2A

7rpm

≤1.5A

6rpm

≤3.4N.m

≤8.0A

29.0mm

GM37-545 Motor with Gearbox DC24V 80W

Ratio

After Reduction

No Load

Rated Load

Stall

Gearbox

i : 1

PPR

Current

Speed

Current

Speed

Torque

Current

Length

6.3:1

107.71

≤0.4A

1,800rpm

≤2.3A

1,500rpm

0.1N.m

≤15.0A

19.0mm

10:1

170

≤0.4A

1,150rpm

≤2.3A

950rpm

0.17N.m

≤15.0A

19.0mm

18.8:1

319.6

≤0.4A

610rpm

≤2.3A

510rpm

0.34N.m

≤15.0A

20.5mm

30:1

510

≤0.4A

380rpm

≤2.3A

325rpm

0.53N.m

≤15.0A

21.5mm

50:1

850

≤0.4A

225rpm

≤2.3A

195rpm

0.88N.m

≤15.0A

24.0mm

90:1

1,530

≤0.4A

125rpm

≤2.3A

105rpm

1.56N.m

≤15.0A

24.0mm

150:1

2,550

≤0.4A

75rpm

≤2.3A

65rpm

≤3.4N.m

≤15.0A

26.5mm

270:1

4,590

≤0.4A

42rpm

≤2.3A

38rpm

≤3.4N.m

≤15.0A

26.5mm

450:1

7,650

≤0.4A

25rpm

≤2.3A

23rpm

≤3.4N.m

≤15.0A

29.0mm

650:1

10,710

≤0.4A

17rpm

≤2.3A

15rpm

≤3.4N.m

≤15.0A

29.0mm

810:1

13,770

≤0.4A

14rpm

≤2.3A

13rpm

≤3.4N.m

≤15.0A

29.0mm

*Remarks:

The / in the table indicates that it is not possible to block the rotation, if it occurs, it may lead to damage to the internal gears.

All reduced no-load speeds have a tolerance of ±15%.
