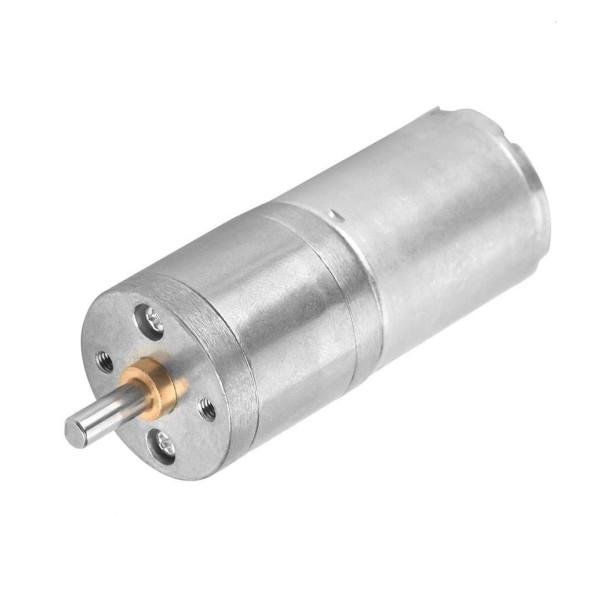

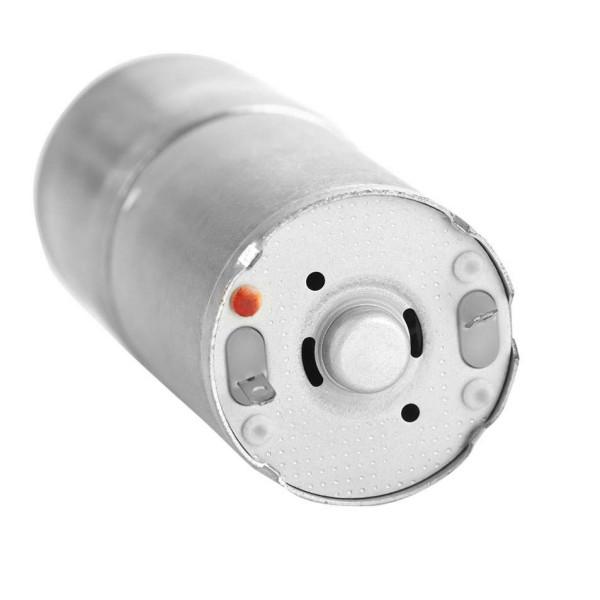

370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor
Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
GM25-370/GA25Y370
Certification :
CE/RoHs /Reach/IATF16949/ISO9001
Place of Origin :
Dongguan,China
MOQ :
1000Pcs
Price :
Negotiation
Payment Terms :
L/C,D/P,T/T,Western Union,D/A
Supply Ability :
10000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Foam Carton
Motor Type :
GM25-370/GA25Y370
Ratio :
4.2:1-499:1
Rated Volt :
3V-24V Custom
No-load Speed :
100Rpm or custom as your need
No-load Current :
≤0.2A
Stall Torque :
20KG.CM Or custom
ODM/OEM :
Accepted
Category :
25mm Gear Motor
Description

25mm 370 Gear Reduction Box 12 Volt DC Motor With Gearbox Small High Torque DC Motor

25mm Gear Motor Specifications

  • Model: GA25-370 PMDC motor with gearbox

  • Gearbox Type: 25mm diameter metal spur gear reducer

  • Motor Size: 24.4mm × 30.8mm ( Diameter × Length)

  • Shaft: Φ4mm D-cut 3.5mm, or customizable

  • Gearbox Dimensions: 25mm (D) × Customizable Length

  • Shaft Size: Approx. 4 × L mm (Diameter × Length)

  • Nominal Voltage: DC 3V /6V / 12V

  • Operating Voltage: 3V - 12V

  • Speed Options:

    • DC 12V gearbox motor 1350 rpm max

    • 11 rpm 12V DC motor with gearbox

    • 6V 1400 rpm max DC motor

    • Other available speeds: 16RPM, 42RPM, 105RPM, 260RPM, 15RPM, 40RPM, 100RPM, 250RPM

  • Commutation: Carbon brush / Graphite brush / Metal brush

  • Motor Type: 370 PMDC motor with gearbox, permanent magnet, iron-cored DC motor

25mm 370 Gear Reduction Box Motor Parameter List

Model　
　

Volt

No-load　

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GA25Y370-21

3

185

0.09

138

0.36

0.27

0.4

1.3

1.1

GA25Y370-47

3

83

0.09

61

0.36

0.51

0.3

2.4

1.1

GA25Y370-103

3

37

0.09

28

0.36

1

0.3

4.9

1.1

GA25Y370-227

3

17

0.09

12

0.37

2

0.3

9.7

1.1

GA25Y370-499

3

7.5

0.09

5.5

0.37

4

0.2

19

1.1

GA25Y370-4.2

6

1400

0.15

1150

0.5

0.13

1.5

0.73

2.1

GA25Y370-9.3

6

645

0.15

520

0.5

0.27

1.4

1.4

2.1

GA25Y370-20.4

6

294

0.15

240

0.5

0.53

1.3

2.8

2.1

GA25Y370-34

6

175

0.15

140

0.5

0.75

1.1

4

2.1

GA25Y370-74.8

6

80

0.15

65

0.5

1.5

1

8

2.1

GA25Y370-164.6

6

36

0.15

30

0.5

3

0.9

16

2.1

GA25Y370-499

6

12

0.15

9

0.5

8

0.8

/

2.1

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

12V Low Output 370 Gearmotor Types

Model
　
　

Volt

No-load

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GA25Y370-4.2

12

1350

0.05

1175

0.2

0.08

1

0.63

1.1

GA25Y370-9.3

12

615

0.05

535

0.2

0.16

0.9

1.2

1.1

GA25Y370-20.4

12

280

0.05

240

0.2

0.32

0.8

2.4

1.1

GA25Y370-34

12

165

0.05

140

0.2

0.45

0.7

3.5

1.1

GA25Y370-74.8

12

75

0.05

65

0.2

0.98

0.7

7.6

1.1

GA25Y370-164.6

12

34

0.05

29

0.2

1.8

0.6

13

1.1

GA25Y370-499

12

11

0.05

9.5

0.2

4.8

0.5

/

1.1

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

12V Powerful 25mm 370 Size Gearbox Motor Types

Model
　
　

Volt

No-load

At Maximum Efficiency

Stall

V
　

Speed

Current

Speed

Current

Torque

 Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GA25Y370-4.2

12

1870

0.1

1380

0.65

0.25

3.5

0.95

2.2

GA25Y370-9.3

12

850

0.1

620

0.65

0.51

3.3

1.9

2.2

GA25Y370-20.4

12

387

0.1

280

0.65

0.99

2.9

3.7

2.2

GA25Y370-34

12

230

0.1

165

0.65

1.4

2.4

5.2

2.2

GA25Y370-74.8

12

105

0.1

75

0.65

2.8

2.2

10

2.2

GA25Y370-164.6

12

47

0.1

34

0.65

5.5

1.9

20

2.2

GA25Y370-499

12

15

0.1

11

0.65

15

1.7

/

2.2

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

25mm Metal 300 Small Geared Motor Electric Motor Dimensions

370 Gear Reduction Box 12 Volt DC Motor With Gearbox , 25mm Small High Torque DC Motor

Ratio

4.21-9.7

20.4-21.3

34-47

75-103

164-227

362-499

Shaft Length

17mm

19mm

21mm

23mm

25mm

27mm
