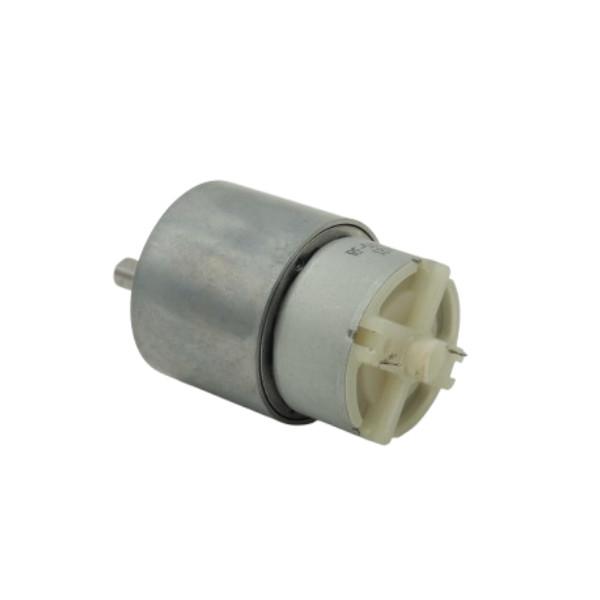

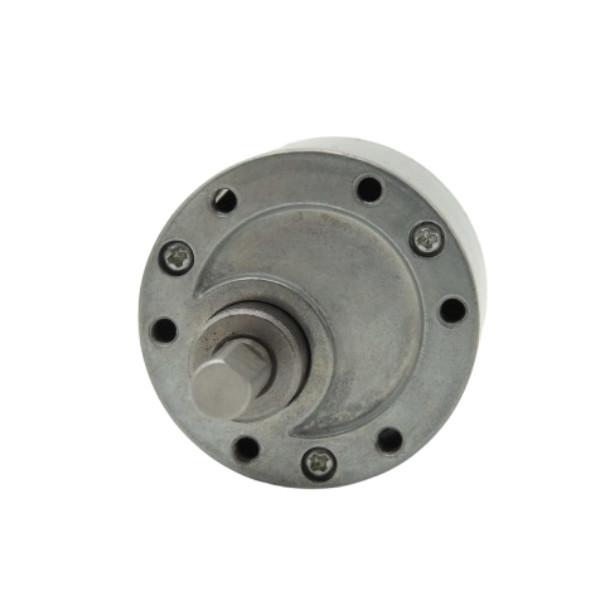

37mm 500 DC Gear Motor Small Reducer Electric Motor Reduction Gear High Torque

The 37mm 500 Micro Geared Motor is a compact and efficient mini dc motor with gearbox solution, consisting of a 500 motor paired with a precision miniature dc gear motor reduction box with a diameter of 37mm. The gearbox offers a variety of reduction ratio options, including 10:1, 30:1, 90:1, 210:1, and 506:1, 810:1,2430:1 and can be customized to meet specific customer requirements for speed and torque. The gearbox is available in standard lengths of 19mm, 21.5mm, 24mm, and 26.5mm, 29mm,31.5mm providing flexibility for integration into different designs and applications.

This electric gear motor 12v is designed to deliver low-speed operation with high torque output, making it ideal for applications that require precise motion control and reliable performance. Its compact size and customizable features make this mini dc motor with gearbox suitable for a wide range of uses, including smart home devices, medical equipment, industrial automation, robotics, and consumer electronics. Whether for small-scale projects or industrial-grade systems, the 500 Micro Geared Motor offers a versatile and efficient miniature dc gear motor solution for high-torque, low-speed drive need

Model : GA37-500 micro metal gearmotor

Gearbox: 37mm metal spur gear reducer

Motor Size:32mm*19.5 (D*L)

Shaft :Φ6mm ,Φ4mm D-cut 0.5mm, M4, custom

Gear Box Size:37mm*H mm
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 3V 6V 12V 24V

Operating Voltage:3V-9V 18V-26V
Revolving speed:Accepted Custom

Encoder : Magnetic encoder available;
Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

37mm 500 DC Gear Motor Small Reducer Parameter List & Dimensions

Model: GA20-130,6V 12V DC Gear Motor Paramter List

 *Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.
