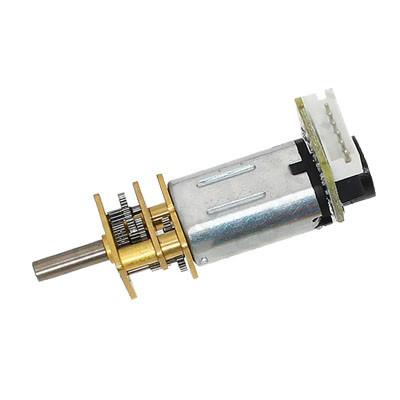

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot
12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot
Specifications
Brand Name :
Hofon
Model Number :
GM12-N30VA+EN
Certification :
RoHS/ISO9001:2000/ISO14001/TS16949
Place of Origin :
ShenZhen China
MOQ :
2000PCS
Price :
Negotiation
Supply Ability :
5000KPCS/Month
Delivery Time :
35Days
Packaging Details :
Carton Box
Voltage Range :
5V Or Customized
Material :
Metal Gear High precision gear
Diameter :
12mm
No Load Speed :
15RPM
No Load Current :
80mA
Rated Load Torque :
6552g.cm
Rated Load Speed :
11RPM
Rated Load Current :
303mA
Gear Ratio :
1000:1
Description

12mm With Hall Encoder 5V / 6V / 12V Metal Gear-box motor DC Gear Motor For Robot

  • DC Worm Gear-Box Motor
  • Diameter : Φ12.0mm
  • Output : APPROX 0.1~1.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance


Typical Applications

  • Fully automatic electronic door lock

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments Safe Box
  • Ad Equipment
  • Analysis Instrument/electronic
  • Game Machine
  • Household Appliances
  • Electronic Door Lock


Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

Reduction Ratio 1 : 3 1 : 5 1 : 10 1 : 30 1 : 50 1 : 63 1 : 100 1 : 150 1 : 210 1 : 250 1 : 298 1 : 1000

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM12F-N20VA-08260-150+EN 3.0-6.0 5.0V 98 0.032 77.4 0.122 41.4 422.1 0.335 197.1 2010 0.46
GM12F-N20VA-10155-298+EN 4.0-7.0 6.0V 75 0.045 62.3 0.224 144.0 1469 0.938 847.3 8642 1.10
GM12F-N30VA-12120-1000+EN 3.0-6.0 5.0V 15 0.080 11.9 0.303 642.4 6552 0.800 3058.8 31200 1.14
GM12F-N30VA-11130-30+EN 4.0-7.0 6.0V 590 0.050 484 0.225 15.9 162 0.800 88.2 900 1.02


Drawing


12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot


Product Details Show


12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

Production Equipment

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

Material Warehouse

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

Production workshop

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

Dust-free Production workshop

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

Test Equipment

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

12mm DC Gear Motor with Hall Encoder 5V / 6V / 12V Metal Gearbox Motor for Robot

Commonly used torque unit conversion table

N.M mN.m g.cm kg.cm
1 1000 10200 10.2
0.001 1 10.2 0.0102

For more information, please contact us directly or through our sales and representative offices.


Competitive Advantage

  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc

Quality Cotrol Test

  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
