High Density LED Display Transparent LED Video Wall Easy Hanging Installation
High Density LED Display Transparent LED Video Wall Easy Hanging Installation
High Density LED Display Transparent LED Video Wall Easy Hanging Installation
High Density LED Display Transparent LED Video Wall Easy Hanging Installation
Specifications
Brand Name :
DDW
Model Number :
DDW-ITP7801
Certification :
CE/ROHS/FCC/UL/ISO/3C
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Bank T/T transfer, Western Union
Supply Ability :
6000sqm/month
Delivery Time :
7-20 days
Packaging Details :
Plywood or Flight Case
Pixel Pitch :
7.8mm
Brightness :
>1000nits
Cabinet Wegiht :
9kg/pc
Cabinet Size :
9kg/pc
Working Temperature :
-20℃ - +60℃
Viewing Distance :
8-240m
Description

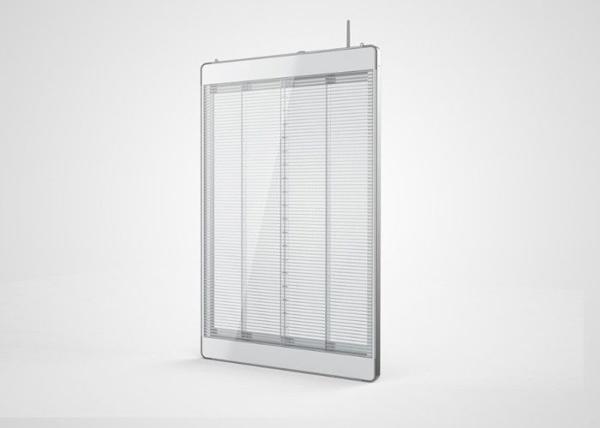

High Density LED Display Transparent LED Video Wall Easy Hanging Installation

>> Features

1. 80% High Transparency, to ensures natural light in the building.

2. Compatible with high-end decoration and better advertising effect.

3. Light weight and fast assembly.

4. Easy hanging installation without other structure, saving time and cost;

5. High refresh rate for a vivid and good image quality;

6. Wide view angle 140° in both horizontal and vertical for larger area to view.

Itemparameters
Pixel Pitch7.8mm
Pixel Density16,436dos/sqm
LED PackageSMD3528
Cabinet Size1000*500mm
cabinet Resolution128*64dot
Cabinet MaterialsAluminum
Cabinet Wegiht9kg/pc
Brightness>1000nits
Driving ModeStatic scan
Refresh Rate>1920hz
Grey Level256levels
Viewing Angle140°/60°
Viewing Distance8-240m
Power InputAC110V - 220V ±15%, 50HZ
Max Power Consumption360W/sqm
Ave. Power Consumptio115W/sqm
Working Temperature-20℃ - +60℃
Life Span>100,000 Hours


>> Description
1. High transparency rate: 80% transparency rate without affecting day-lighting.No need other heat dissipation system.


2. Light weight: PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.


3. Fast installation: Fast lock systems ensure fast installation and saving time and labor cost.


4. High brightness and energy saving: 6000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.


5. Easy maintenance: Repairing single SMD without taking of single module of entire panel.

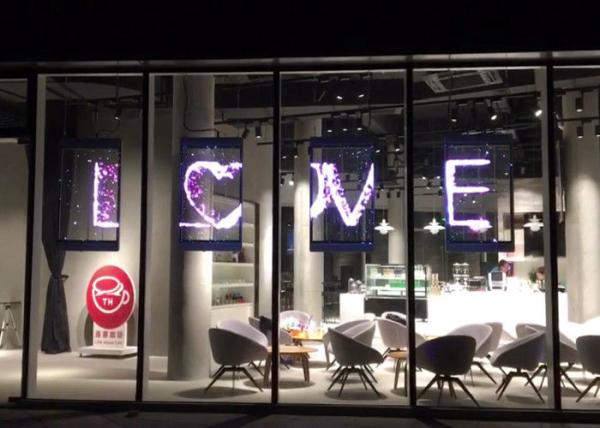

6. Wide application: Any building with glass wall. Such as shopping mall, Auto store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc.
>> Service
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your query in fluent English,Spanish,French,German etc.
3. Customized design is available,OEM & ODM are welcomed.
4. Warmly welcome your visit in our company if available.
5. Warranty: 12months, a little investment for longer warranty time.
