Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Specifications
Warranty :
1 Year
Classification :
Laboratory Thermostatic Devices
Customized support :
OEM, ODM, OBM
Brand Name :
DEARTO
Model Number :
DTG Series
Place of Origin :
Shandong, China
Display resolution :
0.01℃/0.1℃
Stability :
±0.1℃/30min
Dimension of box body :
310*165*360
Control method :
Touch
Power supply :
110/220VAC
Certification :
ISO9001
Packaging Details :
Carton Packing
Supply Ability :
1000 Piece/Pieces per Month
Price :
$1,250.00 - $3,000.00/sets
MOQ :
1
Description
Product Description

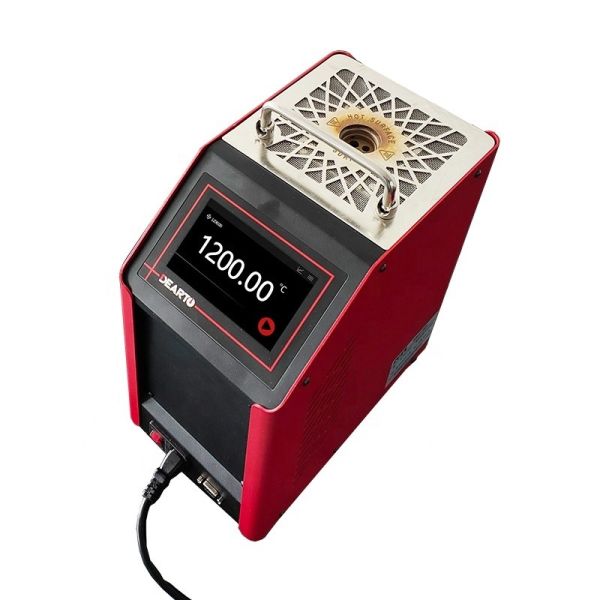

DTG series portable intelligent dry block temperature calibrator, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 50° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.
Functional characteristics
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Operation interface
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Precise Temperature Control Dry Block Well Temperature Calibration Furnace up to 1200 C
Product Paramenters
Medium temperature portable intelligent dry block calibrator
Model
DTG-450G
DTG-660AG
DTG-660BG
Temperature range
50℃~450℃
50℃~660℃
50℃~660℃
Control style
Touch screen
Display resolution
0.01℃
Radial uniformity
≤0.3℃
≤0.3℃
≤0.15℃
Axial uniformity
Within 40mm from the bottom of the well ≤1℃
Within 40mm from the bottom of the well ≤0.5℃
Temperature fluctuation
±0.2℃
±0.2℃
±0.1℃
Well depth (mm)
170
Standard hole diameter(mm)
φ4.5,φ6.5,φ8,φ10
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions (mm)
285(L) x170(W) x335(H)
Power
650W
Power supply
AC 110V/220V,60Hz/50Hz
High temperature portable intelligent dry block calibrator
Model
DTG-1000G
DTG-1200AG
DTG-1200BG
Temperature range
300℃~1000℃
300℃~1200℃
300℃~1200℃
Control style
Touch screen
Display resolution
0.1℃
Radial uniformity
≤0.5℃
≤1℃
≤0.8℃
Axial uniformity
Support customization
Temperature fluctuation
±0.2℃
±0.4℃
±0.2℃
Standard hole diameter(mm)
φ6.5,φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Well depth (mm)
170
Dimensions(mm)
310×165×360
Power
2200W
Power supply
AC 110V/220V,60Hz/50Hz
