White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Specifications
Warranty :
1 years
Classification :
Laboratory Thermostatic Devices
Customized support :
OEM, ODM, OBM
Brand Name :
DEARTO
Model Number :
DTS-BG
Place of Origin :
Shandong, China
Display resolution :
0.001℃
Dimensions(mm) :
500*220*600
Control method :
Touch
Power supply :
110/220V,50/60Hz
Working medium :
Special oil
Color :
White
Weight :
Appr.25kg
Packaging Details :
Bubble wrap & Carton Packing
Supply Ability :
1000 Set/Sets per Month
Price :
$4,000.00 - $8,000.00/sets
MOQ :
1
Description
Product Overview

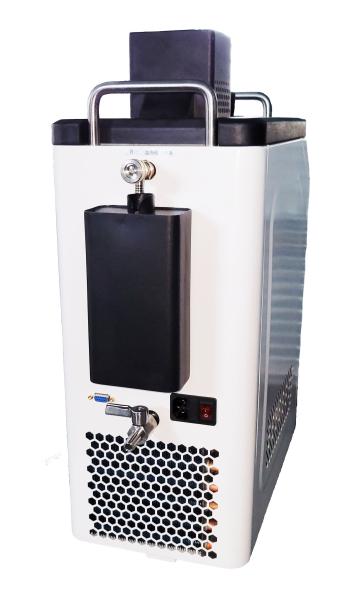

DTS-BG ultra-portable intelligent thermostatic oil bath

DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
-Compact dimensions;
-Intelligent touch screen control;
-Display temperature difference,fluctuation data;
-Automatic segment temperature control,rapid cooling/heating "0"overshoot;
-Micro-circulation technology;
-Temperature curve display. ETC.
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Front elevation
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Back elevation
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Vertical view
Operation interface
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Starting interface
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Curve display interface
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
Setting interface
PRODUCT SPECIFICATIONS
Product name
Intelligent micro refrigerated/heated thermostatic bath
Model
DTS-10BG
DTS-20BG
DTS-30BG
DTS-95BG
DTS-125BG
DTS-40BG
Temperature range
-10℃~180℃
-20℃~150℃
-30℃~150℃
-40℃~95℃
-40℃~125℃
Customized
-20℃~180℃
-40℃~150/180℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation
≤±0.02℃/10min（0℃）
Temperature uniformity
≤0.02℃（0℃）
Heating rate
6.5℃~11.5℃/min
Cooling rate
5℃~10℃/min（20℃）
Work area size
Φ80×280 mm
Dimensions（mm）
500(L)×220(W)×600(H)
Working medium
Special medium
Anhydrous alcohol
Special medium
Remarks
Flange size can be customized according to customer needs
