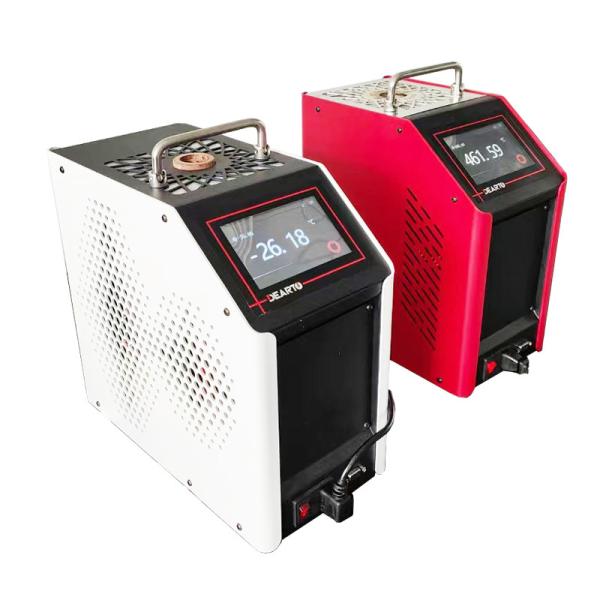

Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Specifications
Place of Origin :
Shandong, China
Brand Name :
Dearto
Model Number :
DTG-140G/150G
Packaging Details :
Bubble wrap & Carton Packing
Supply Ability :
1000 Unit/Units per Month
Price :
$2,500.00 - $4,000.00/units
Warranty :
1 year
Customized support :
OEM, ODM, OBM
Display resolution :
0.001℃
Stability :
±0.1℃/30min
Dimension of box body :
280*165*280
Color :
White
Power supply :
110/220VAC
NET Weight :
9kg
MOQ :
1
Description
Product Overview
DTG low temperature portable intelligent dry block calibrator, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Operation interface
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Setting interface
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
PID settings interface
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Auto-tuning interface
Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly.And hole diameter can be customized.
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Product Paramenters
Model
DTG-140G
DTG-150G
Temperature range
-20℃~140℃
-35℃~150℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤0.8 ℃
Temperature fluctuation
±0.15℃
Well depth
170mm
Dimensions
330 x 170x 320 mm
Power supply
110/220V,60/50Hz
SIMILAR PRODUCTS
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
Portable PID Self-Control Cryostat Calibrator -35 To 150°C With 0.001C Display Resolution
