Japan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press Machine
Japan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press Machine
Japan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press Machine
Japan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press Machine
Specifications
Brand Name :
RUIHUI
Model Number :
MAC4-1300F
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
70-1300
Stock Thickness(mm) :
0.6-6.0
Main Motor(Kw) :
AC 15.0
Max.Coil O.D.(mm) :
1400
Coil I.D.(mm) :
508
Mandrel Expansion :
Hydrauilc
Operating Air(Mpa) :
0.49
Max.Line Speed(m/min) :
16~24
Description

Japan Mitsubishi PLC Control Decoiler Straightener Feeder For Press Machine

Detail Information

About Decoiler Straightener Feeder:

1. Decoiler Straightener Feeder Introduction:

 Our Decoiler Straightener Feeder speed can reach 0-22 m /min. And suitable all kinds of metal coil Uncoiling,Straightening and automatic Feeding.
 Our Decoiler Straightener Feeder are suitable 0.5-6.0 mm thickness all metal coil uncoiling,straightening and feeding.Our Decoiler Straightener Feeder widely used to computer, mobile phone,automobile industry,appliances manufacturing, medical apparatus and instruments,Car Accessories, hardware & Metal parts etc industry.And matched all kinds of press machine.

2 . Decoiler Straightener Feeder Feature And Advantage:

1. Save factory area. 3 machines together one.

2. High precision:+/-0.05 mm

3. Suitable for material thickness :0.5-6.0 mm.

4. Suitable for all kinds of metal coil automatic straightening and feeding,Easy to operate.

5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding.

6. Japan servo motor , PLC and other electrical parts,with little malfunction and long using time.High quality ,lowest maintenance.

7. Can feed different length at one time,easy operation, safe and high stability.

8. We can customize the machine.

9. Fast speed: 0-22 m/min.

10. Coil car , pressing arm, conveyor belt , shearing machine , oiling machine etc. for choosing.

Specifications:

Model MAC4-600F MAC4-800F MAC4-1000F MAC4-1300F
Stock Width(mm) 70~600 70~800 70~1000 70~1300
Stock Thickness(mm) 0.6~6.0 0.6~6.0 0.6~6.0 0.6~6.0
Max.Coil Weight(kg) 5000 5000 7000 10000
Max.Coil O.D.(mm) 1400 1400 1400 1400
Coil I.D.(mm) 508 508 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max.Line Speed(m/min) 16~24 16~24 16~24 16~24
Work Roll Number(piece) upper 6/lower 5 upper 6/lower 5 upper 6/lower 5 upper 6/lower 5
Feed Roll number(set) 1 1 1 1
Main Motor AC7.5 AC11.0 AC11.0 AC11.0
Mandrel Expansion Hydrauilc Hydrauilc Hydrauilc Hydrauilc
Reel Motor(kw) 2.2 2.2 3.7 7.5
Power(v) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straightening Performance:

Model MAC4-600F MAC4-800F MAC4-1000F MAC4-1300F
Stock Thickness
(mm)		 0.8~2.3 600 800 1000 1300
2.8 933 933
3.2 714 714 714
4.0 457 457 457 457
4.5 361 361 361 361
5.0 293 293 293 293
6.0 203 203 203 203



Products:

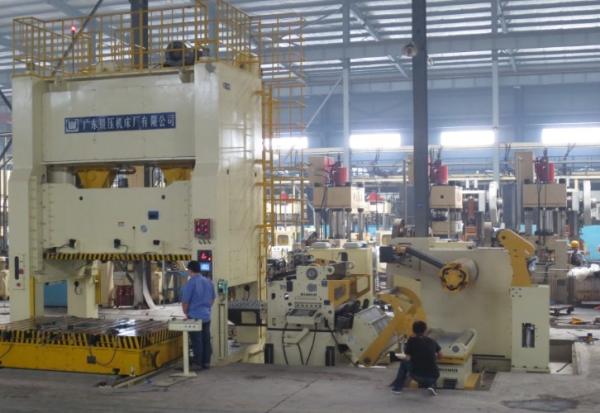

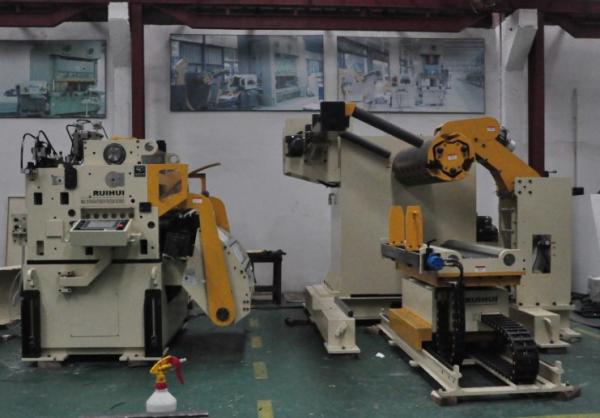

Japan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press MachineJapan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press Machine
