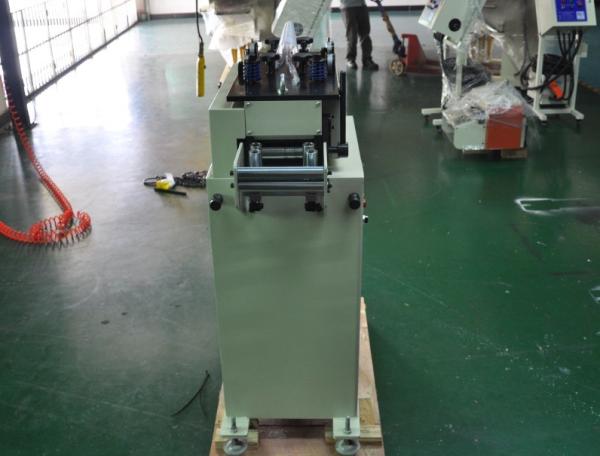

Coil Steel Nc Automatic Leveling Machine For Plate Metal Materials
Application:
The RLV-F series offers a precision straightener that can process material width up to 600mm, and can be adjusted to handle stock thicknesses between 0.1 and 1.5mm. This is the optimum model for processing all kinds of precision components which require outstanding straightening performance.
Model | RLV-150F | RLV-200F | RLV-300F | RLV-400F | RLV-500F | RLV-600F |
Max Material Width (mm) | 150 | 200 | 300 | 400 | 500 | 600 |
Material Thickness (mm) | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.3 | 0.1-1.2 |
Speed(m/min) | 6-22 | |||||
Motor (HP) | 1 | 1 | 1 | 2 | 3 | 3 |
Inverter | Provided | |||||
Work Rolls | Upper 8 / Lower 9 (All Drive Function) | |||||
Pinch Rolls | Upper 1 / Lower 1 (All Drive Function) | |||||
Back up rolls | N/A | Provided | ||||
Adjustment | 4 Points Fine Micor Adjustment | |||||
Loop Control | Touch Sensor | |||||
Work Roll Opening | Manual Operation | |||||
Drive Method | All Rolls are Dricen with Side Gear | |||||
Power Supply | 3 Phase 220V/380V/50HZ |
FAQ:
Q1:What kinds of machines do you have?
Service:
1. Pre-Sales Service:We have professional designers to meet the different requirement.
Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval
