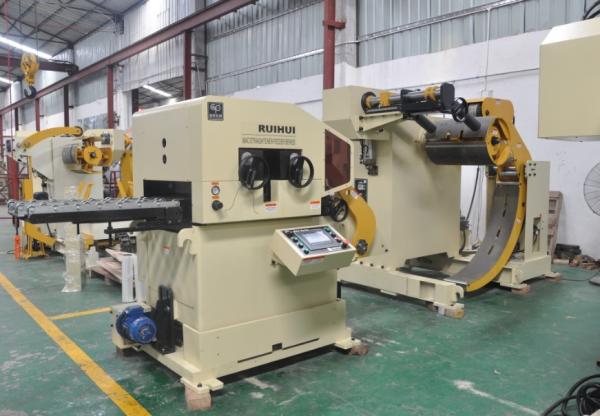

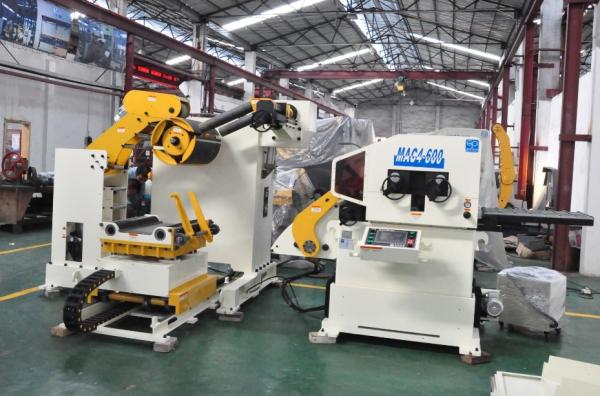

Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine
Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine
Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine
Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine
Specifications
Brand Name :
RUIHUI
Model Number :
MAC4-600
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
70~600
Stock Thickness(mm) :
0.6~6.0
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
5000
Work Roll Number(Pcs) :
upper 4/lower 3
Main Motor(Kw) :
AC 7.5
Warranty Period :
12 Months
Type :
Straightener Feeder
Specification :
3630*2650*2460
Usage :
Material Straightening
Customized :
customized
Principle :
Large Deformation
Description

Pressing Machine Nc Servo Sheet Metal Steel Coil Decoiler Straightener Feeder

Feeding features
1. NC Servo feeding. Operating with Computerize Numerical Control by PLC program from MITSUBISHI made in Japan. The electrical parts from YASKAWA made in Japan including Servo motor, driver, encoder, interface screen and so on.
2. High precision feeding: to meet the coming of hi-tech industry, controlled by computer closed circuit feedback system to keep precision degree within +/-0.5mm
3. Feeding function: input 20 sets of different feed length, each group provides 999 times for punching or cutting to satisfy processing of special products.
4. High efficiency release device, match with adjustment of signal from the cutter or press machine through cable wire.
5. Setting of feed length: directly input feed length on the control plate, and then it can reach needed distance, feed length max 9999.99mm. speed max 100m/min

Specification:

Model MAC4-400 MAC4-600 MAC4-800 MAC4-1000 MAC4-1300
Stock Width(mm) 70~400 70~600 70~800 70~1000 70~1300
Stock Thickness(mm) 0.6~6.0 0.6~6.0 0.6~6.0 0.6~6.0 0.6~6.0
Max.Coil Weight(kg) 5000 5000 7000 7000 7000
Max.Coil O.D.(mm) 1400 1400 1400 1400 1400
Coil I.D.(mm) 508 508 508 508 508
Feed Length(mm) ~500* ~500* ~500* ~500* ~500*
Max.Line Speed(m/min) 16~24 16~24 16~24 16~24 16~24
Work Roll Number(piece) upper 4/lower 3 upper 4/lower 3 upper 4/lower 3 upper 4/lower 3 upper 4/lower 3
Feed Roll number(set) 1 1 1 1 1
Main Motor AC5.5 AC7.5 AC7.5 AC11.0 AC11.0
Mandrel Expansion Hydrauilc Hydrauilc Hydrauilc Hydrauilc Hydrauilc
Reel Motor(kw) 2.2 2.2 3.7 3.7 3.7
Power(v) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49 0.49


Straightening Performance:

Model MAC4-400 MAC4-600 MAC4-80 MAC4-1000 MAC4-1300
Stock Thickness
(mm)		 0.6~1.3 400 600 800 1000 1300
2.0
2.3
2.5 1170
2.8 933 933
3.2 714 714 714
4.0 457 457 457 457
4.5 361 361 361 361 361
5.0 293 293 293 293 293
6.0 203 203 203 203 203

Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing MachineNc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine

FAQ:

Q1:What kinds of machines do you have?

Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

Feeder,Transfer systems,Press Feeding Line., etc

Q2:Is your equipment standard or customized?

Both, we can OEM & ODM with customers.

Q3:What are your equipments certification?

All our items are coming with CE certifications.

Q4:How did your company's quality system work?

“QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

cheapest. But we can provide you excellent products to defeat your competitors.

Q5:How long is the warranty period of the machine?

We offer free service with a warranty period of one year, If it is operate in reasonable, the

machine can be used more than 10 years.

Q6: Is it possible to be a foreign agent and distributor?

If you are confidence and excellent service for after-sales, then welcome to be our agents or

distributors all over the world.

Q7:What’s your payment?

T/T,D/P,L/C,Western Union., etc

Q8:What’s the delivery?

“TIME IS GOLD” for you and for us, so we have professional team work and production line can

make nice quality in short time.

Service:

1. Pre-Sales Service:We have professional designers to meet the different requirement.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
