18KW Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 1
18KW Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 1
18KW Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 1
18KW Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 1
Specifications
Brand Name :
RUIHUI
Model Number :
MAC4-800
Certification :
CE ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Condition :
New
Type :
Straightener Feeder & Uncoiler
Use :
sheet
Voltage :
380V/Customized
Power(W) :
18KW
Dimension(L*W*H) :
3630*2650*2460
Weight :
9T
Warranty :
1 Year
Material Width :
70~800mm
Product Name :
NC Servo Straightener Feeder
Coil Weight :
7000kg
Material Thickness :
0.6~6.0mm
Color :
Customized
Description

Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 1 Machine

Standard Accessory:


1. upper roller adjustment by digital watch .
2. Coil width adjusted by double handle wheel with precise screw rod .
3. Pass line can be adjusted by the lifter driven by motor .
4. Coil side guide use one set hollow rolls mechanical back gauge device.
5. Pinch roll and straightener roll material:high-strength alloy bearing steel with hard chrome plating.
6. Hydraulic coil arm device .
7. Motorized Snuber roll .
8. hydraulic guider .
9. hydraulic peeler table .
10. Mitsubishi PLC control feeding program from Japan .
11. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer .

MAC5 Series 3 in 1 Coil Feeder,Straghtener Feeder, Servo Feeder (Width within 1300mm,thickness within 9mm

Specification:

Specification
Model MAC4-400 MAC4-600 MAC4-800 MAC4-1000 MAC4-1300
Stock Width(mm) 70~400 70~600 70~800 70~1000 70~1300
Stock Thickness(mm) 0.6~6.0 0.6~6.0 0.6~6.0 0.6~6.0 0.6~6.0
Max.Coil Weight(kg) 5000 5000 7000 7000 7000
Max.Coil O.D.(mm) 1400 1400 1400 1400 1400
Coil I.D.(mm) 508 508 508 508 508
Feed Length(mm) ~500* ~500* ~500* ~500* ~500*
Max.Line Speed(m/min) 16~24 16~24 16~24 16~24 16~24
Work Roll Number(piece) upper 4 upper 4 upper 4 upper 4 upper 4
down 3 down 3 down 3 down 3 down 3
Feed Roll number(set) 1 1 1 1 1
Main Motor AC5.5 AC7.5 AC7.5 AC11.0 AC11.0
Mandrel Expansion Hydrauilc Hydrauilc Hydrauilc Hydrauilc Hydrauilc
Reel Motor(kw) 2.2 2.2 3.7 3.7 3.7
Power(v) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49 0.49

Straightening Performance
Model MAC4-400 MAC4-600 MAC4-800 MAC4-1000 MAC4-1300
Stock Thickness (mm) 0.6~1.3 400 600 800 1000 1300
2.0
2.3
2.5 1170
2.8 933 933
3.2 714 714 714
4.0 457 457 457 457
4.5 361 361 361 361 361
5.0 293 293 293 293 293
6.0 203 203 203 203 203

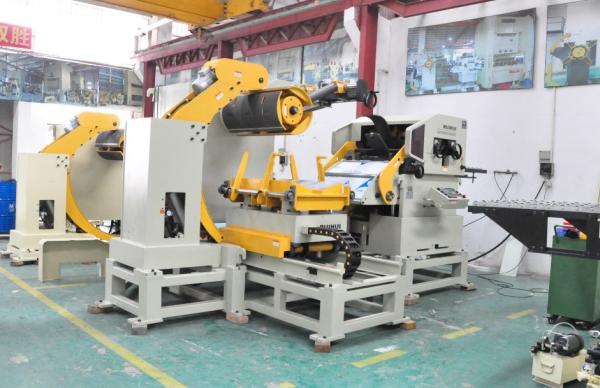

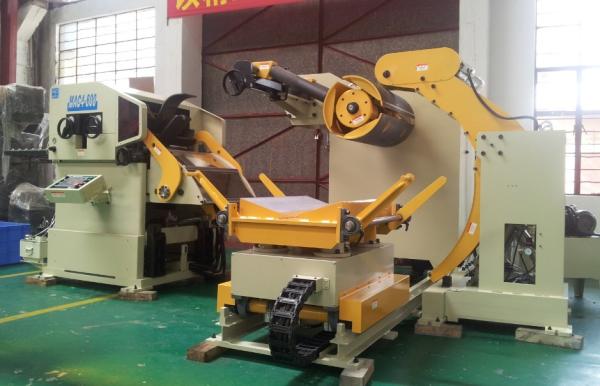

18KW Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 118KW Steel Coil Feeder Straightener Machine Cum Servo Roll Feeder 3 In 1

FAQ:

Q1:What kinds of machines do you have?

Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

Feeder,Transfer systems,Press Feeding Line., etc

Q2:Is your equipment standard or customized?

Both, we can OEM & ODM with customers.

Q3:What are your equipments certification?

All our items are coming with CE certifications.

Q4:How did your company's quality system work?

“QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

cheapest. But we can provide you excellent products to defeat your competitors.

Q5:How long is the warranty period of the machine?

We offer free service with a warranty period of one year, If it is operate in reasonable, the

machine can be used more than 10 years.

Q6: Is it possible to be a foreign agent and distributor?

If you are confidence and excellent service for after-sales, then welcome to be our agents or

distributors all over the world.

Q7:What’s your payment?

T/T,D/P,L/C,Western Union., etc

Q8:What’s the delivery?

“TIME IS GOLD” for you and for us, so we have professional team work and production line can

make nice quality in short time.

Service:

1. Pre-Sales Service:We have professional designers to meet the different requirement.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.

MAC4 Series 3 In 1 Coil Feeder, Decoiler Straghtener Feeder, Servo Feeder
