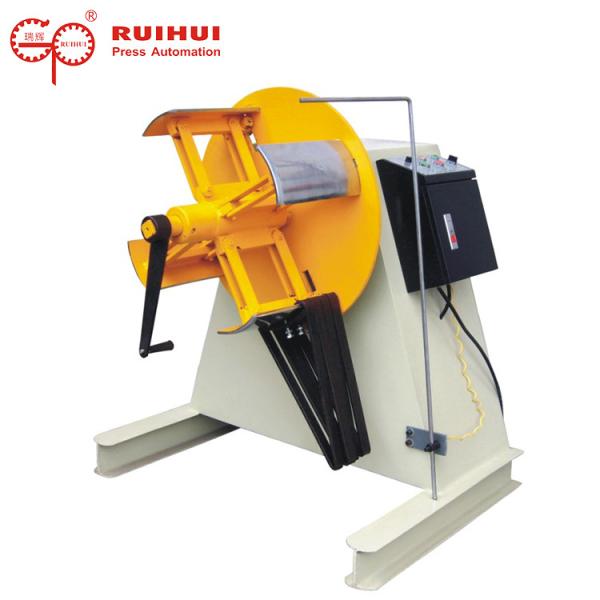

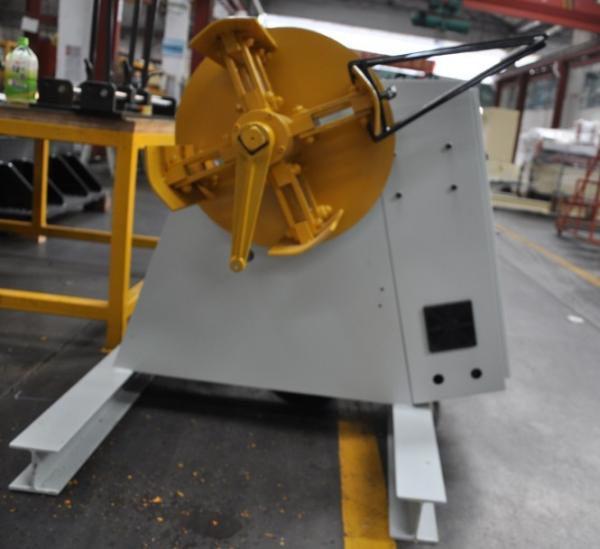

Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping
Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping
Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping
Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping
Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping
Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping
Specifications
Brand Name :
RUIHUI
Model Number :
ME-200
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
70-200
Coil Weight(Kg) :
500
Motor(Kw) :
AC 0.4
Warranty Period :
12 Months
Trademark :
RUIHUI
Coiling block expansion mode :
Manual/Hydraulic
Type :
Uncoiling Machine
Function :
Decoiling metal coil to sheet strips
Customization :
Available
Product Name :
Hydraulic Manual Uncoiler For Pres
Description

Hydraulic Manual Steel Coil Uncoiler For Press Machine For Decoiler For Stamping

Manual or pneumatic models can be selected for inner diameter adjustment,There is wide selection to choose from depending on width and weight of coil.

specifications

Model Stock Width (mm) Coil Weight (kg) Motor
(kw)		 Pressing Arm Coiling block expansion mode Material ID (mm) Material OD (mm)
ME-200 70-200 500 0.375 Pneumatic Manual/Hydraulic 508 930
ME-300 70-300 800 0.75 Pneumatic Manual 508 930
ME-400 70-400 1000 0.75 Pneumatic Manual/Hydraulic 508 930
ME-500 70-500 1500 1.5 Pneumatic Manual 508 1200
ME-600 100-600 3000 1.5 Pneumatic Manual 508 1200
ME-800 100-800 5000 2.2 Pneumatic Manual 508 1200

Hydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler StampingHydraulic Manual Steel Coil Uncoiler For Press Machine / Decoiler Stamping

RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval
