NC feeder, feed line tools, Ruihui feeder with shearing machine

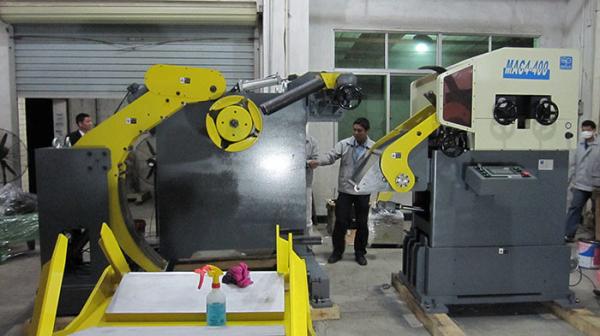

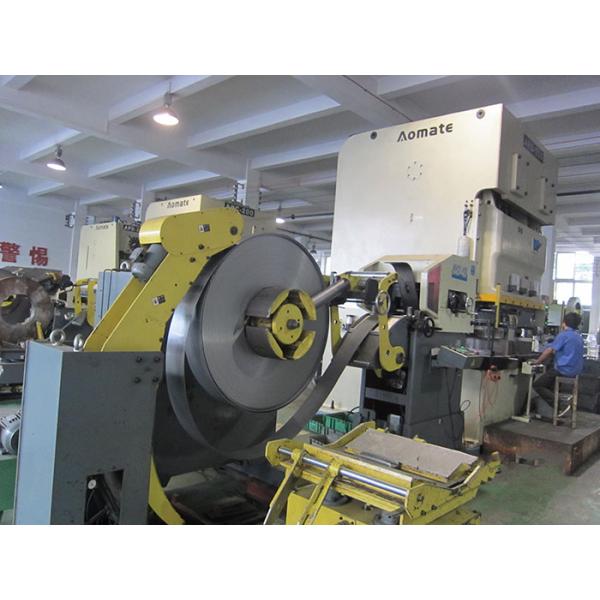

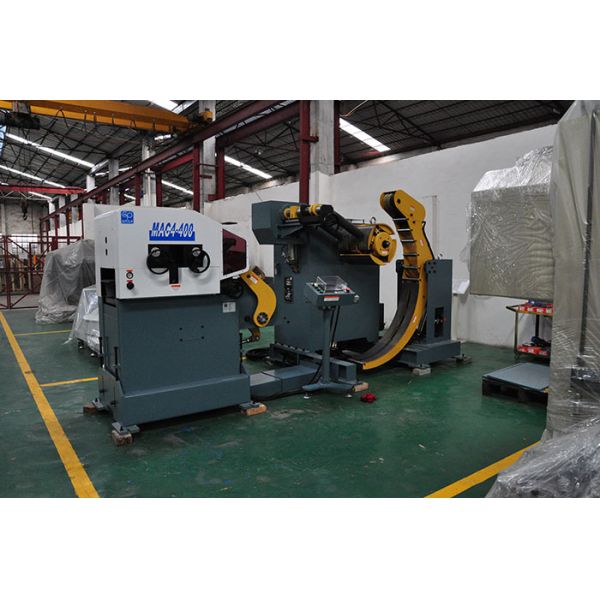

The NC feeder combines the shearing machine with the heavy-duty material rack for the material roll placed at the front end to form an automatic shearing line. In actual use, the coil material is placed on the heavy-duty material frame and tightened.

Then, the material end of the coil material passes through the pallet and passes through the feeder to the arc cutter of the shearing machine. Adjust the position of the stopper wheel of the feeder and the A-type iron of the heavy material frame to ensure that the coil is in the middle of the arc cutter of the shearing machine.

Advantages of NC feeder with shearing machine:

1. The production line is compact and reasonable, and the occupied space is small, which saves the space for the original sheet material stacking and the space occupied during production and processing.

2. with a variety of cutting methods, can be opened and obliquely opened, can maximize the use of the edge of the material and the remaining material at both ends, greatly improving the utilization of materials, production materials cost savings of at least 15% .

3. high degree of automation, low labor intensity, the real liberation of the labor force, while saving labor costs.

4. High feeding precision and good quality of shearing finished products. The NC feeder uses an optimized electronic control system consisting of PLC, touch screen, servo motor and driver. The feeding roller is driven by the servo motor to achieve the feeding action. The feeding precision is up to 0.05mm. There is also an automatic correction error function that ensures the accuracy of the feed shear.

5. There is an independent adjustment handle for the shearing test machine of the production line, which not only improves the efficiency of production but also ensures the safety of shear production.

6. operation and commissioning is very simple, suitable for diversified processing needs. The operation of the automatic cutting production line only needs simple setting on the touch screen of the NC feeder, which is quick and convenient, and can set multi-stage cutting according to requirements to meet the needs of diversified and efficient production.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
