Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Price :
Negotiable
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.2~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Type :
Straightener Feeder & Uncoiler
Material :
Steel Material
Trade type :
Manufacture
Description

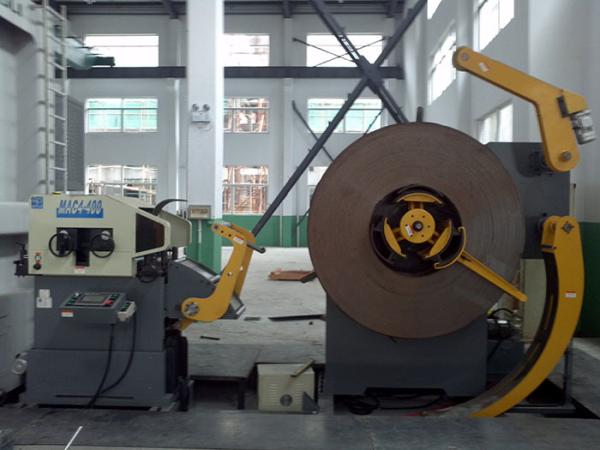

Three-in-one feeder, stamping die, Dongguan Ruihui leveling feeder feeding device


The three-in-one feeder consists of two main structures: a material frame portion and a leveling feeder head portion.

When using the three-in-one leveling feeder head, first adjust the distance between the two sliding seats by pivoting the screw of the feed width adjusting component to adjust the width of the limiting channel to the coil to be leveled. The width matches.

The upper feed roller is then moved in a direction away from the lower feed roller by a second linear drive of the leveling feeder feed mechanism.

Next, the strip unwound from the three-in-one feeder material frame is fed along the feed guide channel and sequentially passes through the limit passage and the feed port to finally enter the leveling zone of the leveling device.

The second linear drive is then used to drive the upper feed roller toward the lower feed roller, and the rotary drive drives the coordinated rotation of the upper feed roller and the lower feed roller to feed the strip into the leveling zone.

The lower flat wheel set of the leveling device is also driven to rotate by the rotary drive, and the lower flat wheel set and the upper flat wheel set cooperate with each other to level the processing.
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device

Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Three In One Feeder Steel Plate Straightening Machine Stamping Die Leveling Device

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
