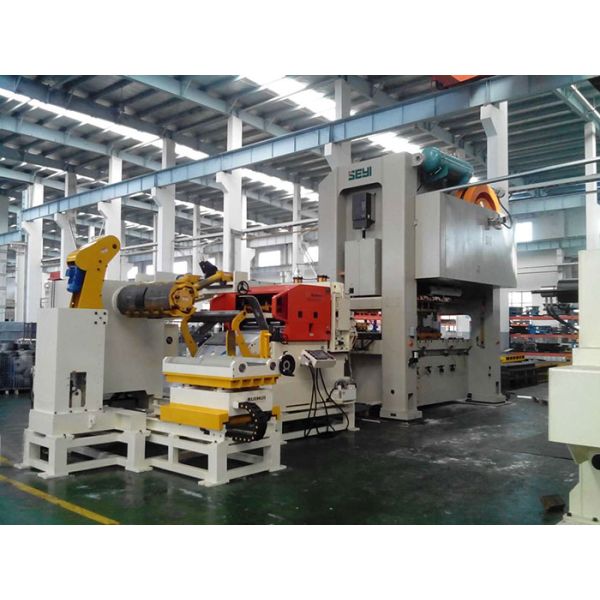

Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Box or Vacuum Packing
Model Number :
MAC2-800
Price :
Negotiable
Stock Width(mm) :
50~800
Stock Thickness(mm) :
0.3~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Type :
Straightener Feeder & Uncoiler
Color :
Customer Demand
Function :
Coil Uncoiling Straightening Feeding
Realease power :
Mechanical or Pneumatic
Features2 :
Accept OEM and ODM Order
Description

Unwinder straightening machine, steel plate straight, Shenzhen automatic pressure coil machine

In the automotive and metal processing and manufacturing industries, it is usually necessary to use medium and thick plate for stamping and processing. This type of stamping and processing is traditionally used by hydraulic heavy material frame, medium (thick) plate leveling machine, and NC feeding. Separate press production line with machine.

1. Both the thick plate split production line machine and the machine table need to ensure sufficient waiting area, which makes the production line occupy a large space. The plate-type stamping automatic production line usually needs more than 8 meters of space, and many even have to dig pits.

2, feeding, debugging, operation is cumbersome, labor intensity, time-consuming. In the split stamping production line, the leveling and feeding machine should be independent feeding. If the material thickness is large, many people need to use the crowbar to assist the feeding, which takes a long time and labor intensity. At the same time, the heavy material rack and the leveling machine The feeder needs to be independently set and debugged, resulting in a great compression of the effective production time.

3. Leveling and feeding accuracy are difficult to guarantee effectively. In the thick plate split production line, a long waiting area is required between the leveling and feeding machines, so that the material after flattening is prone to rebound deformation, and the synchronization between the two is poor, and the leveling and feeding accuracy are difficult to stabilize. Guarantee.

The emergence of Ruihui three-in-one feeder has solved the above three major deficiencies perfectly. It combines the material rack, leveling and feeding, and has a compact structure, small footprint and loading. The feeding and debugging are simple and quick, and the automation is fully realized. It is the best choice for medium and heavy plate processing.

Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine


Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine
Unwinder Steel Plate Straightening Machine Automatic Pressure Coil Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
