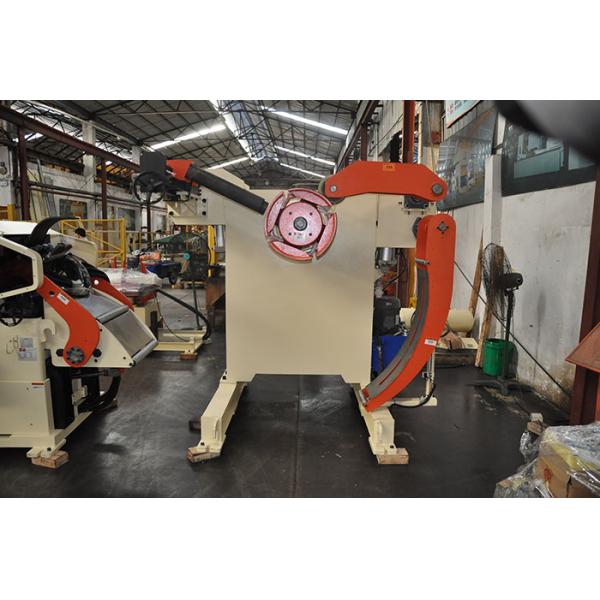

Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
50-400
Stock Thickness(mm) :
0.3-4.5
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
5000
Main Motor(Kw) :
AC 4.4
Warranty Period :
12 Months
Trademark :
RUIHUI
Max.Coil O.D.(mm) :
1400
Function :
Electric Hydraulic Hole Puncher
Type :
Straightener Feeder & Uncoiler
Use :
Sheet
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Steel coil manual unwinding machine, Guangdong pipe stamping processing, Ruihui manipulator

1. High precision and stability: The servo motor used by Ruihui NC feeder (Japan Mitsubishi) servo motor realizes the feeding action by synchronous pulley driving the feeding roller. The control adopts a full set of Japanese Mitsubishi control system, and at the same time, it has the automatic reset function. Eliminate the accumulated error, so that the feeding accuracy is always within ±0.02mm.

2. easy to operate, high degree of automation: NC feeder step setting, speed, product accumulation can be easily set on the seven-inch touch screen, no need to adjust the mechanical part, easy to operate, accuracy High, greatly improving the effective working hours.

3. multi-stage feeding function, to meet the needs of diversified production: NC feeder unique multi-stage feeding function, each feeding step and feeding times can be easily set on the touch screen, which can meet the special product stamping production. demand.

4. high degree of customization, a wide range of uses: many types of NC feeders according to material thickness are 2.2, 3.2, 4.5mm three types, according to the relaxation method is divided into mechanical, pneumatic, according to the electronic control and the nose The combination method is divided into separate type, integrated type, and various customized models such as yaw type NC feeder, super thick plate NC feeder, super high speed NC feeder, etc., making it the most widely used punching machine. Feeder equipment.

Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing
Steel Coil Manual Unwinding Decoiling And Straightening Machine Pipe Stamping Processing

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
