Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.2~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Description

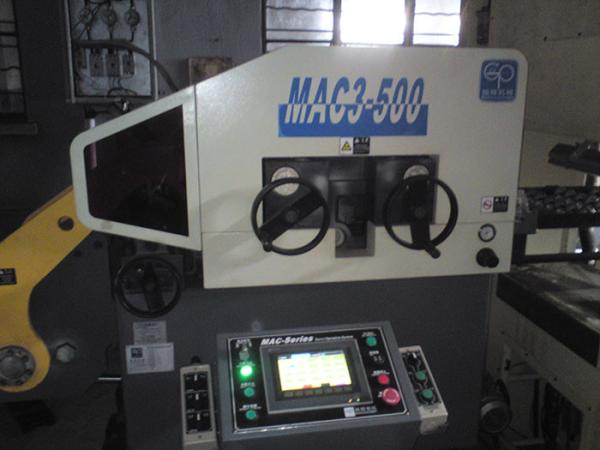

Feeding speed of stamping feeder, NC servo feeder, air feeder, high speed roller feeder (MAC3-400)
http://www.ruihui.net

With the rapid development of the stamping industry, the requirements for speed and precision are getting higher and higher, in order to meet the high-speed stamping, and to increase the competitive advantage of the feeder itself.

Common feeder feeding speed

NC servo feeder adopts brand motor, Japan imported precision servo system, stable performance and high feeding precision. Under the premise that the mold has positioning pin, the feeding precision is ±0.05mm.

In terms of feed speed, its fastest speed can reach 125m/min. This accuracy can be maintained at such speeds and is indeed the first choice for your NC servo feeder.

The air feeder is the earliest feeder used in the stamping industry. It is mainly used for the acceptance of stamping products with low speed and low precision. The air feeder feed speed is relatively slow, and the feeding accuracy is not high, so it is gradually eliminated, but it is simple and affordable.

The high-speed roller feeder has a simple and economical structure, and the failure rate is low and the maintenance is easy. The feeding accuracy is very high, the precision can reach ±0.01mm in the case of a guide pin, and the feeding speed can reach 30m/min in the case of a reverse device.

The feeder has the advantages of high feeding precision, high speed, no additional energy supply, and extremely low failure rate, and has become the most widely available feeder.

Ruihui Machinery Equipment Co., Ltd. is the leading manufacturer of stamping peripheral equipment in China. It mainly produces and sells peripheral equipment for punching automation. The products include: feeder, NC servo system feeder, feeder and other products.

In addition to gradually sizing a variety of conventional models of the feeder, according to different customer requirements, special design, non-standard customization, production of various punch automation peripheral equipment.

Stable Performance High Speed Roller Feeder / Nc Servo Feeder

Specification:

Model MAC2-400 MAC2-500 MAC2-600 MAC2-800
Stock Width(mm) 50-400 50-500 50-600 50-800
Stock Thickness(mm) 0.3~3.2 0.3-3.2 0.3-3.2 -3.2
Max.Coil Weight(kg) 3000 3000 3000 5000 5000 7000
Max.Coil O.D.(mm) 1200 1200 1200
Coil I.D.(mm) 8 8 508 508
Feed Length(mm) ~500* ~500* ~500* ~500*
Max. Line Speed(m/min) 16-24 16-24 16-24 16-24
Work Roll Number(pieces) upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5		 upper 6
lower 5
Feed Roll Number(set) 1 1 1 1
Main Motor(kw) AC2.9 AC2.9 AC4.4 AC4.4
Mandrel Expansion hydraulic hydraulic hydraulic hydraulic
Reel Motor(kw) 1.5 1.5 1.5 2.2 2.2 3.7
Power(V) 3 Phase 220V/380V/50HZ
Operating Air(Mpa) 0.49 0.49 0.49 0.49


Straigtening performance:

tock Thicknees (mm) Stock Width (mm)
0.3 400 500 600 800
0.4
0.6
0.8
1.0
1.2
1.4
1.6 470 470
1.8 400 400
2.0 360 360
2.3 300 300 300 300
2.5 230 230 230 230
2.8 150 150 150 150
3.2 110 110 110 110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Stable Performance High Speed Roller Feeder / Nc Servo Feeder
Stable Performance High Speed Roller Feeder / Nc Servo Feeder

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
