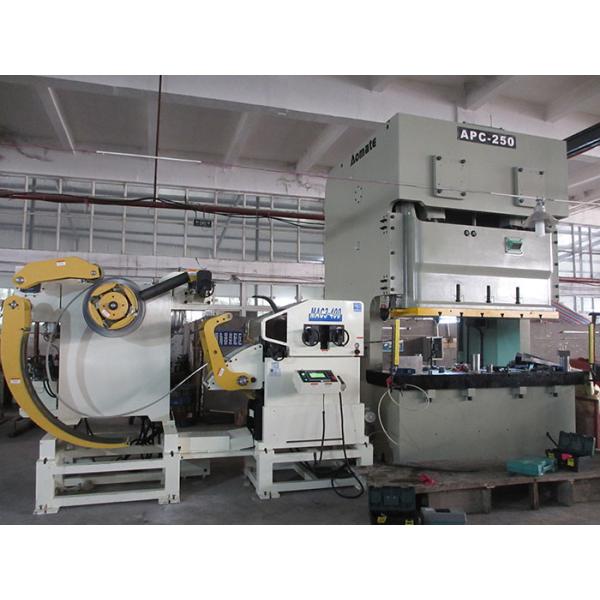

MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
70-1000
Stock Thickness(mm) :
0.6-6.0
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
7000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
Coil Weight(Kg)
Warranty Period :
12 Months
Max.Coil O.D.(mm) :
1400
Coil I.D.(mm) :
508
Feed Length(mm) :
~500*
Mandrel Expansion :
Hydrauilc
Reel Motor(kw) :
2.2
Operating Air(Mpa) :
0.49
Description
Automatic feeding cutting machine, feeder, automatic feeding device (MAC3-400H)
http://www.ruihui.net

The beam feeder in the feeder is a new type of product that the technicians independently innovate and research and develop according to the market demand. It is a numerical control product that can be adapted to the use of small and medium-sized enterprises. It is hoped that this feeder product can be practically applied in production. In the middle, it can increase the production efficiency of enterprises.
The automatic feeding cutting machine is a kind of automatic feeding machine. It adopts a four-column double cylinder structure to achieve high-tonnage cutting. Now it is necessary to know the characteristics of the feeding machine.
Saving energy consumption, based on the precision four-column cutting machine, we increase the single-sided or double-sided automatic feeding device, which improves the efficiency and safety of the machine tool, and improves the production efficiency of the whole machine by 2 to 3 times.

Automatic feeding cutting machine is suitable for leather processing, garment industry, shoe industry, luggage industry, packaging industry, toy industry, stationery industry, automobile industry. Forming knife mold for leather, rubber, plastic, cardboard, cloth, foam, nylon , artificial leather, PVC board and other materials cutting operations.
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine
MAC3 - 400H Decoiler And Straightener Automatic Feeding Cutting Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
