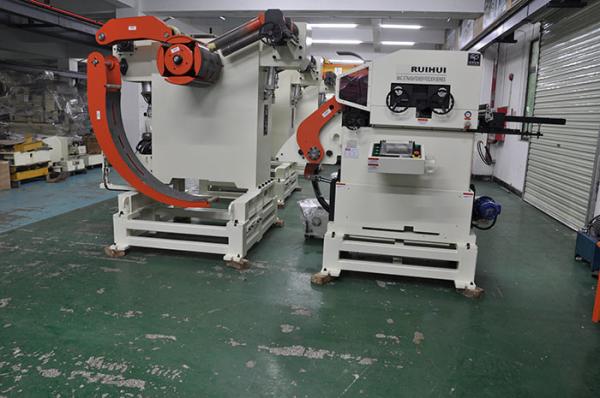

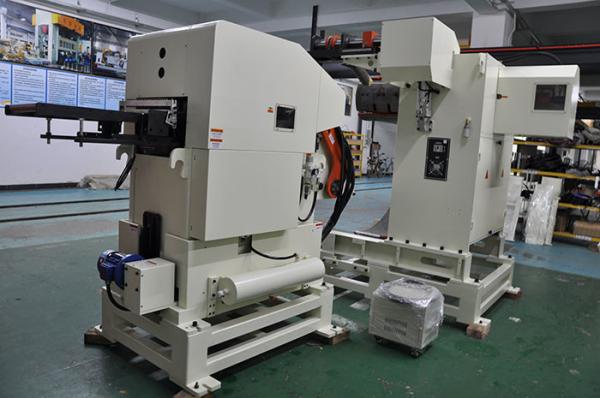

3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
70-1000
Stock Thickness(mm) :
0.6-6.0
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
7000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
Coil Weight(Kg)
Warranty Period :
12 Months
Max.Coil O.D.(mm) :
1400
Coil I.D.(mm) :
508
Feed Length(mm) :
~500*
Mandrel Expansion :
Hydrauilc
Reel Motor(kw) :
2.2
Operating Air(Mpa) :
0.49
Description
Automatic feeder, auto parts stamping, Ruihui automatic feeding equipment
www.ruihui.net

1. The action mode of the automatic feeder is circular motion of the roller, instead of the linear motion of the four guide columns, the automatic feeder will not have a seizure phenomenon;
2. The automatic feeding machine with high degree of automation has: a moving head type feeder controlled by a computer, a laser feeding material feeder, a high pressure air pressure and a computer feeding material feeder;
3. automatic feeder has three series (unwinding leveling feeder), two series (unwinding leveling machine), feeder series (NC servo feeder, high speed roller feeder, horizontal electronic feeder, yaw Stamping equipment such as feeders, precision leveling machines, automatic material racks, and AC servo robots;
4. Specifications and features: the strength of the roller feeder;
5. production: can be processed continuously.

Ruihui heavy-duty material frame has standard load. If it exceeds the standard weight, it needs to be customized. In addition, the weight of the roll exceeds 2T. It is recommended to use oil pressure expansion instead of hand-expanding mode (more than 2T material is difficult to manually tighten) The recommended load capacity of more than 5T is equipped with a hydraulic loading trolley for easy loading.
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment
3 In One Automatic Feeder Sheet Metal Decoiler Auto Parts Stamping Equipment

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
