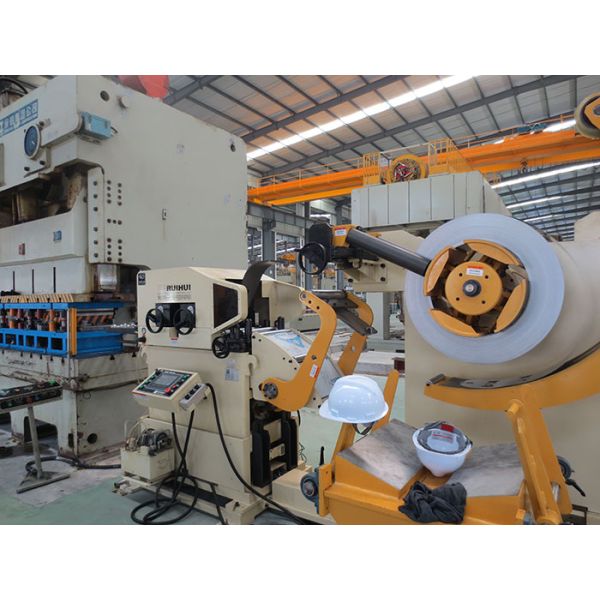

Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
70-1000
Stock Thickness(mm) :
0.6-6.0
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
7000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
Coil Weight(Kg)
Warranty Period :
12 Months
Max.Coil O.D.(mm) :
1400
Coil I.D.(mm) :
508
Feed Length(mm) :
~500*
Mandrel Expansion :
Hydrauilc
Reel Motor(kw) :
2.2
Operating Air(Mpa) :
0.49
Description
Automatic feeder straightening machine, Guangdong stainless steel coil stamping feed
www.ruihui.net

The safety measure of the automatic feeder straightening machine is to directly install the safety protection device. The feeder can directly install the safety device in the stamping equipment and the mold. There is also an original safe operation method, which directly uses the manual tool with low labor intensity and flexible use. Just fine.
Factors affecting the processing quality of thin-walled workpieces are:
(1) The clamping force deforms the workpiece, affecting dimensional accuracy and shape accuracy.
(2) The cutting heat causes the workpiece to deform and affects the dimensional accuracy.
(3) The cutting force causes the workpiece to vibrate and deform, affecting the dimensional accuracy,
shape accuracy and surface roughness of the workpiece.
(4) Residual internal stress deforms the workpiece, affecting dimensional accuracy and shape accuracy.

The servo feeding precision is extremely high, with multi-stage, long-step feeding function, the operation and debugging is extremely simple, and the customization is extremely high (various thick plates and yaw type), especially suitable for precision machining occasions.
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed
Auto Coil Feeder Straightener Machine Stainless Steel Coil Stamping Feed

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
