Auto parts stamping processing, 3-in-1 feeder, stamping automatic feeding

www.ruihui.net

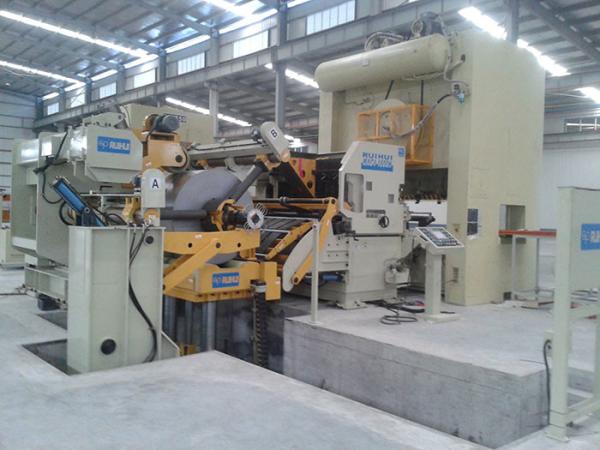

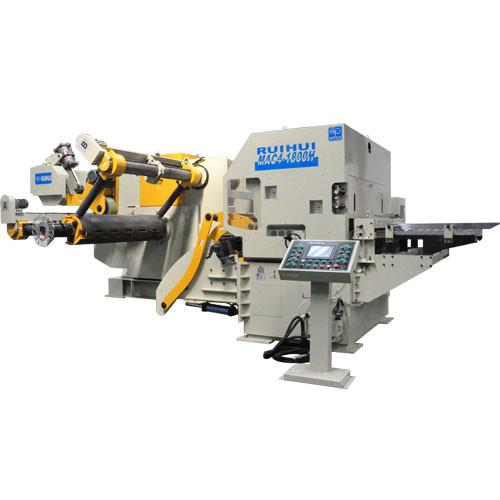

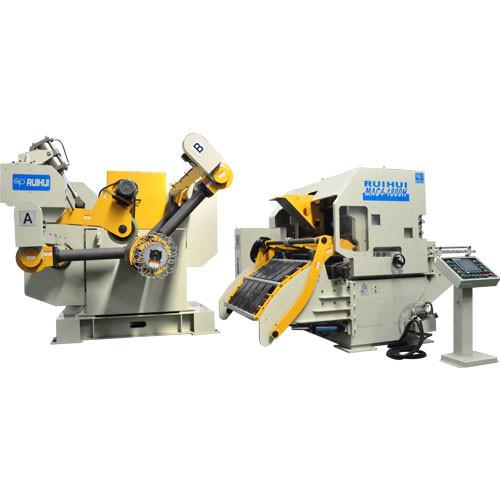

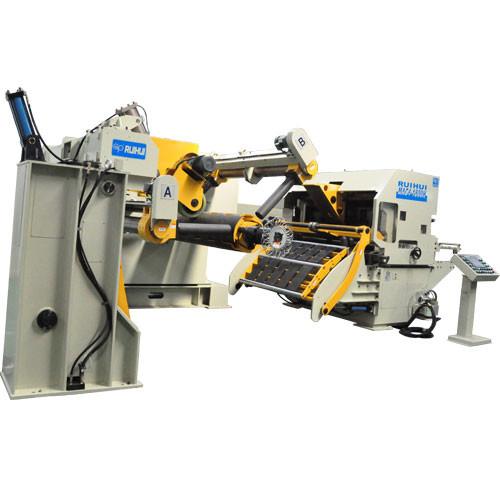

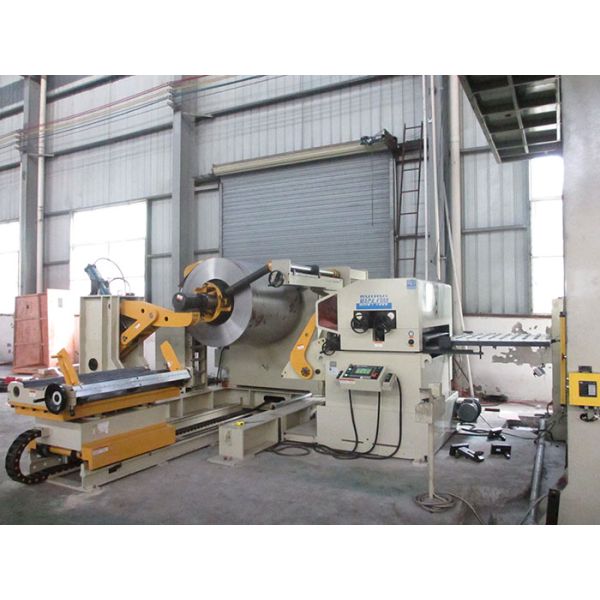

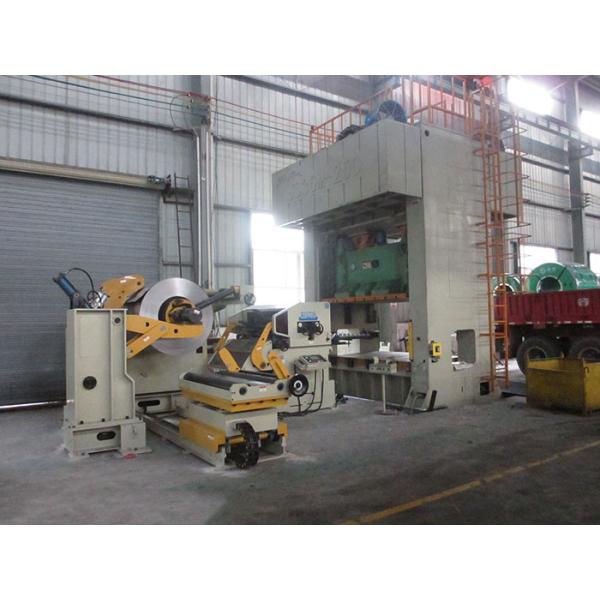

The 3-in-1 feeder uses a computerized NC control system for a more user-friendly design. It is suitable for feeding and correcting various metal sheets.

Designed for space saving and easy operation; suitable for continuous stamping processing of various hardware, electronics, electrical appliances, toys and auto parts, feeding correction, accurate and durable. The material roll device uses hydraulic expansion to feed the material into the die without manual feeding, saving labor and safety.

The use of the 3-in-1 feeder not only saves time and labor, but also greatly reduces labor intensity, and reduces labor costs and saves human resources. The operation of each auxiliary device is powered by oil pressure, air pressure or electricity. The reeling machine adopts cantilever type pressing material, motor transmission control, positive and negative rotation, and hydraulic cylinder holding iron ring, which is easy to operate, easy to maintain and low failure rate.

Instructions for handling 3 in 1 feeder:

1. Safety shoes should be worn to prevent people from being injured while carrying the feeder. Also, in order to avoid damage to the machine and parts in the collision of the wooden box, please use the crane or overweight machine to move from the bottom to move the machine.

2. When the car is in mobile use, you must first hook the chain or cable to the upper end of the machine, or use a crane to move the machine.

3. When the 3-in-1 feeder arrives, please check the quality and specifications of the machine. If there is any damage or other problems during transportation, please contact the company directly.

4. The crane or crane must be able to load the mechanical weight of the specification at least.

Specification:

Model	MAC2-400	MAC2-500	MAC2-600		MAC2-800
Stock Width(mm)	50-400	50-500	50-600		50-800
Stock Thickness(mm)	0.3~3.2	0.3-3.2	0.3-3.2		-3.2
Max.Coil Weight(kg)	3000	3000	3000	5000	5000	7000
Max.Coil O.D.(mm)	1200	1200	1200
Coil I.D.(mm)	8	8	508		508
Feed Length(mm)	~500*	~500*	~500*		~500*
Max. Line Speed(m/min)	16-24	16-24	16-24		16-24
Work Roll Number(pieces)	upper 6 lower 5	upper 6 lower 5	upper 6 lower 5		upper 6 lower 5
Feed Roll Number(set)	1	1	1		1
Main Motor(kw)	AC2.9	AC2.9	AC4.4		AC4.4
Mandrel Expansion	hydraulic	hydraulic	hydraulic		hydraulic
Reel Motor(kw)	1.5	1.5	1.5	2.2	2.2	3.7
Power(V)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49		0.49

Straigtening performance:

tock Thicknees (mm)	Stock Width (mm)
0.3	400	500	600	800
0.4
0.6
0.8
1.0
1.2
1.4
1.6			470	470
1.8			400	400
2.0			360	360
2.3	300	300	300	300
2.5	230	230	230	230
2.8	150	150	150	150
3.2	110	110	110	110

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
