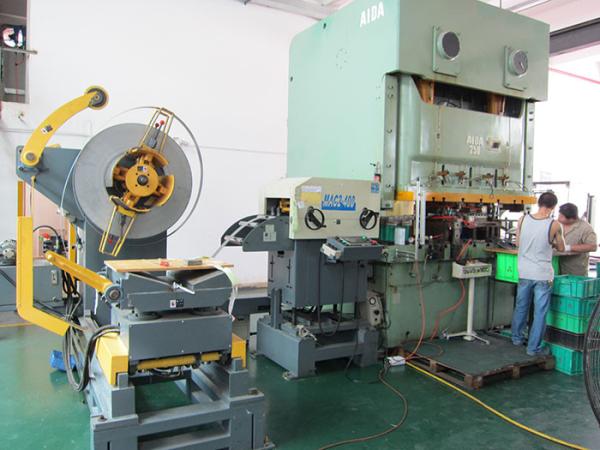

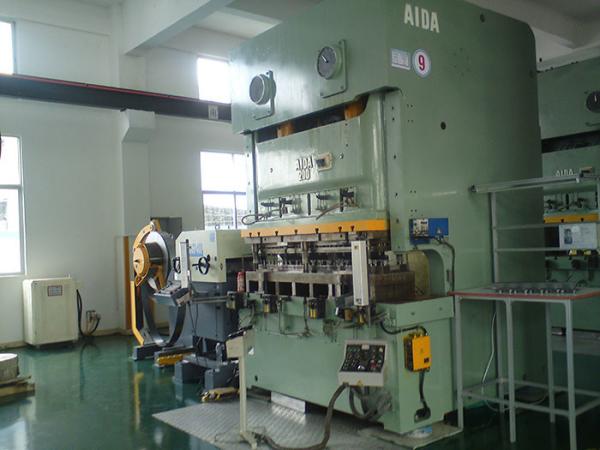

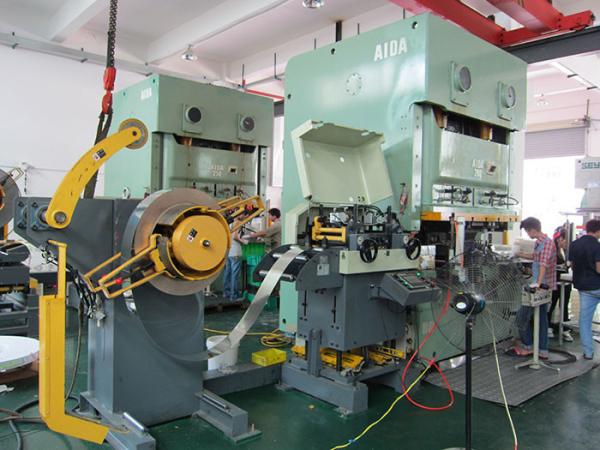

3-in-1 feeder feeding, feeding roller, sheet metal leveling feeder

3-in-1 feeder feeding: the feeding feed arm is raised to a certain position, the rack knob is placed manually, the manual control rack is rotated forward, the material is slowly entered into the feeding arm, and the feeding material pressing arm is clamped. material.

Clicking on the touch screen feeding pull switch, forcing the material to advance to the handpiece, and controlling the material frame to rotate forward. When the material is close to the machine head, the feeding feed arm and the pressing arm are raised, and the material is pressed by the pressing arm. Relax the feed cylinder and level the cylinder to allow material to enter the machine head.

Note: The pressure arm should be kept in an automatic state, otherwise bulk material will appear.

Clamp the feed cylinder, level the cylinder, relax the feed cylinder, make the material pass the machine head, and then adjust the leveling height to clamp the feed cylinder.

Adjustment of each part of the 3-in-1 feeder head

Feed roller pressure adjustment: By adjusting the pressure regulating valve, the upper roller and the lower roller can be prevented from slipping, and the air pressure is controlled at the same time to avoid crushing the material, causing indentation or slipping.

Material Offset: If the material begins to shift incorrectly, you should immediately confirm that the mold is parallel and placed in the center of the table. The material is at right angles and centered into the leveler.

This operation can be measured by the gage. If there is a slight irregularity, it can be slowly positioned by adjusting the left and right positions of the baffle wheel.

Material leveling adjustment: material leveling principle: The leveling drum is arranged in a zigzag pattern. If the flattening roller on the inlet side is lowered, the material is bent along the drum. If the flattening roller on the outlet side is pressed too much, the material Then bend down.

Generally, the inlet side is lowered to a position where the upper and lower flattening roll gaps are 1 to 1.5 mm smaller than the material thickness, and the outlet side is adjusted to be the same as the material gap (ordinary material).

3-in-1 feeder feeding adjustment: When the above operations are completed, the feeding parameters can be set. The specific operation method can be found in the man-machine interface operation mode. After completion, it can enter normal production.
